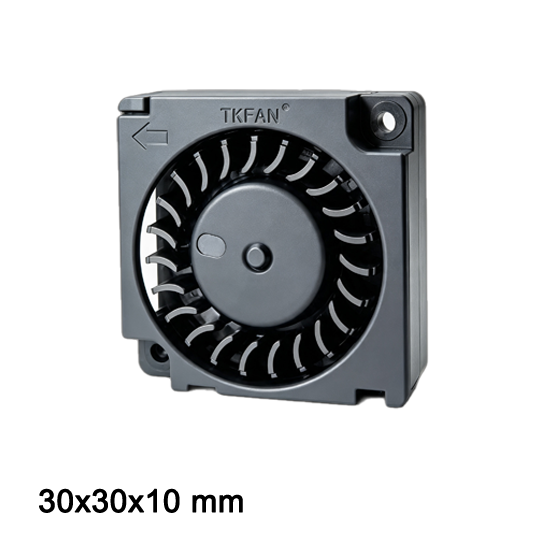

Micro blower BA3010H05X-A
Voltage 5V
8500rpm/min
Max 1.39 cfm,0.05 kpa
Request a Sample
Technical Specifications
Micro blower BA3010-A Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect micro blower for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | ||
| BA3010LL05X | AY | 5 | 1.8~3.6~6.8 | 0.1 | 0.5 | 5500 | 0.025 | 0.90 | 2.27 | 0.089 | 23.4 |
| BA3010L05X | 5 | 1.8~3.6~6.8 | 0.12 | 0.6 | 6000 | 0.030 | 1.07 | 2.86 | 0.113 | 25.0 | |
| BA3010LV05X | 5 | 1.8~3.6~6.8 | 0.13 | 0.65 | 6500 | 0.033 | 1.16 | 3.35 | 0.132 | 26.5 | |
| BA3010M05X | 5 | 1.8~3.6~6.8 | 0.14 | 0.7 | 7000 | 0.035 | 1.23 | 3.91 | 0.154 | 28.7 | |
| BA3010MV05X | 5 | 1.8~3.6~6.8 | 0.16 | 0.8 | 7500 | 0.037 | 1.31 | 4.49 | 0.177 | 30.0 | |
| BA3010VM05X | 5 | 1.8~3.6~6.8 | 0.18 | 0.9 | 8000 | 0.038 | 1.36 | 5.31 | 0.209 | 31.7 | |
| BA3010H05X | 5 | 1.8~3.6~6.8 | 0.2 | 1.0 | 8500 | 0.039 | 1.39 | 5.86 | 0.231 | 33.2 | |
| BA3010LL12X | 12 | 7~13.5 | 0.042 | 0.5 | 5500 | 0.025 | 0.90 | 2.27 | 0.089 | 23.4 | |
| BA3010L12X | 12 | 7~13.5 | 0.05 | 0.6 | 6000 | 0.030 | 1.07 | 2.86 | 0.113 | 25.0 | |
| BA3010LV12X | 12 | 7~13.5 | 0.054 | 0.65 | 6500 | 0.033 | 1.16 | 3.35 | 0.132 | 26.5 | |
| BA3010M12X | 12 | 7~13.5 | 0.058 | 0.7 | 7000 | 0.035 | 1.23 | 3.91 | 0.154 | 28.7 | |
| BA3010MV12X | 12 | 7~13.5 | 0.067 | 0.8 | 7500 | 0.037 | 1.31 | 4.49 | 0.177 | 30.0 | |
| BA3010VM12X | 12 | 7~13.5 | 0.075 | 0.9 | 8000 | 0.038 | 1.36 | 5.31 | 0.209 | 31.7 | |
| BA3010H12X | 12 | 7~13.5 | 0.083 | 1.0 | 8500 | 0.039 | 1.39 | 5.86 | 0.231 | 33.2 | |
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
