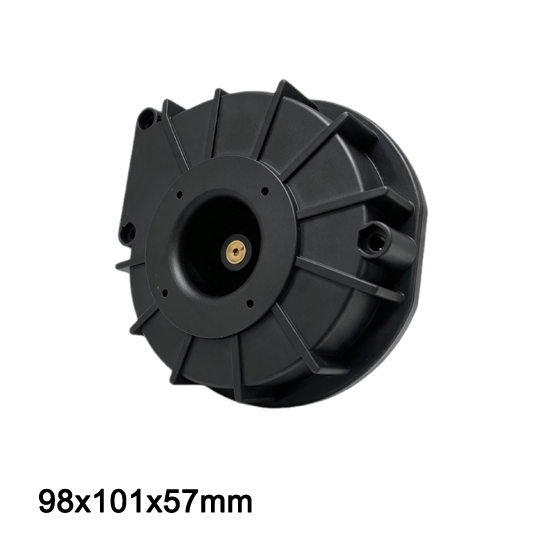

Low operating voltage Blower U97LM-005KK

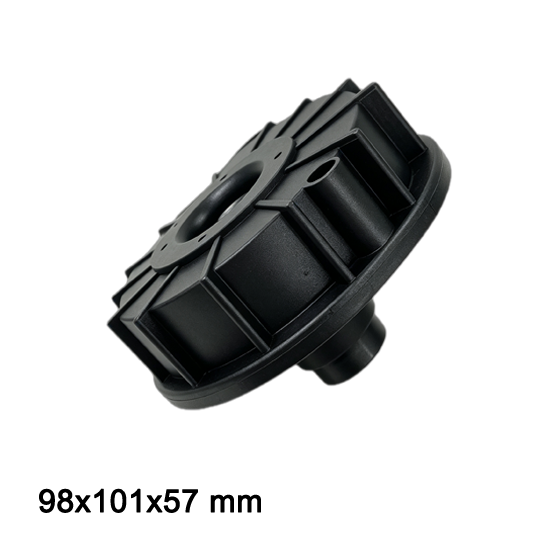

Low operating voltage Blower U97LM-005KK 2.png

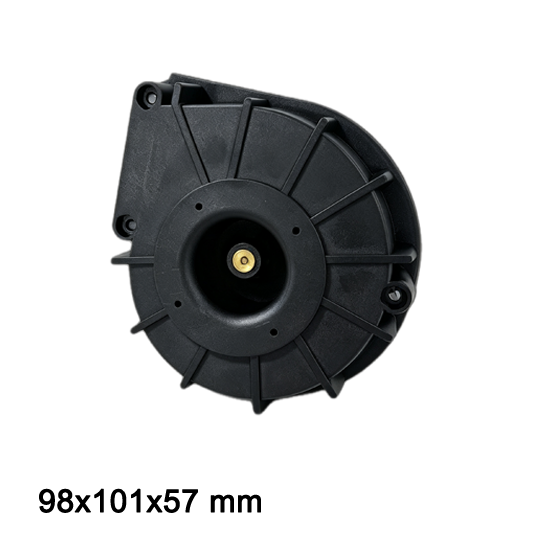

Low operating voltage Blower U97LM-005KK 1.png

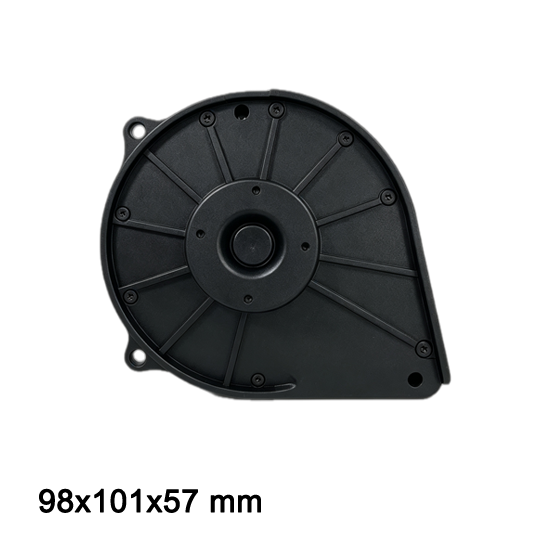

Low operating voltage Blower U97LM-005KK 3.png
Low operating voltage Blower U97LM-005KK
Low operating voltage Blower U97LM-005KK 2.png
Low operating voltage Blower U97LM-005KK 1.png
Low operating voltage Blower U97LM-005KK 3.png

Low operating voltage Blower U97LM-005KK

Voltage 5V
8500rpm/min

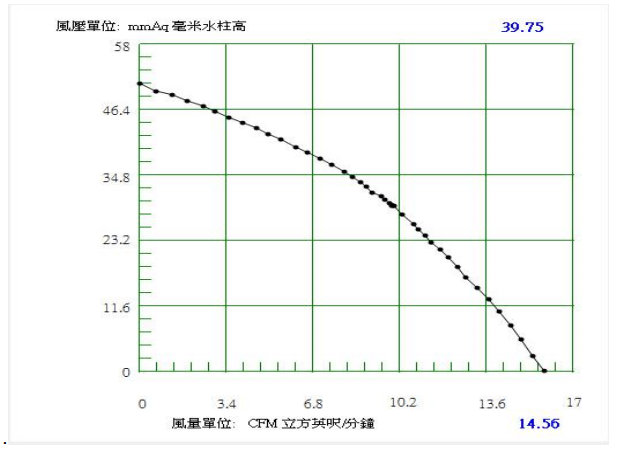

Max 15.9 cfm,0.5 kpa

Request a Sample
Download Datasheet

Technical Specifications

ModelU97LM-005KK

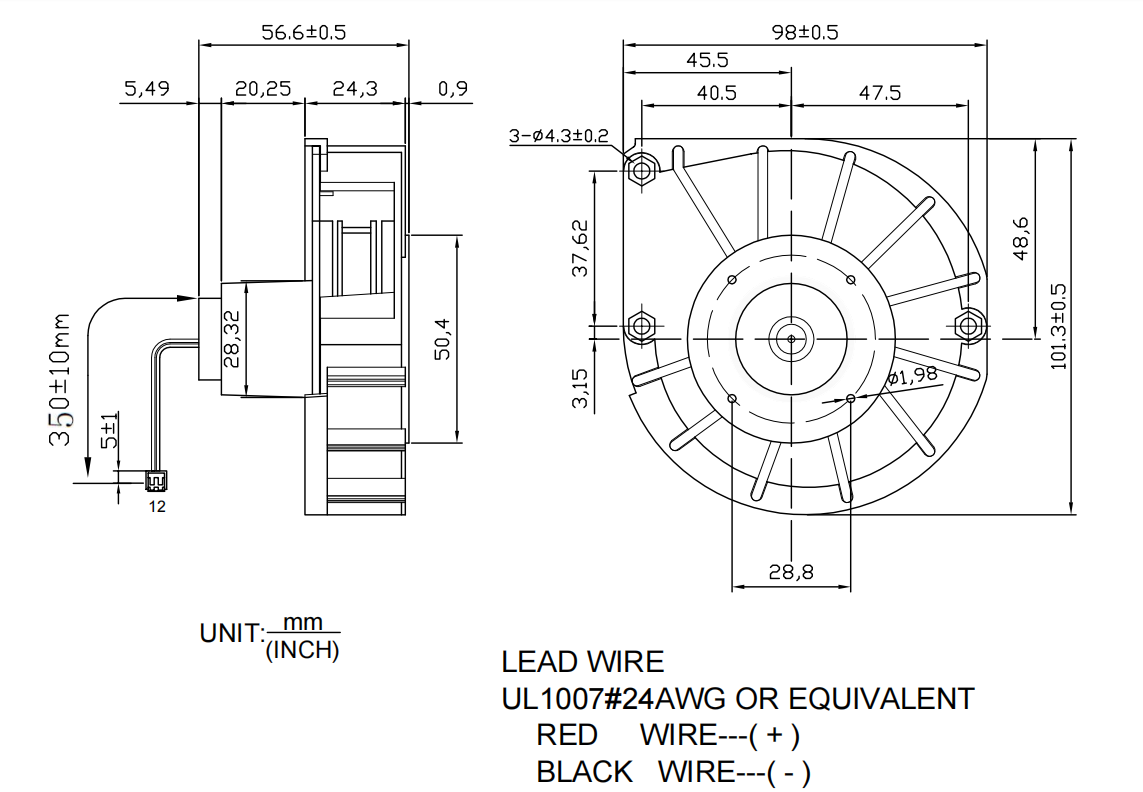

Size98*101*57 mm
Operating Voltage5 VDC
Rated Current0.62 Amp
Rated Speed8500 RPM
Maximum Flow Rate15.9 CFM
Maximum Static Pressure0.5 kPa





Operation video of 5V blower U97LM-005KK

GET A QUOTE

Looking for different sizes or specifications?

Explore our full range of Low operating voltage Blower, or choose from similar models below.

Low operating voltage Blower

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
