Low operating voltage Blower BA5010HV05B-D
Low operating voltage Blower BA5010HV05B-D
Voltage 5V
11000rpm/min
Max6.1 cfm,0.26 kpa
Request a Sample
Download Datasheet

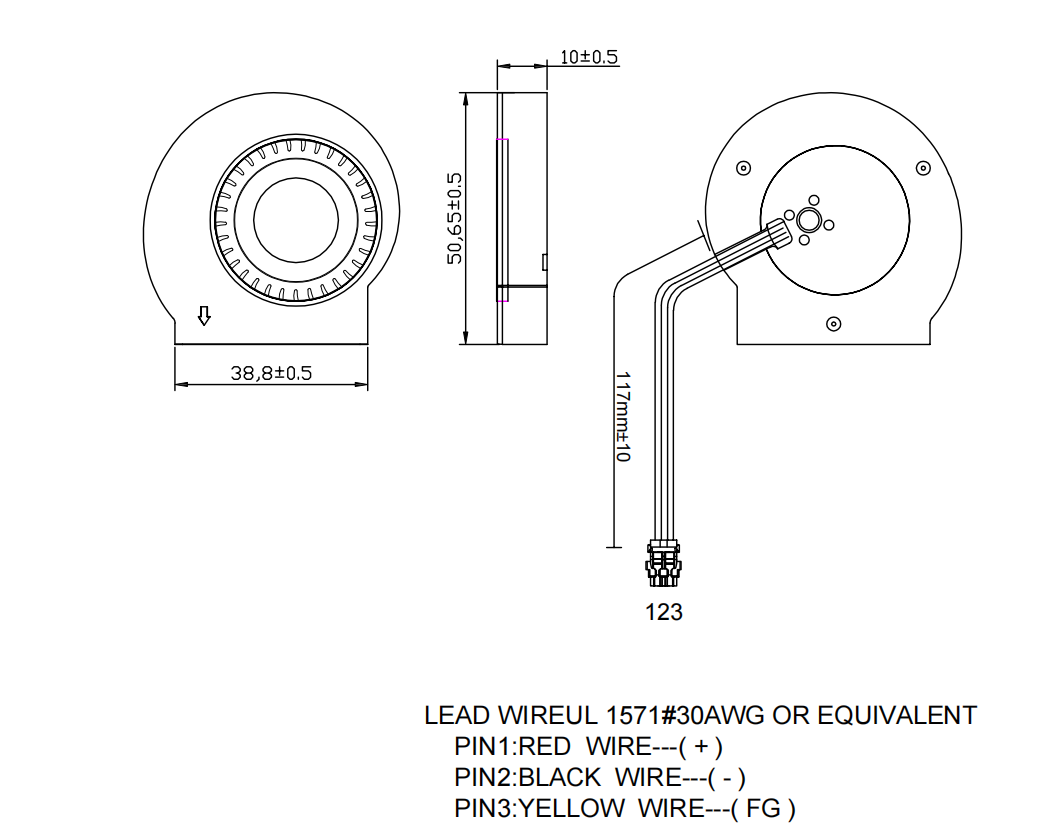

Precision Miniature Dimensions (50x38.8x10mm)
Specially engineered with a unique 50x38.8mm footprint and a ultra-slim 10mm profile, this micro blower perfectly integrates into narrow air ducts and highly restricted internal hardware spaces.
5V Low Operating Voltage Optimization
Optimized for a 5V DC low operating voltage startup, making it highly compatible with USB ports, battery-operated systems, and portable electronic devices to achieve smart energy conservation.

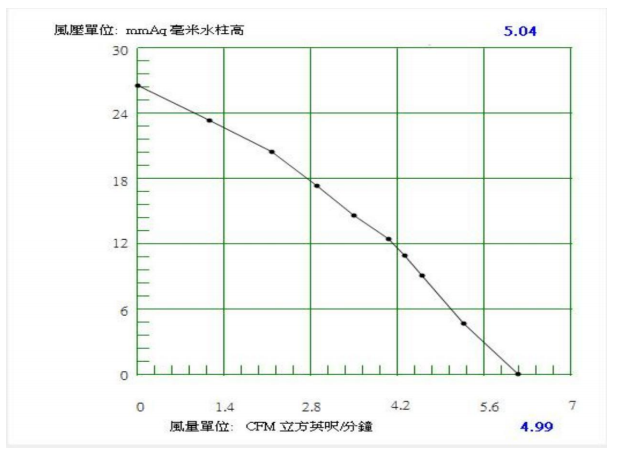

High Static Pressure Centrifugal Output
Utilizing an advanced centrifugal impeller design, the BA5010HV05B-D generates high static pressure to forcefully push airflow through dense components and conquer high system resistance.
Aerodynamic Silent Operation
Precision-balanced blades combined with an optimized scroll housing guide the airflow smoothly, minimizing acoustic noise and structural vibration for quiet, distraction-free environments.
Technical Specifications
Looking for different sizes or specifications?
Explore our full range of Low operating voltage Blower, or choose from similar models below.
Low operating voltage Blower
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
