Low operating voltage Blower BA4510H05B-A
Low operating voltage Blower BA4510H05B-A

Low operating voltage Blower BA4510H05B-A

Voltage 5V
8500rpm/min
Max3.7 cfm,0.23 kpa

Request a Sample
Download Datasheet

Technical Specifications

ModelBA4510H05B-A
Size45*45*10.5 mm
Operating Voltage5 VDC
Rated Current
0.26 Amp
Rated Speed8500 RPM
Maximum Flow Rate3.7 CFM
Maximum Static Pressure0.23 kpa


structure drawing of BA1804L3.3X

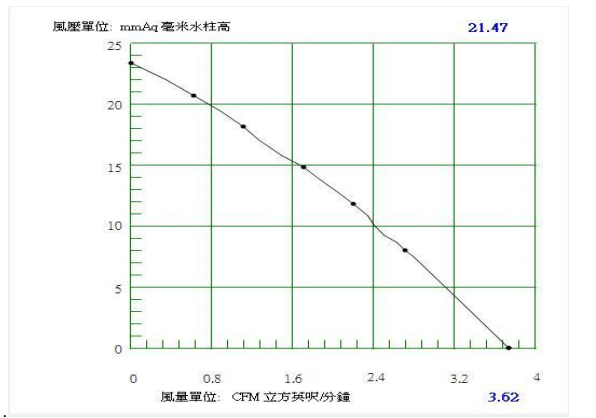

PQ curve for BA1804L3.3X

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
