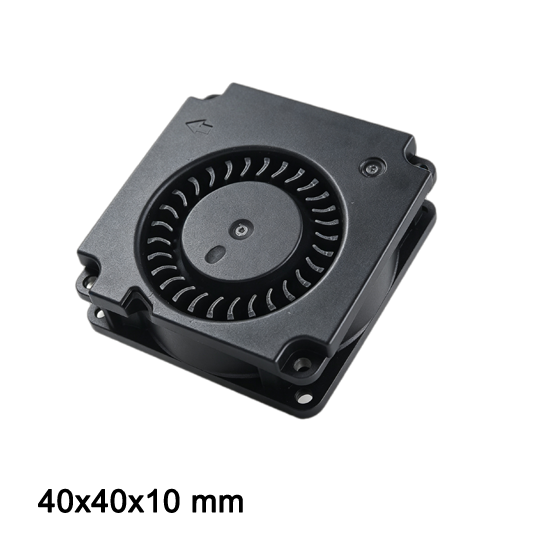

Low operating voltage Blower BA4010HV05B-A
Low operating voltage Blower BA4010HV05B-A
Voltage 5.7V
14700rpm/min
Max 4.3 cfm,0.29 kpa
Request a Sample
Download Datasheet

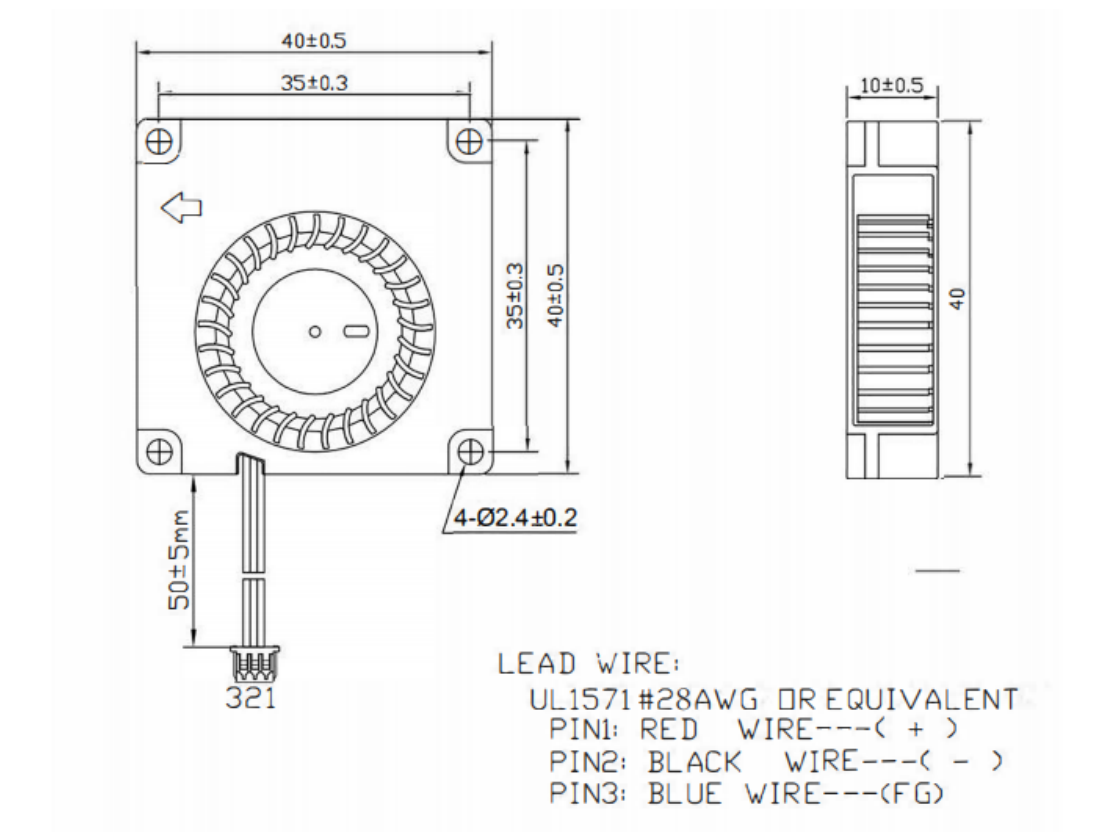

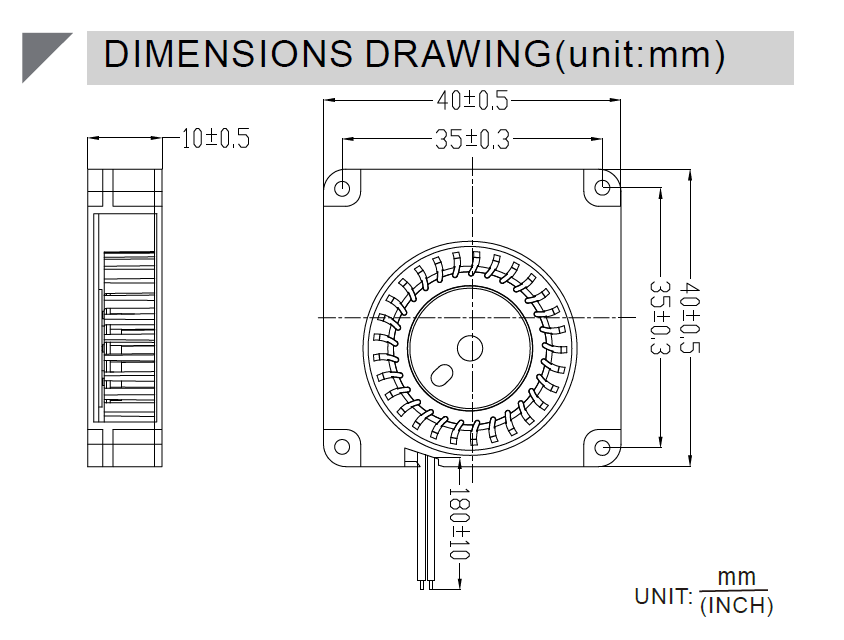

Standard Micro Dimensions (40x40x10mm)
Featuring the industry-standard 4010 footprint with an ultra-slim 10mm profile, this micro blower easily integrates into compact air ducts and space-constrained electronic housings.
5V Low Operating Voltage Efficiency
Optimized for a 5V DC low-voltage startup, it provides perfect compatibility with USB interfaces, power banks, and battery-operated smart hardware for energy-saving cooling.
High Static Pressure Centrifugal Flow
Engineered with an advanced centrifugal impeller, the BA4010HV05B-A delivers concentrated directional airflow and high static pressure to effectively overcome dense internal resistance.
Acoustically Optimized Low Noise
Precision-balanced blades paired with an optimized scroll housing guide the airflow smoothly, reducing aerodynamic turbulence and structural vibration for quiet operation.
Technical Specifications

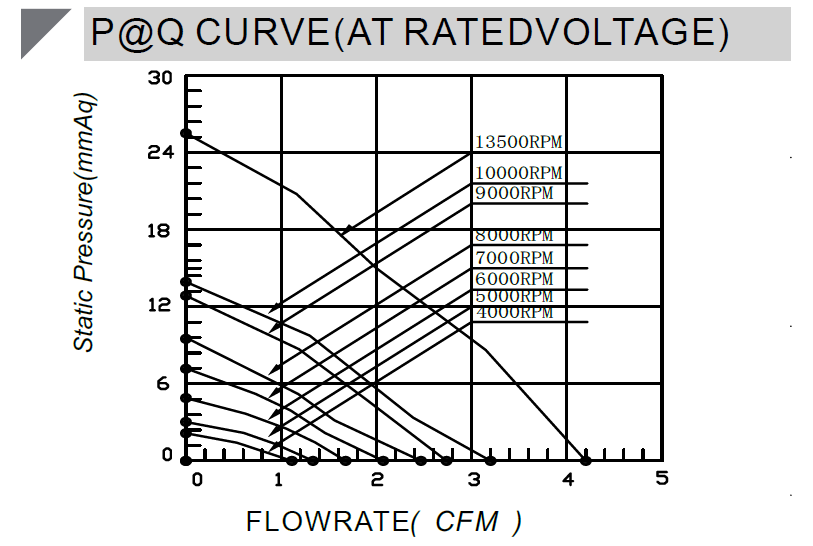

Low operating voltage Blower BA4010-A Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect air blower for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | |
| BA4010LL05X | AY | 5 | 1.8~3.6~6.8 | 0.06 | 0.3 | 4000 | 0.031 | 1.09 | 2.15 | 0.085 | 18.9 |
| BA4010L05X | 5 | 1.8~3.6~6.8 | 0.11 | 0.55 | 5000 | 0.038 | 1.34 | 3.03 | 0.119 | 23.3 | |
| BA4010M05X | 5 | 1.8~3.6~6.8 | 0.15 | 0.75 | 6000 | 0.046 | 1.64 | 4.89 | 0.193 | 26.0 | |
| BA4010H05X | 5 | 1.8~3.6~6.8 | 0.21 | 1.05 | 7000 | 0.057 | 2.03 | 7.17 | 0.282 | 29.3 | |
| BA4010HH05X | 5 | 1.8~3.6~6.8 | 0.25 | 1.25 | 8000 | 0.069 | 2.42 | 9.50 | 0.374 | 32.1 | |
| BA4010VH05X | 5 | 1.8~3.6~6.8 | 0.29 | 1.45 | 9000 | 0.078 | 2.76 | 12.86 | 0.506 | 35.0 | |
| BA4010HV05X | 5 | 1.8~3.6~6.8 | 0.35 | 1.75 | 10000 | 0.090 | 3.2 | 13.93 | 0.548 | 37.0 | |
| BA4010HHV05X | 5 | 1.8~3.6~6.8 | 0.44 | 2.2 | 13500 | 0.105 | 3.7 | 23.61 | 0.93 | 47.9 | |
| BA4010LL12X | 12 | 7~13.5 | 0.025 | 0.3 | 4000 | 0.031 | 1.09 | 2.15 | 0.085 | 18.9 | |
| BA4010L12X | 12 | 7~13.5 | 0.046 | 0.55 | 5000 | 0.038 | 1.34 | 3.03 | 0.119 | 23.3 | |
| BA4010M12X | 12 | 7~13.5 | 0.062 | 0.75 | 6000 | 0.046 | 1.64 | 4.89 | 0.193 | 26.0 | |
| BA4010H12X | 12 | 7~13.5 | 0.09 | 1.05 | 7000 | 0.057 | 2.03 | 7.17 | 0.282 | 29.3 | |
| BA4010HH12X | 12 | 7~13.5 | 0.1 | 1.25 | 8000 | 0.069 | 2.42 | 9.50 | 0.374 | 32.1 | |
| BA4010VH12X | 12 | 7~13.5 | 0.12 | 1.45 | 9000 | 0.078 | 2.76 | 12.86 | 0.506 | 35.0 | |
| BA4010HV12X | 12 | 7~13.5 | 0.146 | 1.75 | 10000 | 0.090 | 3.2 | 13.93 | 0.548 | 37.0 | |
| BA4010HHV12X | 12 | 7~13.5 | 0.183 | 2.2 | 13500 | 0.105 | 3.7 | 23.61 | 0.93 | 47.9 | |
* Note: This video demonstrates the operation of the low operating voltage 40*40*10mm blower.
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
