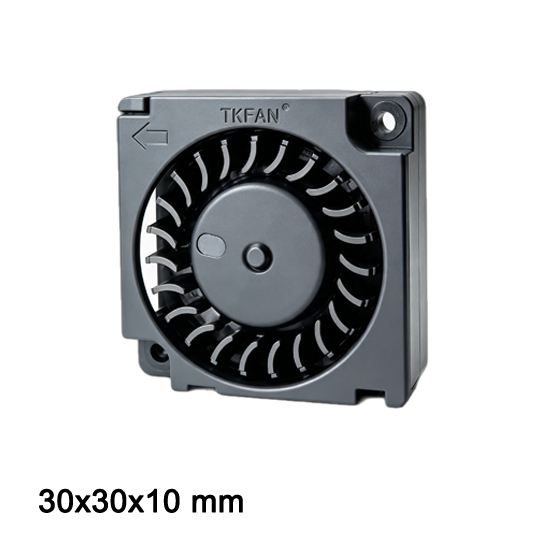

Low operating voltage Blower BA3010H05B-A
Low operating voltage Blower BA3010H05B-A
Voltage 5V
8500rpm/min
Max 1.39 cfm,0.05 kpa
Request a Sample
Structure Drawing
Technical Specifications

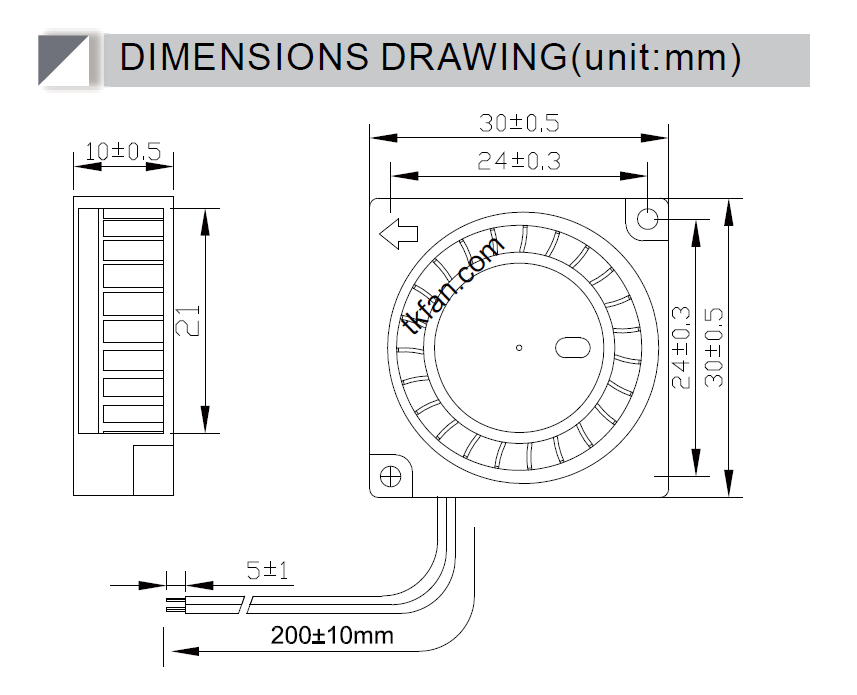

Low operating voltage Blower BA3010H05B-A Mechanical Structure Diagram
Precision Engineering: This mechanical structure drawing illustrates the precise 30x30x10mm dimensions, mounting hole locations, and outlet configuration of the BA3010H05B-A blower.
Designed for space-constrained electronics, its ultra-thin profile and robust housing ensure seamless integration into compact devices while maintaining structural durability and minimal vibration.

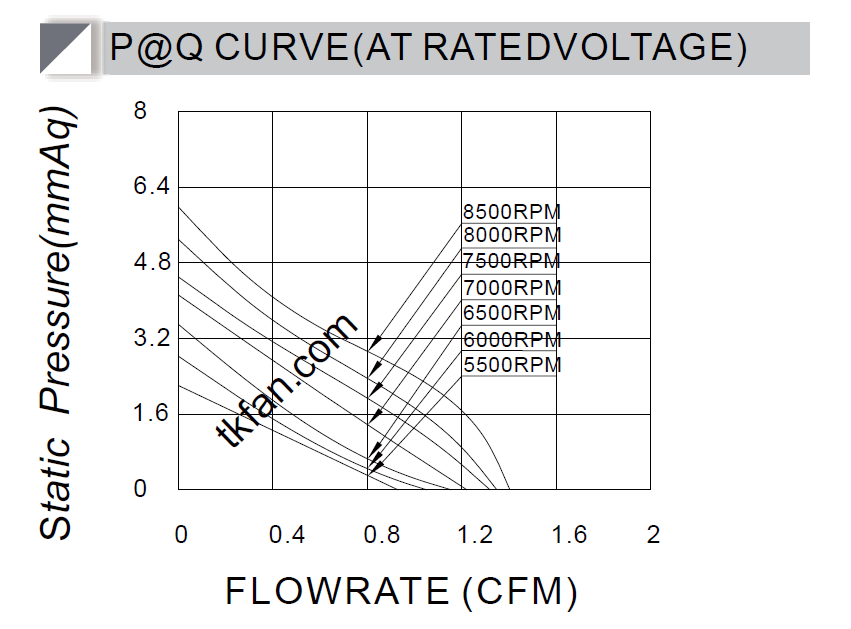

Low operating voltage Blower BA3010H05B-A PQ curve
Performance Analysis: The PQ (Pressure-Flow) curve characterizes the aerodynamic performance of the BA3010H05B-A blower across varying operational points.
It clearly demonstrates the relationship between static pressure (mmH2O / InH2O) and airflow (CFM / M³/min), helping engineers evaluate high-efficiency cooling capabilities under different system backpressures and voltage inputs.
Low operating voltage BA3010-A Selection Guide
Compare voltage, size, speed, airflow, and static pressure to select the most suitable low-operating-voltage blower for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | ||
| BA3010LL05B | AY | 5 | 1.8~3.6~6.8 | 0.1 | 0.5 | 5500 | 0.025 | 0.90 | 2.27 | 0.089 | 23.4 |
| BA3010L05B | 5 | 1.8~3.6~6.8 | 0.12 | 0.6 | 6000 | 0.030 | 1.07 | 2.86 | 0.113 | 25.0 | |
| BA3010LV05B | 5 | 1.8~3.6~6.8 | 0.13 | 0.65 | 6500 | 0.033 | 1.16 | 3.35 | 0.132 | 26.5 | |
| BA3010M05B | 5 | 1.8~3.6~6.8 | 0.14 | 0.7 | 7000 | 0.035 | 1.23 | 3.91 | 0.154 | 28.7 | |
| BA3010MV05B | 5 | 1.8~3.6~6.8 | 0.16 | 0.8 | 7500 | 0.037 | 1.31 | 4.49 | 0.177 | 30.0 | |
| BA3010VM05B | 5 | 1.8~3.6~6.8 | 0.18 | 0.9 | 8000 | 0.038 | 1.36 | 5.31 | 0.209 | 31.7 | |
| BA3010H05B | 5 | 1.8~3.6~6.8 | 0.2 | 1.0 | 8500 | 0.039 | 1.39 | 5.86 | 0.231 | 33.2 | |
| BA3010LL12B | 12 | 7~13.5 | 0.042 | 0.5 | 5500 | 0.025 | 0.90 | 2.27 | 0.089 | 23.4 | |
| BA3010L12B | 12 | 7~13.5 | 0.05 | 0.6 | 6000 | 0.030 | 1.07 | 2.86 | 0.113 | 25.0 | |
| BA3010LV12B | 12 | 7~13.5 | 0.054 | 0.65 | 6500 | 0.033 | 1.16 | 3.35 | 0.132 | 26.5 | |
| BA3010M12B | 12 | 7~13.5 | 0.058 | 0.7 | 7000 | 0.035 | 1.23 | 3.91 | 0.154 | 28.7 | |
| BA3010MV12B | 12 | 7~13.5 | 0.067 | 0.8 | 7500 | 0.037 | 1.31 | 4.49 | 0.177 | 30.0 | |
| BA3010VM12B | 12 | 7~13.5 | 0.075 | 0.9 | 8000 | 0.038 | 1.36 | 5.31 | 0.209 | 31.7 | |
| BA3010H12B | 12 | 7~13.5 | 0.083 | 1.0 | 8500 | 0.039 | 1.39 | 5.86 | 0.231 | 33.2 | |
Product Demonstration: 30x30x10mm Micro Blower in Action
Live Performance Showcase: Watch this comprehensive video demonstration highlighting the operational stability, low-noise profile, and high airflow output of our 30×30×10mm micro centrifugal blower series.
This video provides a close-up look at the blower running under different test conditions, offering valuable visual reference for electronics design engineers, thermal management specialists, and R&D teams looking for reliable cooling solutions.
Looking for different sizes or specifications?
Explore our full range of Low operating voltage Blower, or choose from similar models below.
Low operating voltage Blower
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
