5V High speed low operating voltage blower BA1804H05B-A
5V High speed low operating voltage blower BA1804H05B-A
Voltage 5V
20000rpm/min
Max 0.40 cfm,0.097 kpa
Request a Sample
Ultra-thin & Compact Design
18mm ultra-slim body with mini size, takes up very little space. Customized for projectors, handheld devices, micro instruments and other compact spaces, easy for integration.
Long-lasting Brushless Motor
Adopts DC brushless motor with no brush wear, ensuring smooth and interference-free operation. Supports long-time continuous working with longer service life.
High Static Pressure Centrifugal Airflow
Turbo centrifugal structure provides stronger wind pressure and better air concentration, delivering efficient directional cooling to quickly remove internal heat.
Industrial Grade Reliability
Made of high temperature-resistant materials and precision bearings, shockproof and wide-temperature resistant. Widely used in medical, communication, automotive, consumer electronics and more.
Technical Specifications

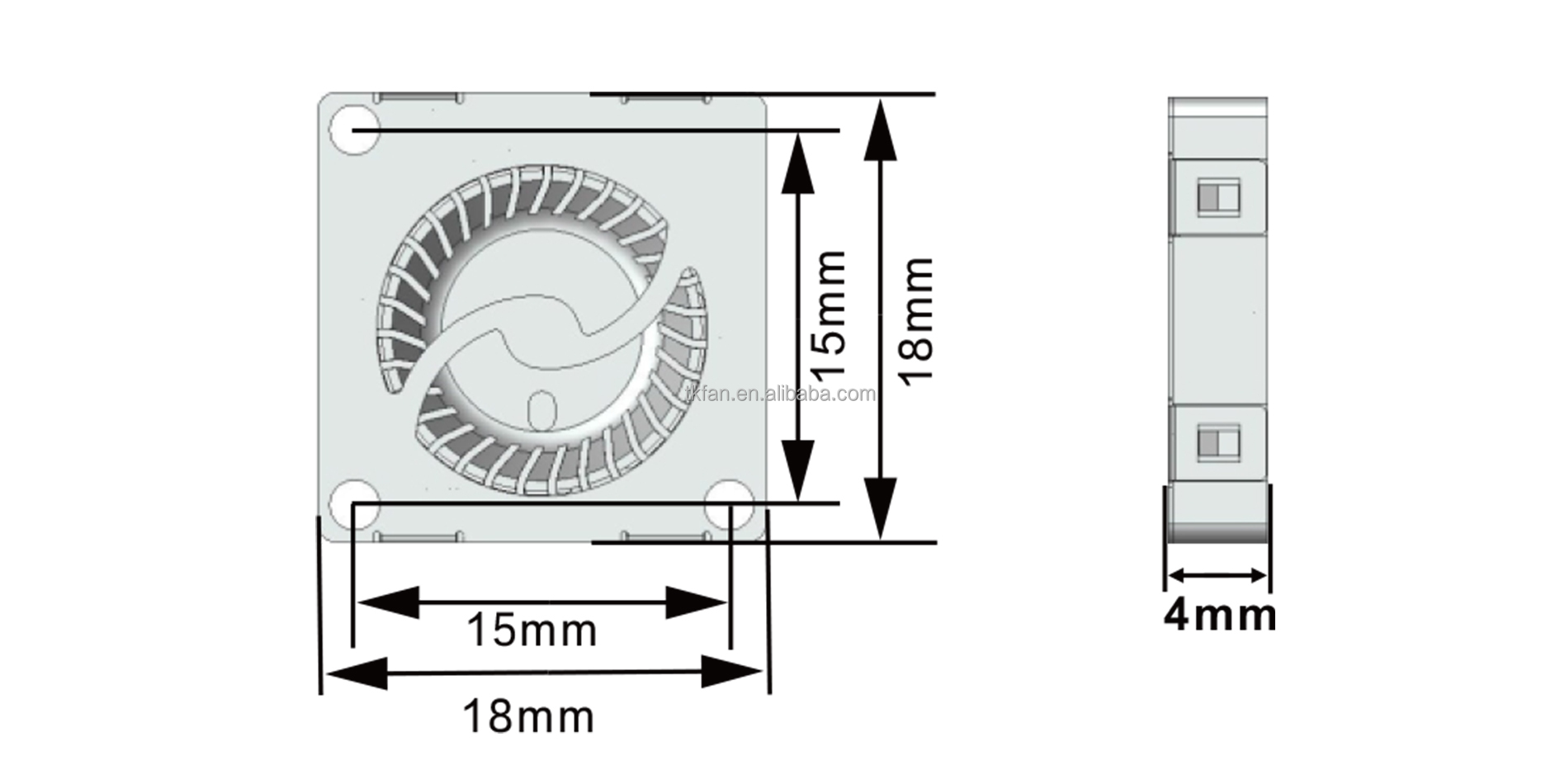

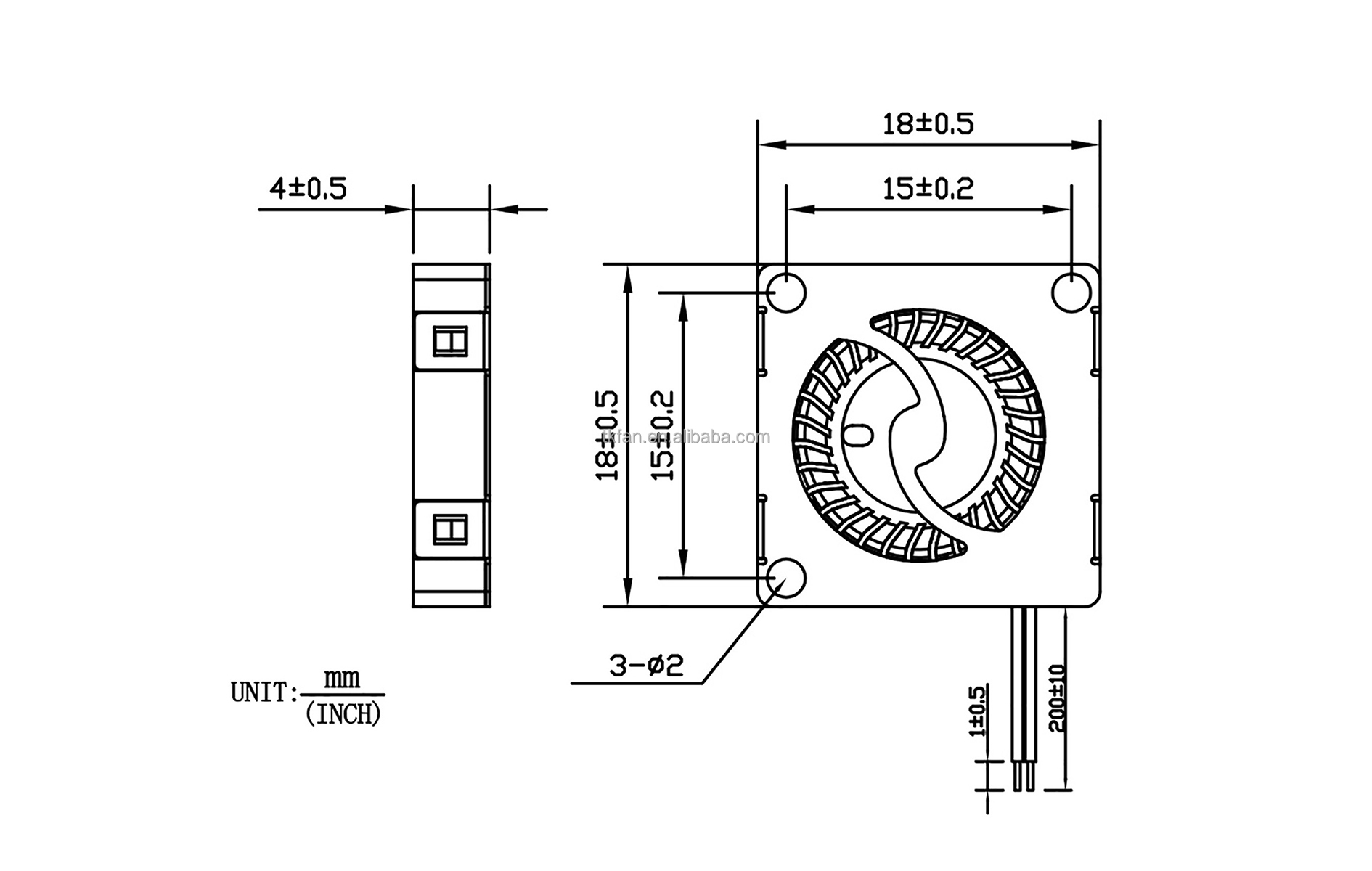

Low Operating Voltage Blower BA1804-A Dimensions Drawing
Detailed mechanical structural drawing and dimensional layout for the Low Operating Voltage Blower BA1804-A series, illustrating mounting points, overall footprint, and air outlet dimensions for seamless system integration.
Low Operating Voltage Blower BA1804-A Specifications
Technical parameters for the BA1804-A series low voltage blowers, detailing electrical inputs, operational ranges, rotational speeds, maximum airflow, peak static pressures, and noise levels.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | M3/min | CFM | mmH2O | InH2O | dB-A | ||
| PART.NO. | AY | VDC | VDC | Amp | Watt | R.P.M | M3/min | CFM | mmH2O | InH2O | dB-A |
| BA1804L3.3X | 3.3 | 2 ~6 | 0.03 | 0.1 | 10000 | 0.004 | 0.14 | 3.0 | 0.12 | 19.0 | |
| BA1804L05X | 5 | 2 ~6 | 0.04 | 0.2 | 13000 | 0.006 | 0.2 | 6.0 | 0.24 | 21.7 | |
| BA1804H05X | 5 | 2 ~6 | 0.085 | 0.425 | 20000 | 0.011 | 0.4 | 9.7 | 0.38 | 36.5 | |
