High pressure blower BA9080H24B-A-Integrated
Integrated driver 24v
48000rpm/min
Max 72cfm,18kpa
Ultra-High Pressure & Massive Airflow
Experience industrial-grade pneumatic power engineered for heavy-duty applications requiring maximum air compression and consistent delivery.
Space-Saving Integrated Drive Design
Enjoy a plug-and-play experience with an advanced integrated motor driver that eliminates external clutter and simplifies installation.
Smart 24V Intelligent Control
Achieve precise, energy-efficient performance with responsive 24V DC logic tailored for modern automated systems.
Whispering Silence & Low Vibration
Upgrade to a more comfortable workspace with cutting-edge noise-reduction technology that doesn't sacrifice raw power.
Technical Specifications

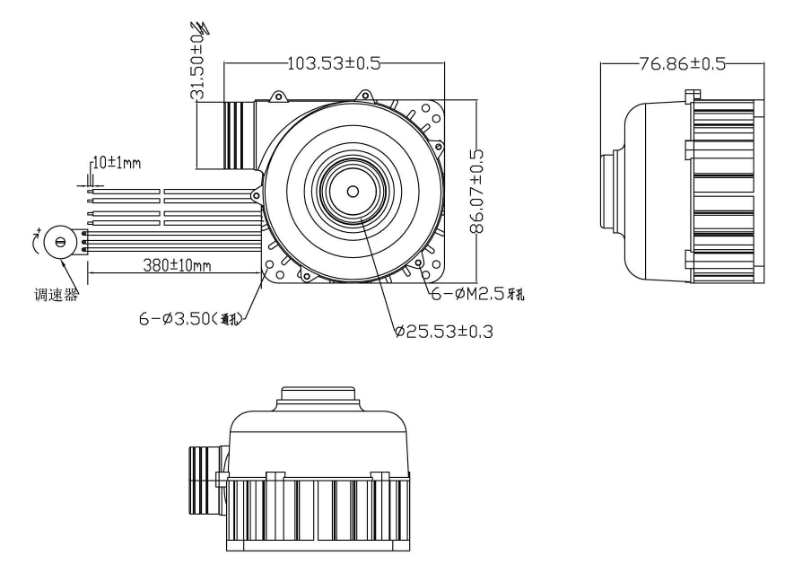

High pressure blower BA9080H24B-A-Integrated Mechanical Structure Diagram
This mechanical structure schematic outlines the precise physical dimensions, aerodynamic flow channels, and compact housing layout of the high-pressure BA9080H24B-A blower. Designed with precision tolerances and robust structural integration, it guarantees minimal turbulence, high mechanical stability, and smooth installation into demanding industrial pneumatic and medical equipment.

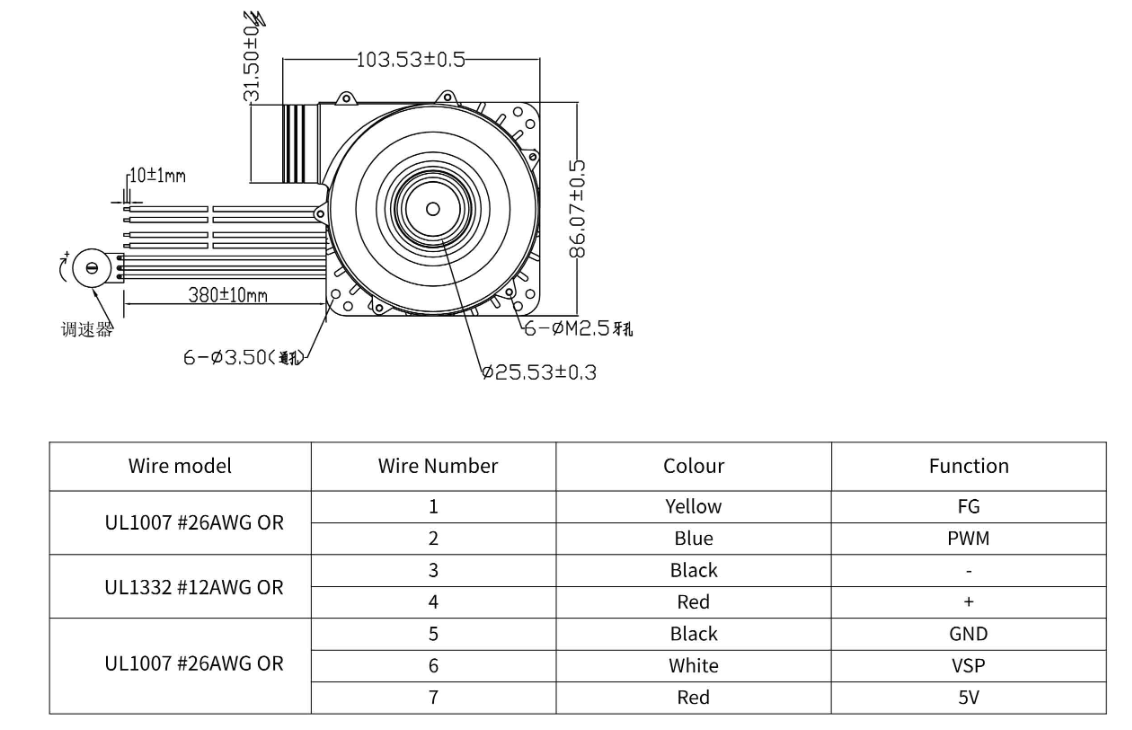

High pressure blower BA9080H24B-A-Integrated Electrical Connection Diagram
The electrical connection diagram provides clear, standardized pinout guidelines for power supply inputs, PWM speed control, and tachometer signal feedback. Following this schematic ensures correct integration with internal brushless motor drivers, protecting the system against wiring faults and allowing precise dynamic performance tuning in high-pressure operations.

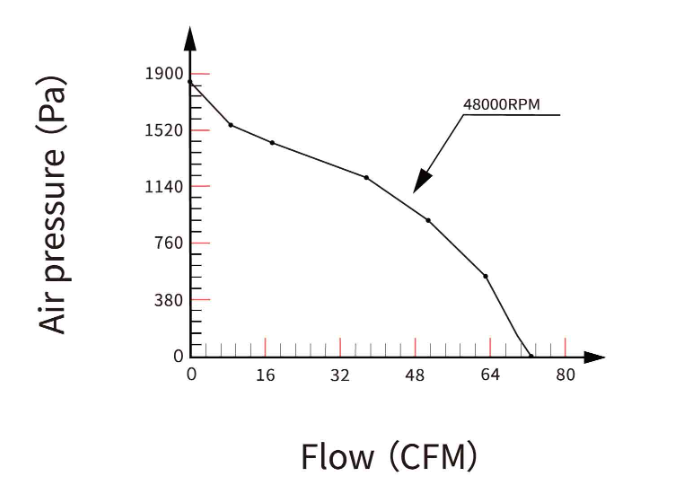

High pressure blower BA9080H24B-A-Integrated P-Q Curve
The Pressure-Flow (P-Q) performance curve details the robust static pressure and airflow delivery characteristics of the high-pressure BA9080H24B-A blower across varying system resistance thresholds. Engineers can leverage this comprehensive curve to optimize matching for high-resistance applications such as fuel cells, air cushions, and precision analytical instruments.
Watch Video: Practical operation and user guide for the BA9080H24B waterproof 24V DC air blower. Learn how to connect, run, and optimize its performance in your application[cite: 3].
