High pressure blower BA8060H24B-E-Unintegrated
High pressure blower BA8060H24B-E-Unintegrated
Non-integrated driver 24v
48000rpm/min
Max 25cfm,18kpa
Extreme High-Pressure Output
Engineered specifically to overcome high resistance, delivering powerful, concentrated static pressure and high airflow to maintain optimal cooling even in tightly packed or restricted systems.
Flexible Unintegrated Design
The standalone, unintegrated configuration gives engineers and system designers maximum flexibility to pair the blower with their own custom control circuitry or specialized drivers.
Compact & Efficient Footprint
Maximizes space efficiency by delivering massive thermal performance within a streamlined, space-saving layout—ideal for modern, compact machinery.
Versatile Industrial Applications
A highly adaptable thermal solution perfectly suited for high-stakes environments, including medical ventilators, fuel cell ventilation, air purification, and precise factory automation.
Technical Specifications

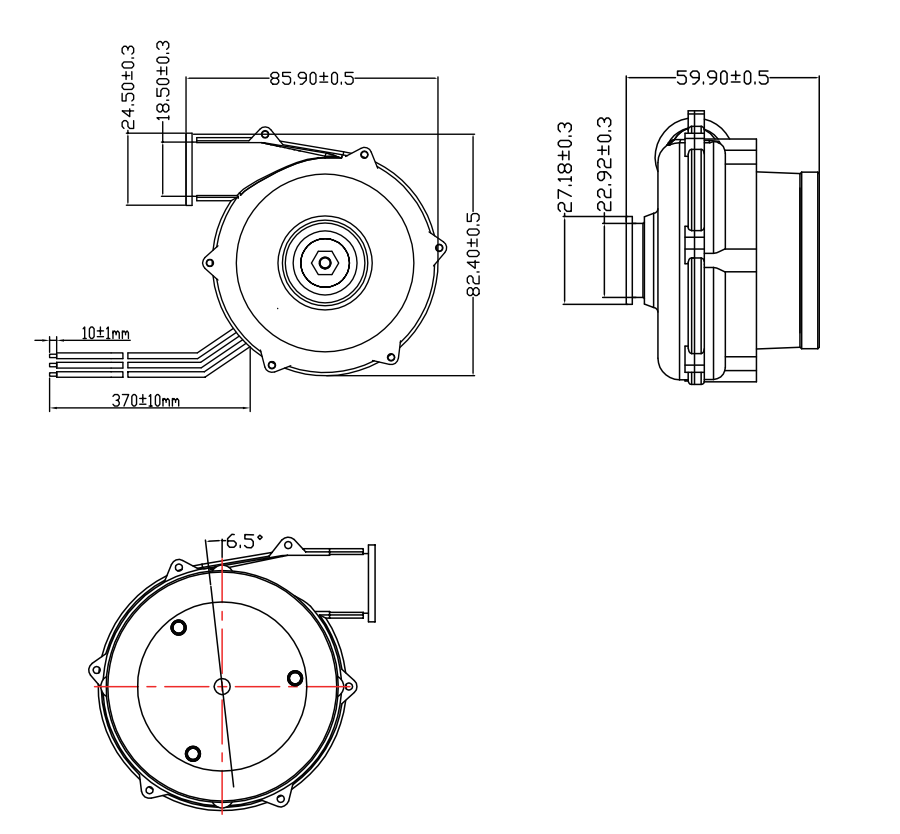

High pressure blower BA8060H24B-E-Unintegrated Mechanical Structure Diagram
The unintegrated mechanical structure diagram of the High Pressure Blower BA8060H24B-E highlights its precision-engineered architecture, tailored specifically for demanding high-pressure pneumatic applications. Its robust scroll casing and optimized internal fluid channels minimize turbulence and pressure loss, ensuring superior structural integrity.
Manufactured with high-grade industrial materials, this modular design offers excellent vibration resistance, exceptional durability, and seamless mechanical integration into complex automated systems and advanced industrial equipment.

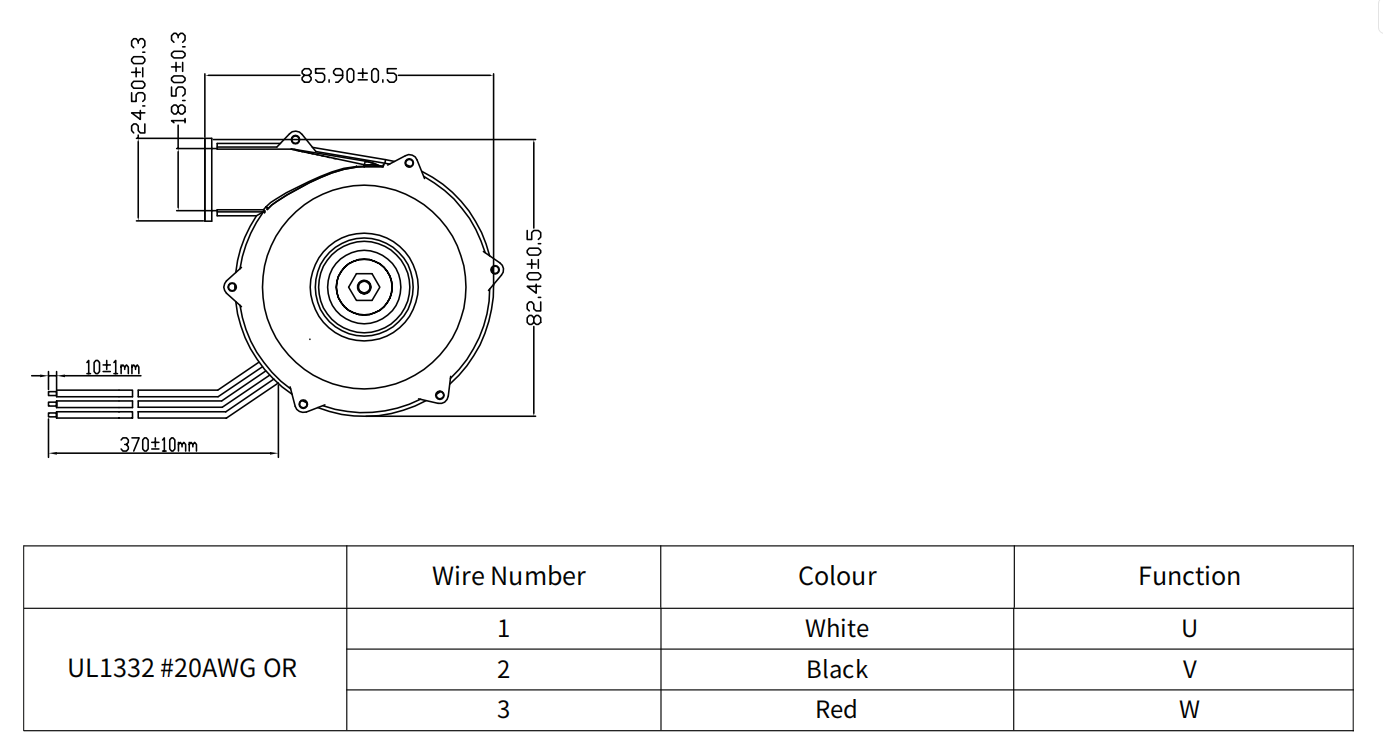

High pressure blower BA8060H24B-E-Unintegrated Electrical Connection Diagram
The electrical connection diagram for the unintegrated BA8060H24B-E model outlines clear terminal definitions, wiring guidelines, and interface specifications required for safe and efficient power distribution.
Engineered to support standard DC power supplies alongside advanced PWM speed control architectures, it features robust internal protection circuits against voltage surges and reverse polarity, ensuring dependable, uninterrupted operation.

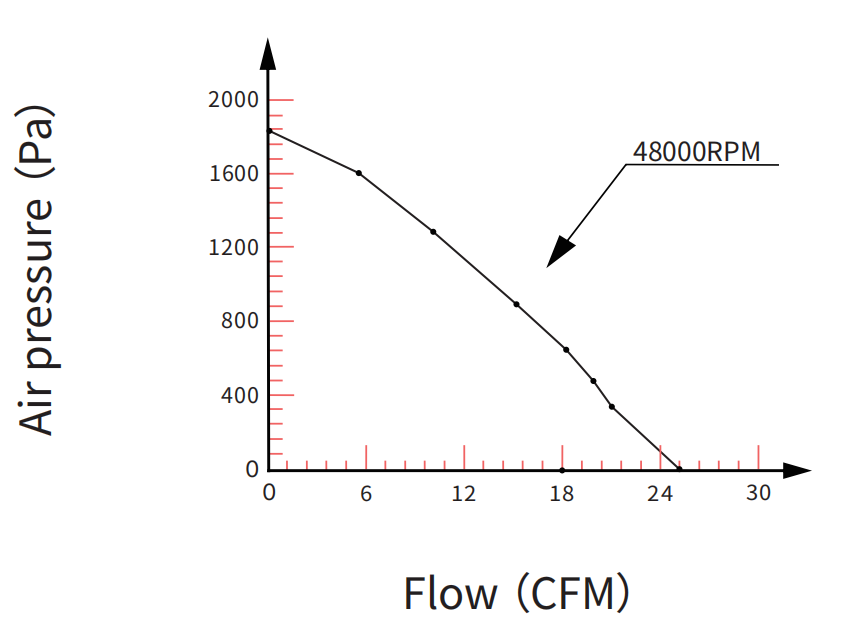

High pressure blower BA8060H24B-E-Unintegrated P-Q Curve
The Pressure-Flow (P-Q) performance curve illustrates the exceptional pneumatic capability and high static pressure output of the BA8060H24B-E blower. It demonstrates how the unit sustains stable airflow volume even when operating against heavy system backpressure and restrictive pathways.
This comprehensive performance chart gives engineers critical metrics to determine optimal operating points, ensuring maximum aerodynamic efficiency and reliable performance across rigorous industrial workloads.
