BA8060H24B-E-25KPA-Unintegrated 24V High Pressure Air Blower
Up to 25KPa ultra-high static pressure centrifugal blower with unintegrated driver design, ideal for high-demand air supply and respiratory equipment cooling.
High Static Pressure 24V DC Air Blower BA8060H24B-E 86×82×60mm
Built-in high-performance brushless motor delivers stable 25KPa pressure output, bare blower unit without built-in control board for flexible external control.
Customizable Unintegrated 24V Air Blower BA8060H24B-E-25KPA
Compact 868260mm dimension, 25KPa powerful air pressure, supports customized external drive circuit and PWM speed regulation development.
Heavy Duty 24V Centrifugal Air Blower BA8060H24B-E-25KPA
Stable 24V power input, remarkable 25KPa high pressure performance and compact size, widely used in CPAP devices, pipeline ventilation and thermal management systems.
Technical Specifications

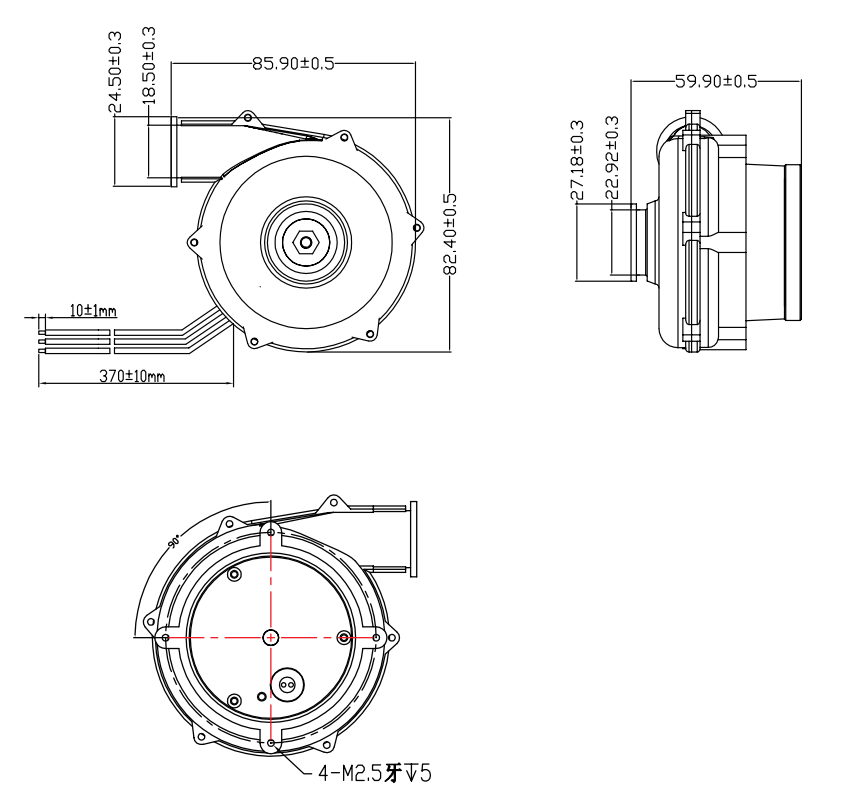

High pressure blower BA8060H24B-E-25KPA-Unintegrated Mechanical Structure Diagram
The unintegrated mechanical structure diagram of the High Pressure Blower BA8060H24B-E-25KPA highlights its precision-engineered architecture, tailored specifically for demanding 25kPa high-pressure pneumatic applications. Its robust scroll casing and optimized internal fluid channels minimize turbulence and pressure loss, ensuring superior structural integrity.
Manufactured with high-grade industrial materials, this modular design offers excellent vibration resistance, exceptional durability, and seamless mechanical integration into complex automated systems and advanced industrial equipment.

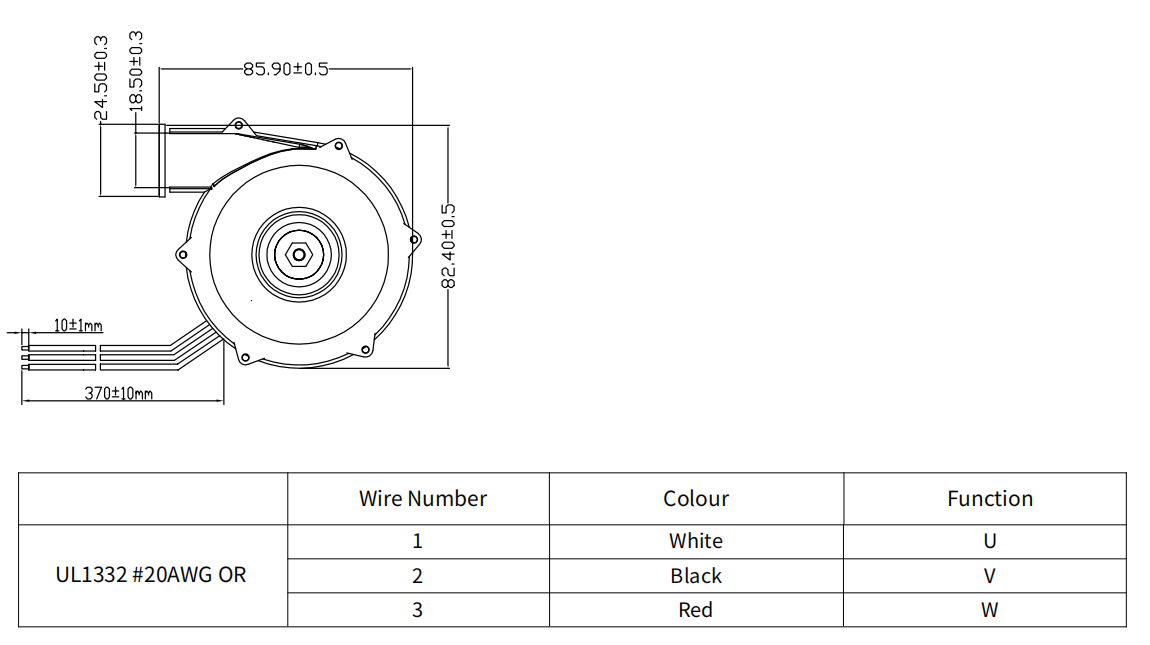

High pressure blower BA8060H24B-E-25KPA-Unintegrated Electrical Connection Diagram
The electrical connection diagram for the unintegrated BA8060H24B-E-25KPA model outlines clear terminal definitions, wiring guidelines, and interface specifications required for safe and efficient power distribution.
Engineered to support standard DC power supplies alongside advanced PWM speed control architectures, it features robust internal protection circuits against voltage surges and reverse polarity, ensuring dependable, uninterrupted operation.

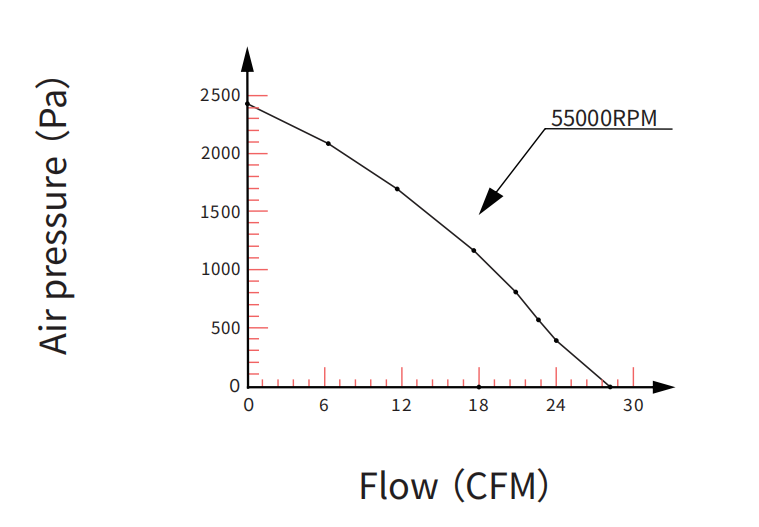

High pressure blower BA8060H24B-E-25KPA-Unintegrated P-Q Curve
The Pressure-Flow (P-Q) performance curve illustrates the exceptional pneumatic capability and 25kPa high static pressure output of the BA8060H24B-E-25KPA blower. It demonstrates how the unit sustains stable airflow volume even when operating against heavy system backpressure and restrictive pathways[cite: 8].
This comprehensive performance chart gives engineers critical metrics to determine optimal operating points, ensuring maximum aerodynamic efficiency and reliable performance across rigorous industrial workloads.
Note: This video demonstrates the operation and performance of the BA8060H24B-E 25kPa high-pressure blower[cite: 8].
