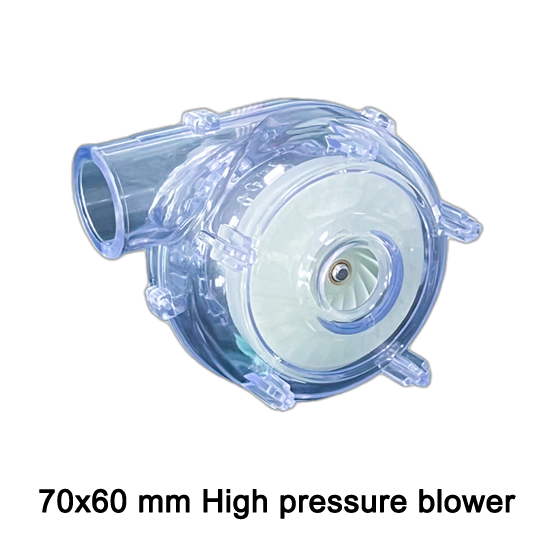

High pressure blower BA7060H24B-K-Integrated
Integrated driver 24v
36000rpm/min
Max 16cfm,7.4kpa
Request a Sample
Download Datasheet
Ultra-High Static Pressure for Demanding Applications
Engineered with an optimized impeller and volute design, the BA7060H24B delivers exceptional static pressure performance within a compact form factor, making it the perfect power source to overcome high airflow resistance in medical ventilators and vacuum systems.
Whisper-Quiet Operation & Minimal Vibration
Featuring advanced aerodynamic noise-reduction technology and high-precision dynamic balancing, this blower minimizes airflow turbulence and mechanical vibration, ensuring stable and quiet operation even in noise-sensitive medical or office environments.
Energy-Efficient 24V DC Brushless Motor
Powered by a high-efficiency 24V DC brushless motor, it offers low power consumption, minimal heat generation, and supports precise PWM speed control, significantly boosting overall system energy efficiency and reliability.
Premium Dual Ball Bearings for Extended Lifespan
Equipped with industrial-grade, high-precision dual ball bearings, this blower boasts superior wear resistance and thermal stability. Built for 24/7 continuous high-intensity operation, it ensures a drastically prolonged service life compared to standard fans.
Technical Specifications

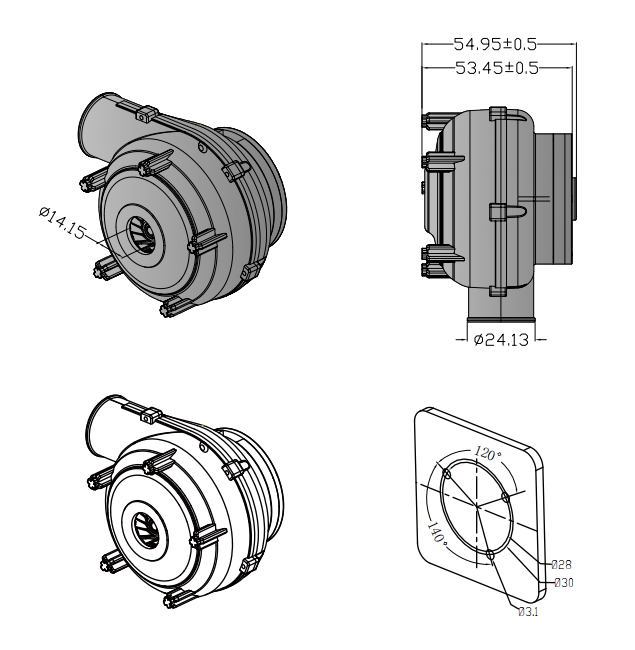

High pressure blower BA7060H24B-K-Integrated Mechanical Structure Diagram
This comprehensive mechanical structure diagram illustrates the precise internal and external engineering layout of the High pressure blower BA7060H24B-K-Integrated version. It details the integrated structural design, mounting interface dimensions, casing profile, and air inlet/outlet configurations.
Engineered for compact space utilization and robust mechanical stability, this blueprint provides structural engineers and product designers with accurate spatial references, ensuring seamless hardware integration into advanced ventilation, medical devices, and automated pneumatic systems.

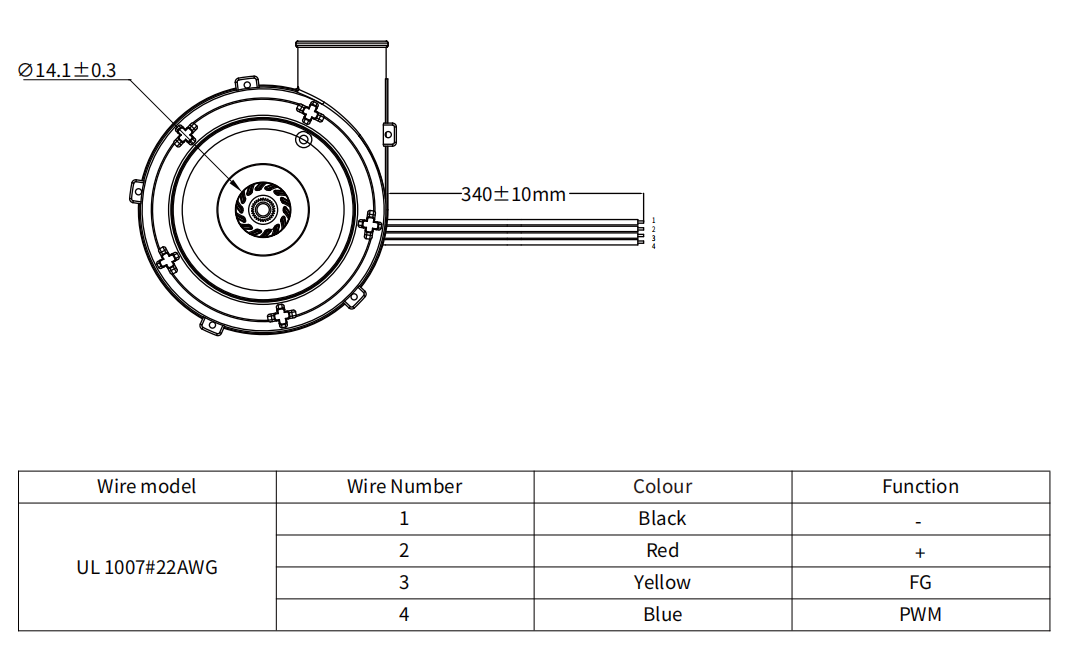

High pressure blower BA7060H24B-K-Integrated Electrical Connection Diagram
The electrical connection diagram clearly outlines the wiring configurations, pin assignments, power supply input guidelines, and control signal interfaces for the High pressure blower BA7060H24B-K-Integrated model. It provides explicit instructions for connecting the internal brushless motor driver.
Designed to support safe and efficient circuitry deployment, this guide helps electrical engineers properly wire power lines, speed regulation signals, and feedback channels, preventing wiring errors and ensuring stable, long-term electrical performance.

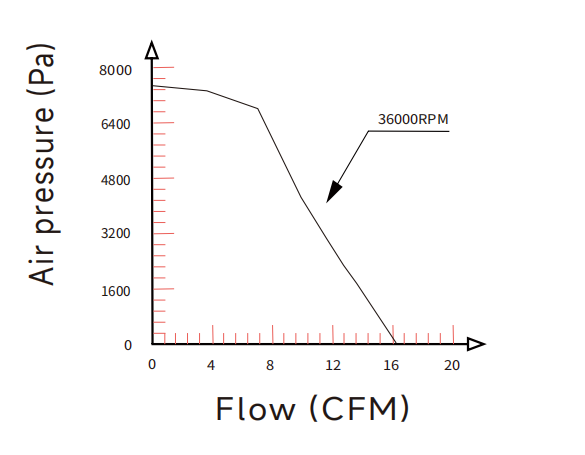

High pressure blower BA7060H24B-K-Integrated P-Q Curve
This performance P-Q (Pressure-Flow) curve graph maps out the aerodynamic capability and airflow characteristics of the High pressure blower BA7060H24B-K-Integrated . It details the precise interaction between static pressure performance and delivered airflow volume across various operation points.
Optimized for high-pressure output and superior aerodynamic efficiency, the blower delivers steady and reliable air performance. This curve serves as an essential technical reference for system developers to calibrate air resistance, optimize duct design, and achieve desired ventilation targets.
