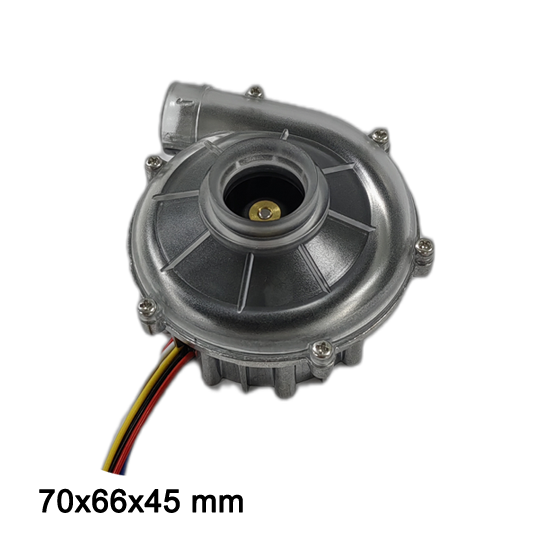

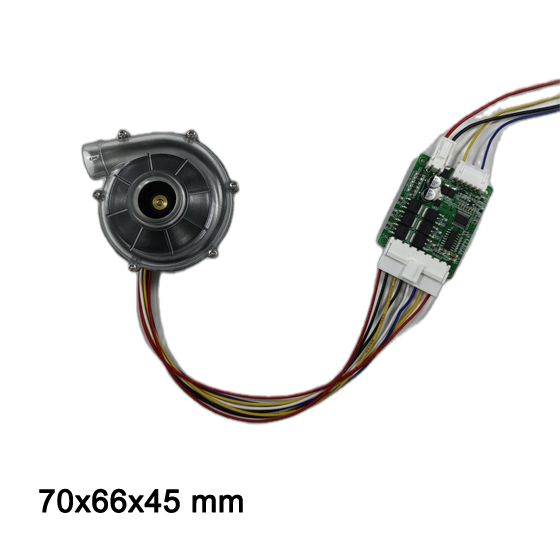

High pressure blower BA7050H24B

Voltage 24V
37000rpm/min
Max 17.8 cfm,7.89 kpa

Superior High Pressure Output

Strong static pressure and powerful airflow effectively dissipate heat for confined and high-resistance industrial equipment.

Stable 24V DC Operation

Adopts standard 24V DC voltage, runs steadily and matches most industrial power supply environments perfectly.

Well-proportioned 70×50mm Size

Moderate dimension balances air delivery capacity and installation flexibility to fit various equipment layouts.

Quiet Running & Wide Usage

Low-noise working performance makes it suitable for machinery, electronic devices and various ventilation cooling applications.

Technical Specifications

ModelBA7050H24B
Size70*66*45 mm
Operating Voltage24 VDC
Rated Current2.9 Amp
Rated Speed37000 RPM
Maximum Flow Rate17.8 CFM
Maximum Static Pressure7.89 kPa
Structure drawing of High pressure blower.png

High pressure blower BA7050H24B Mechanical Structure Diagram

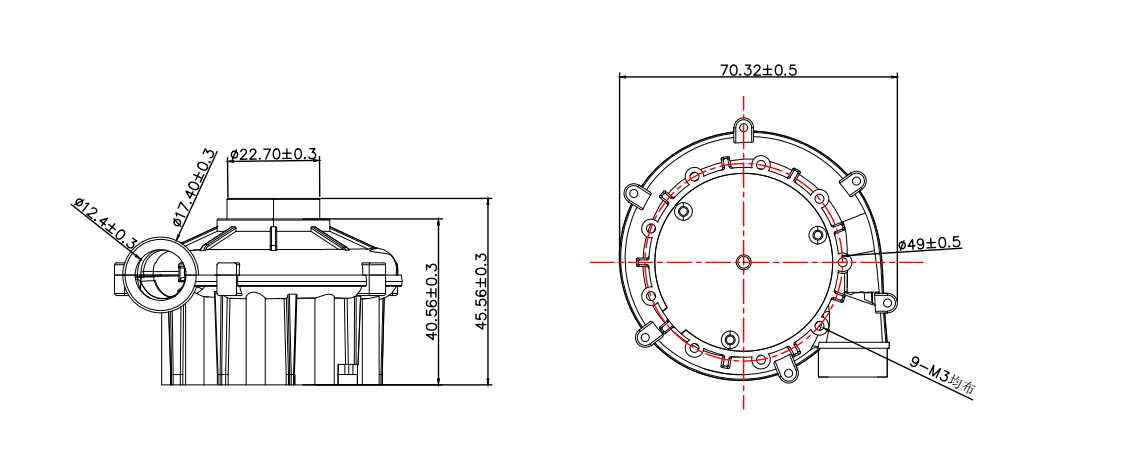

This detailed mechanical structure diagram of the high pressure blower clearly outlines precise dimensional specifications, critical mounting hole geometries, and overall profile limits. Meticulously engineered for advanced industrial applications and analytical instruments, this comprehensive drawing provides dependable structural dimensions to ensure seamless alignment, stable enclosure compatibility, and straightforward integration into compact system assemblies.

Structure drawing of High pressure blowers.png

High pressure blower BA7050H24B Electrical Connection Diagram

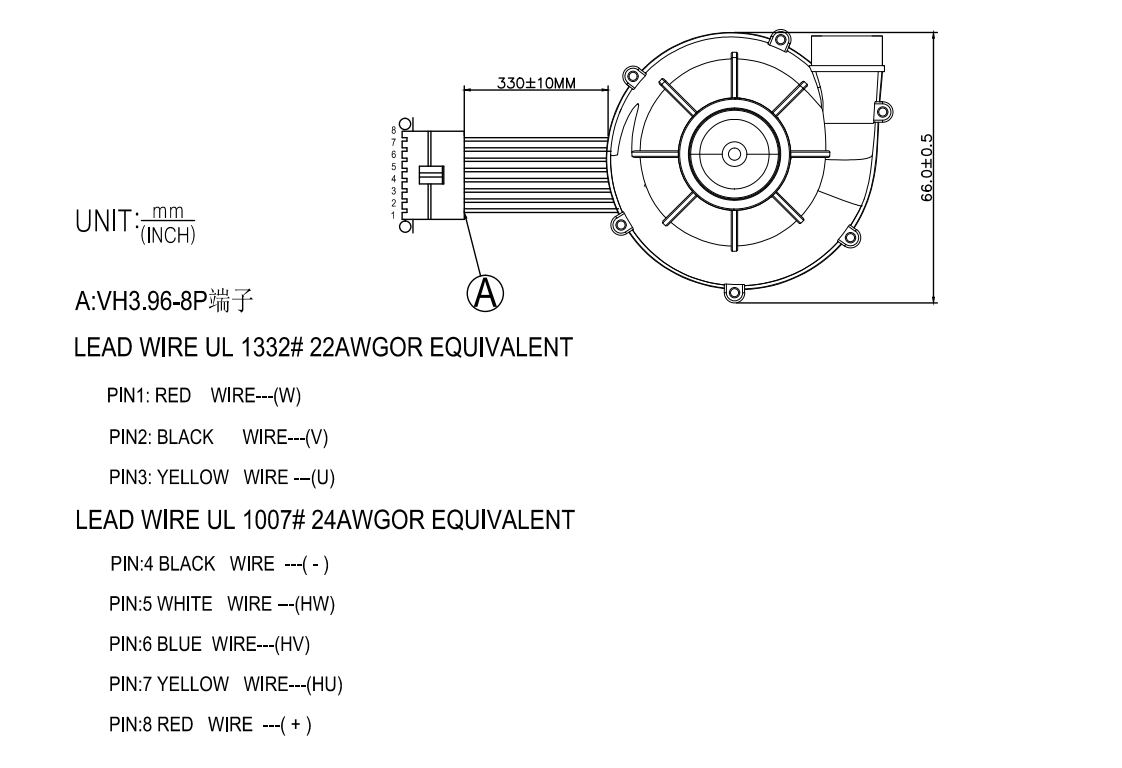

The electrical connection diagram for the high pressure blower provides clear guidance on pin definitions, power input requirements, and control signal wiring. Designed to support reliable power distribution and safe operation, this schematic helps engineers configure standard voltage inputs and auxiliary signal lines correctly, preventing wiring errors and ensuring stable, long-term electrical performance within your equipment.

PQ curve for High pressure blower.png

High pressure blower BA7050H24B P-Q Curve

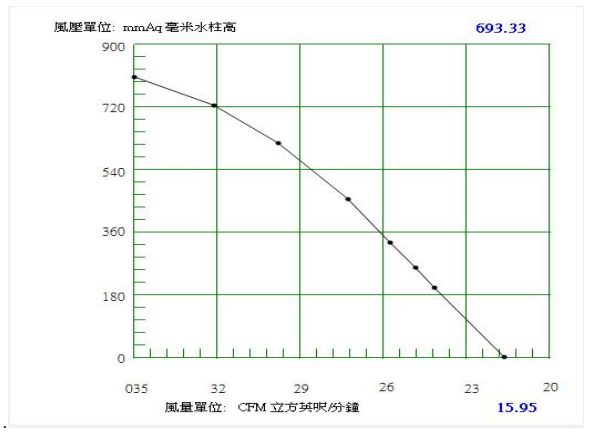

The Performance (P-Q) Curve for the high pressure blower illustrates the robust relationship between static pressure and airflow output under diverse operational workloads. Specially tuned for high-precision demands, this curve highlights the blower's outstanding capability to sustain steady sampling performance against rigorous system resistance, guaranteeing superior operational repeatability, reliable airflow delivery, and exceptional dynamic responsiveness across its entire operating envelope.
