High pressure blower BA7050H24B-C-Unintegrated

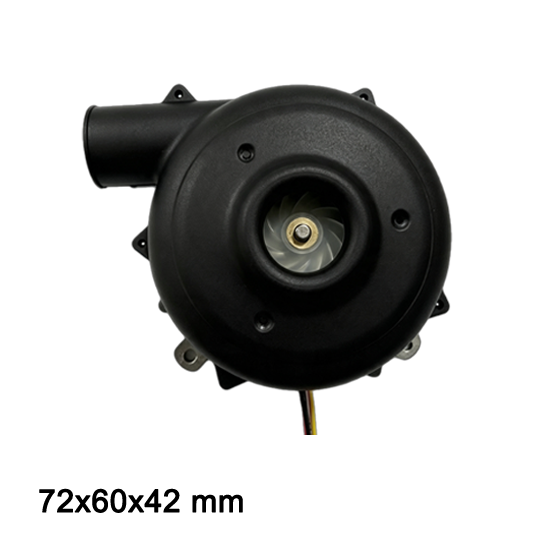

High pressure blower BA7050H24B-C-Unintegrated
Voltage 24V
40000rpm/min
Max 16 cfm,9.14 kpa
Technical Specifications

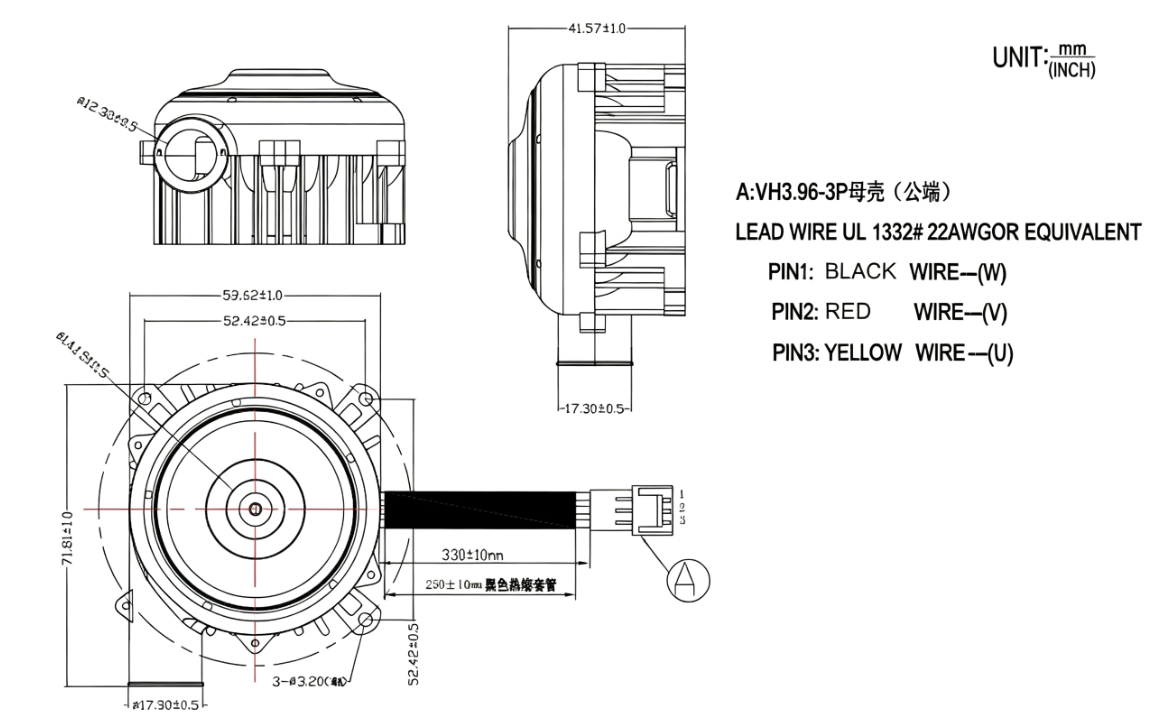

High pressure blower BA7050H24B-C-Unintegrated Mechanical Structure Diagram
This mechanical structure diagram details the precise outer dimensions, mounting configurations, and physical architecture of the unintegrated high-pressure blower model BA7050H24B-C. Engineered specifically for intensive pneumatic systems requiring concentrated airflow under high resistance, its robust structural design guarantees secure installation, optimal spatial efficiency, and reliable mechanical durability in demanding industrial environments.

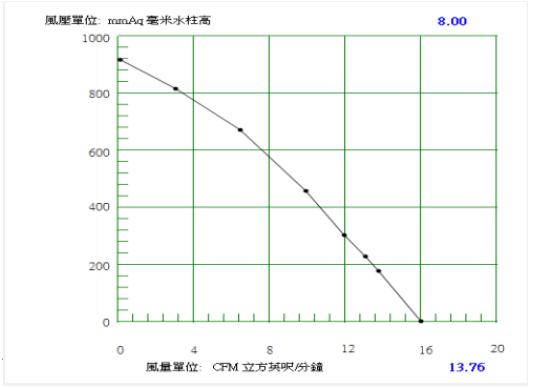

High pressure blower BA7050H24B-C-Unintegrated P-Q Curve
The Pressure-Flow (P-Q) curve characterizes the exceptional aerodynamic performance and high static pressure capabilities of the BA7050H24B-C high-pressure blower. It clearly illustrates the dynamic relationship between pressure build-up and airflow delivery across operating ranges, providing engineers with precise performance data to evaluate operating points and match the blower to rigorous high-resistance ventilation systems.
High pressure blower BA7050H24B-C-Unintegrated
Watch this comprehensive video demonstration of the High pressure blower BA7050H24B-C-Unintegrated in action. It highlights the exceptional high-pressure aerodynamic output, stable operation at high RPM, and advanced intelligent features like PWM and FG functions, providing an intuitive and reliable visual reference for engineers and system integrators.
Looking for different sizes or specifications?
Explore our full range of High pressure blower, or choose from similar models below.
High pressure blower
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
