High pressure blower BA5030H24B-A-Integrated
Integrated driver 24V
28000rpm/min
Max 6 cfm,2.9 kpa

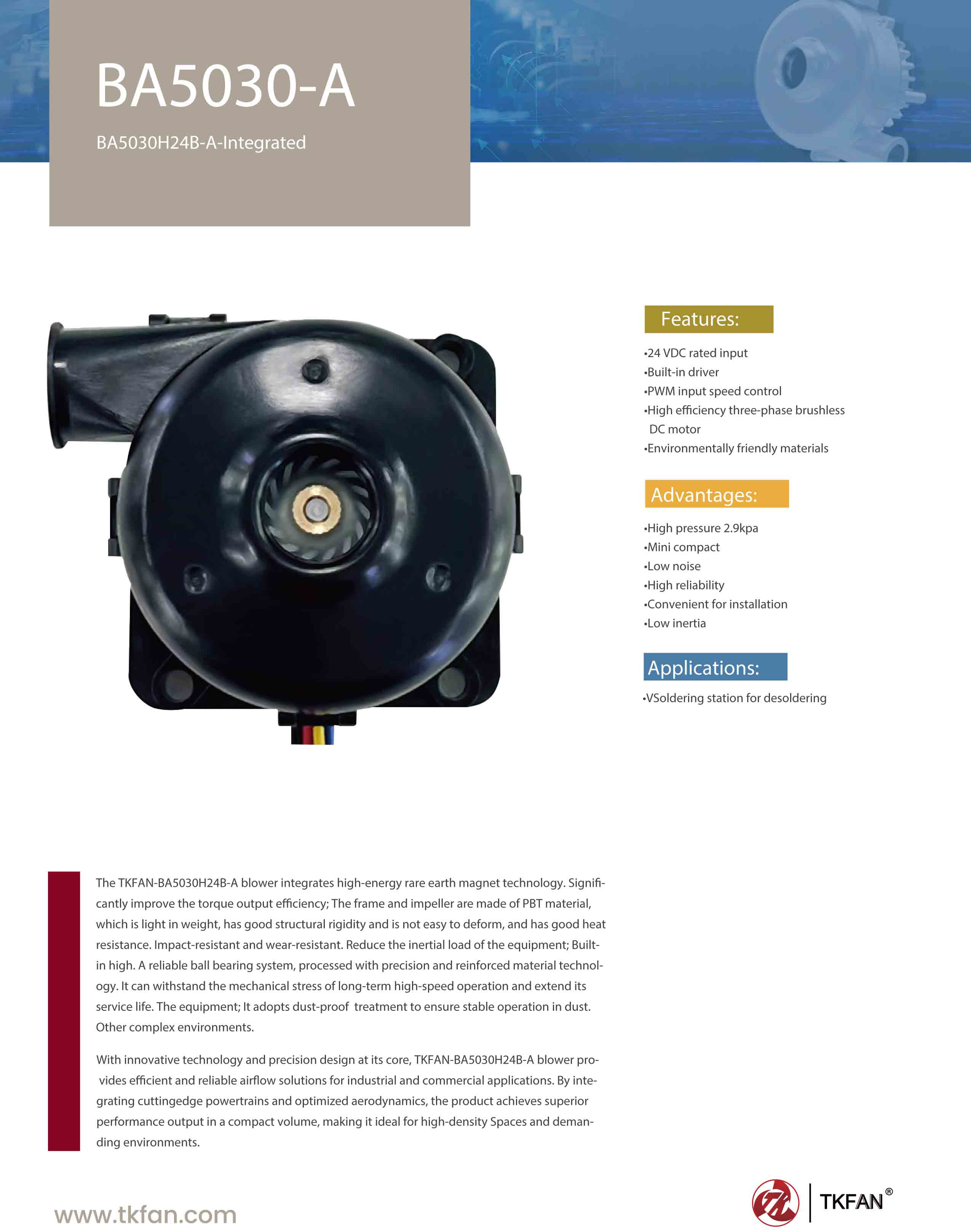

Integrated Intelligent Drive Design
Eliminates the need for external controllers. The built-in drive simplifies wiring, reduces installation space, and provides seamless plug-and-play functionality with precise speed control.
High Pressure & Heavy-Duty Performance
Specifically engineered to deliver high static pressure and stable airflow ($BA5030H24B-A$), making it perfect for applications requiring powerful ventilation through restricted spaces, such as medical ventilators, air purifiers, and fuel cells.
Ultra-Quiet & Low-Vibration Operation
Features dynamic balancing and advanced aerodynamic blades that significantly reduce mechanical noise and vibration, ensuring a quiet working environment even at peak performance.
Compact & Durable Architecture
Crafted with high-grade, heat-resistant materials and a space-saving footprint ($50\times30\text{ mm}$ class), allowing for easy integration into compact internal layouts without compromising on rugged durability.
Technical Specifications

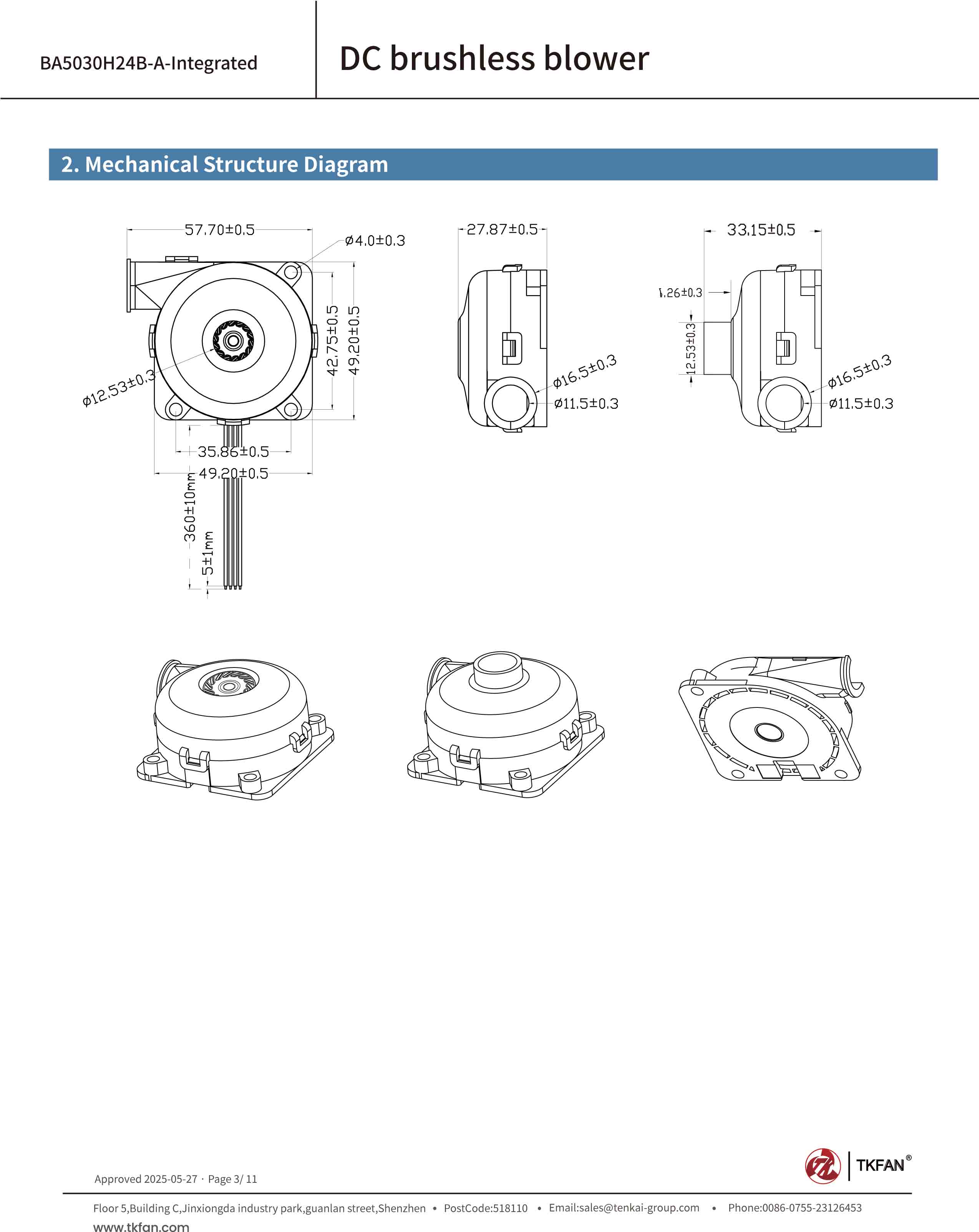

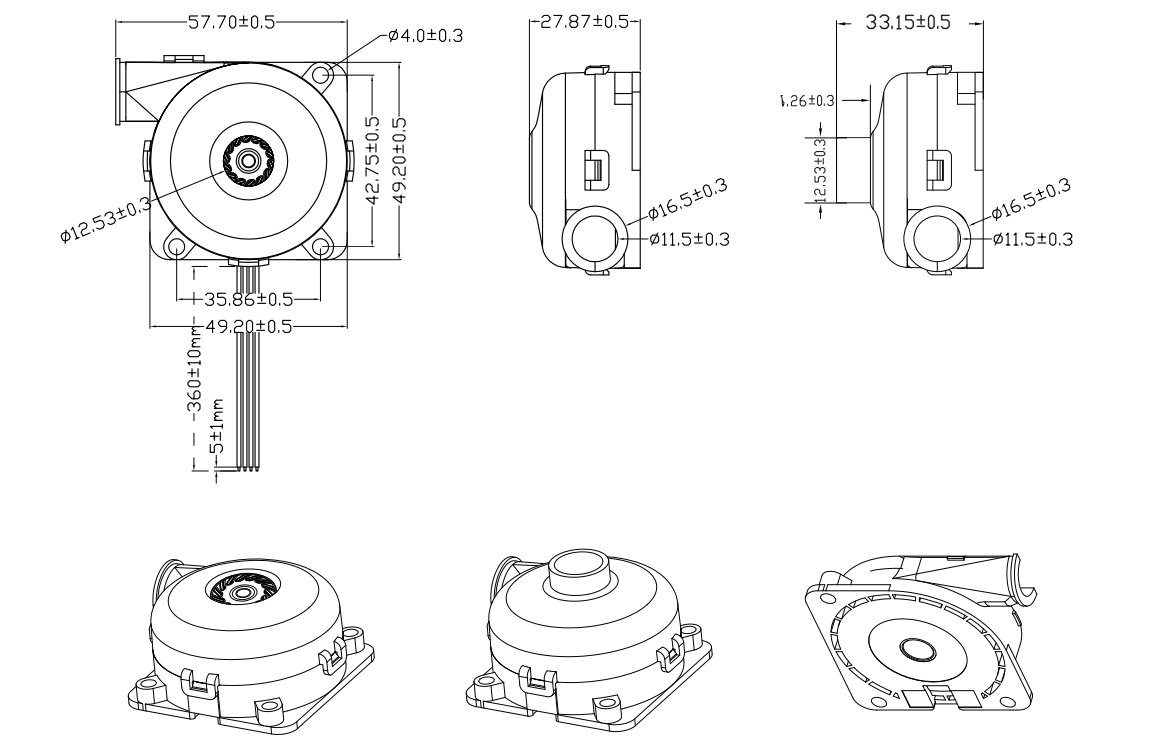

High pressure blower BA5030H24B-A - Integrated Structure Diagram
The integrated mechanical architecture of the BA5030H24B-A high-pressure blower combines a precision-machined aerodynamic impeller, compact scroll housing, and an advanced brushless motor drive in a unified, space-saving footprint. Engineered for high-density electronic cooling, fuel cells, and medical breathing devices, this robust structure guarantees minimal vibration, optimized airflow vectoring, and long-term durability under continuous 28,000 RPM high-speed operations.

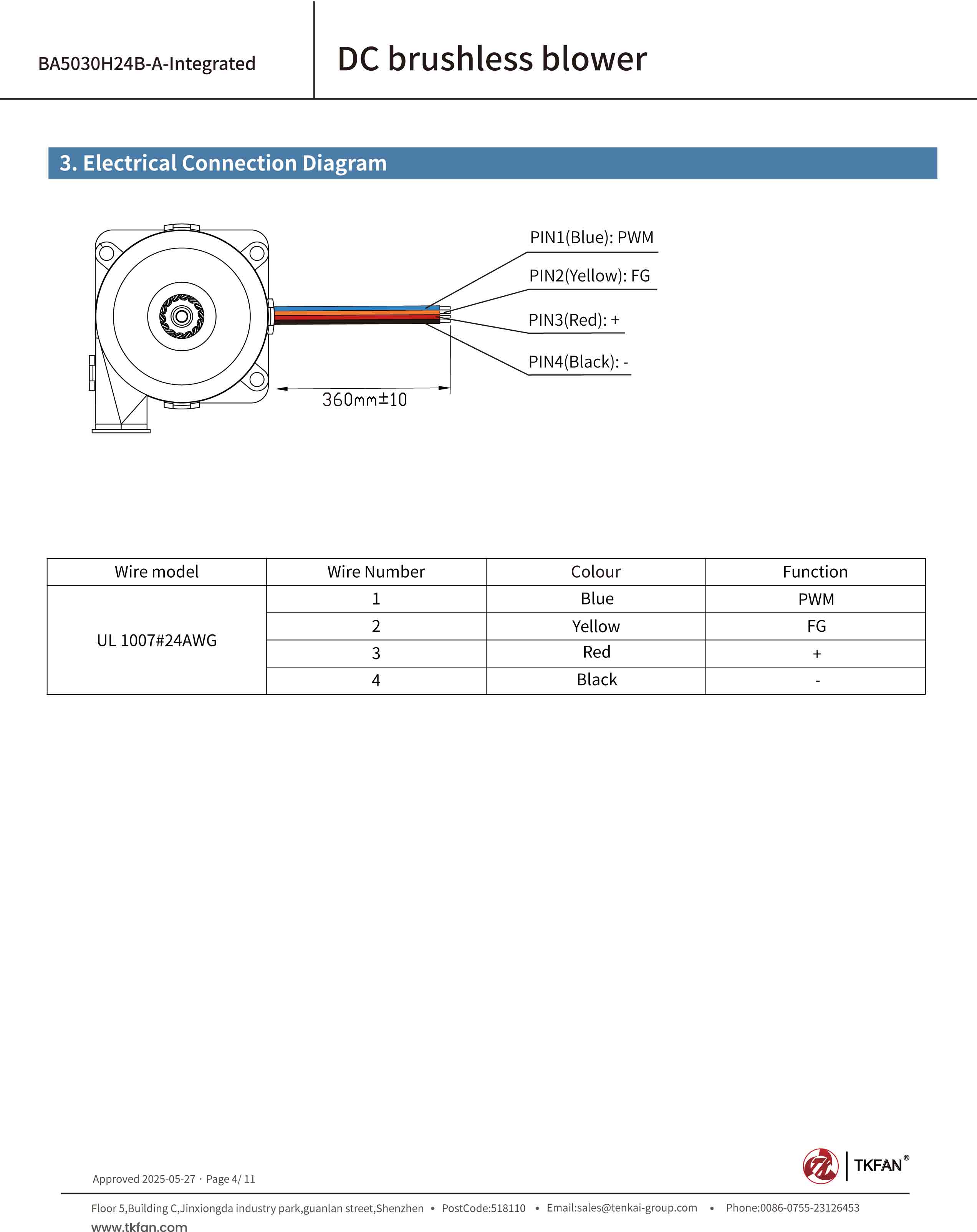

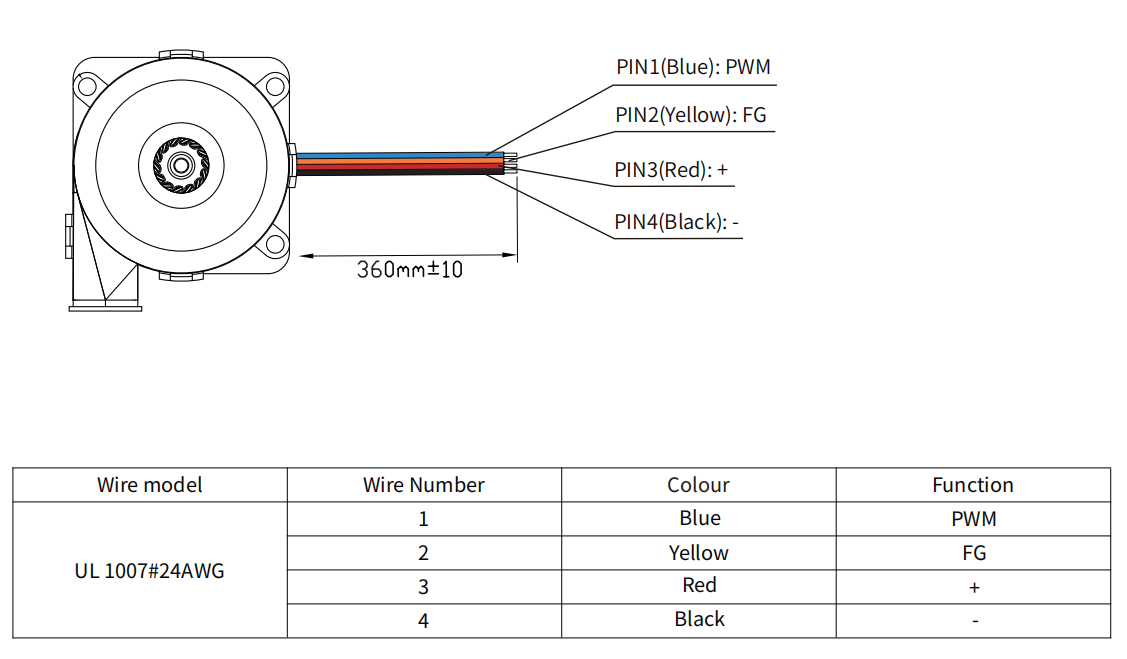

High pressure blower BA5030H24B-A - Integrated Electrical Connection Diagram
Engineered for seamless and secure system integration, the electrical interface layout provides clear pin definitions for 24V DC power input, PWM speed control, and tachometer (FG) frequency pulse feedback. This advanced configuration allows closed-loop precise speed regulation and real-time performance tracking, protecting internal driving circuitry against reverse polarity and electrical transients.

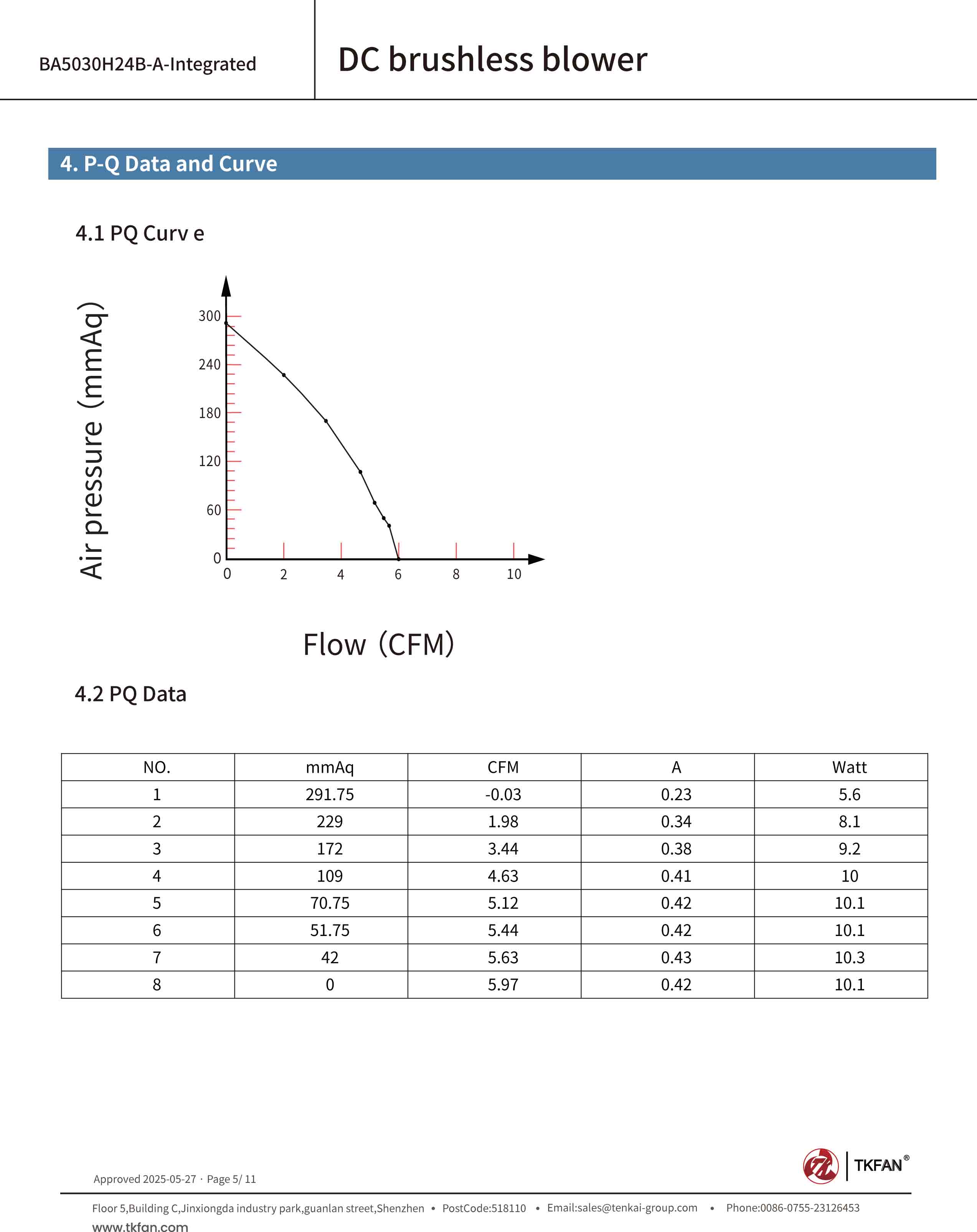

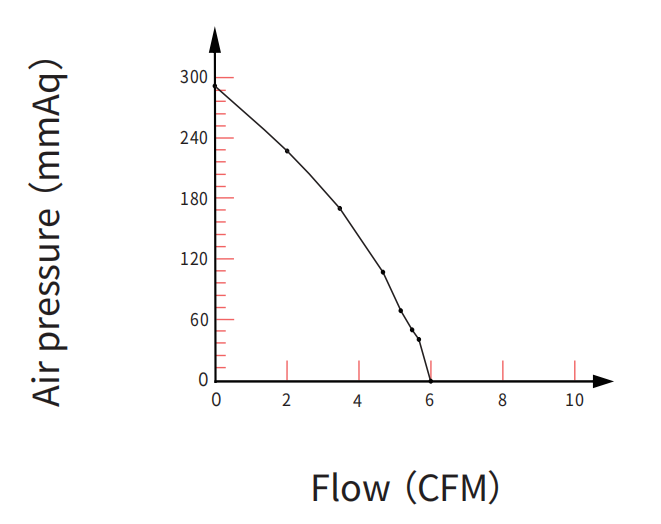

High pressure blower BA5030H24B-A - Integrated P-Q Curve
The Pressure-Flow (P-Q) performance curve delineates the exceptional aerodynamic efficiency and high static pressure capabilities of the BA5030H24B-A across diverse system resistance profiles. It charts stable operational zones, enabling design engineers to precisely match the blower to high-impedance pneumatic circuits, micro-channels, and demanding industrial ventilation requirements.
High Pressure Blower BA5030H24B-A - Integrated Performance Demonstration
Watch our high-performance BA5030H24B-A integrated DC blower demonstrate outstanding volumetric airflow, 28,000 RPM high speed, and exceptional static pressure under demanding testing conditions.
