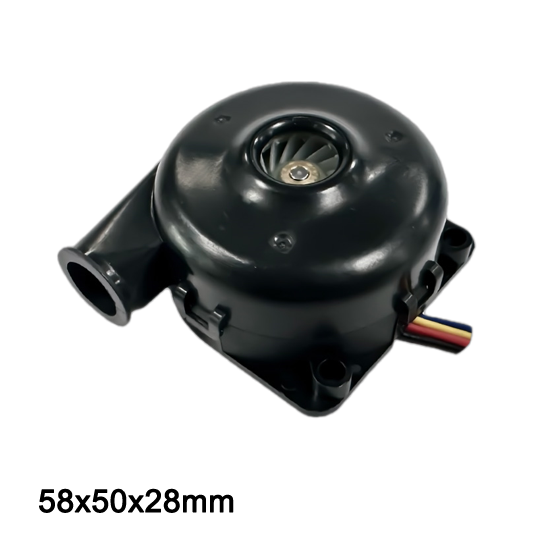

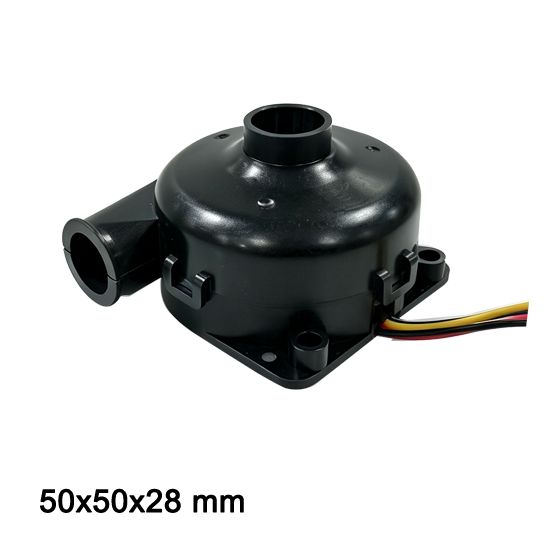

High pressure blower BA5030H12B-A
12v,8.6cfm,6.15kpa
58*50*28 mm
39100rpm/min
Auto cleaning air blower
Request a Sample
Structure Drawing
Technical Specifications

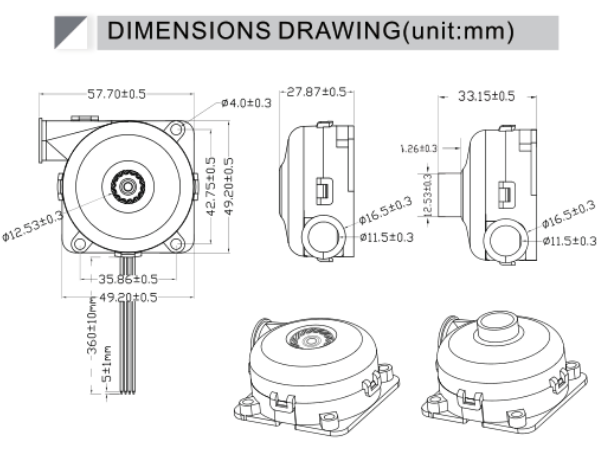

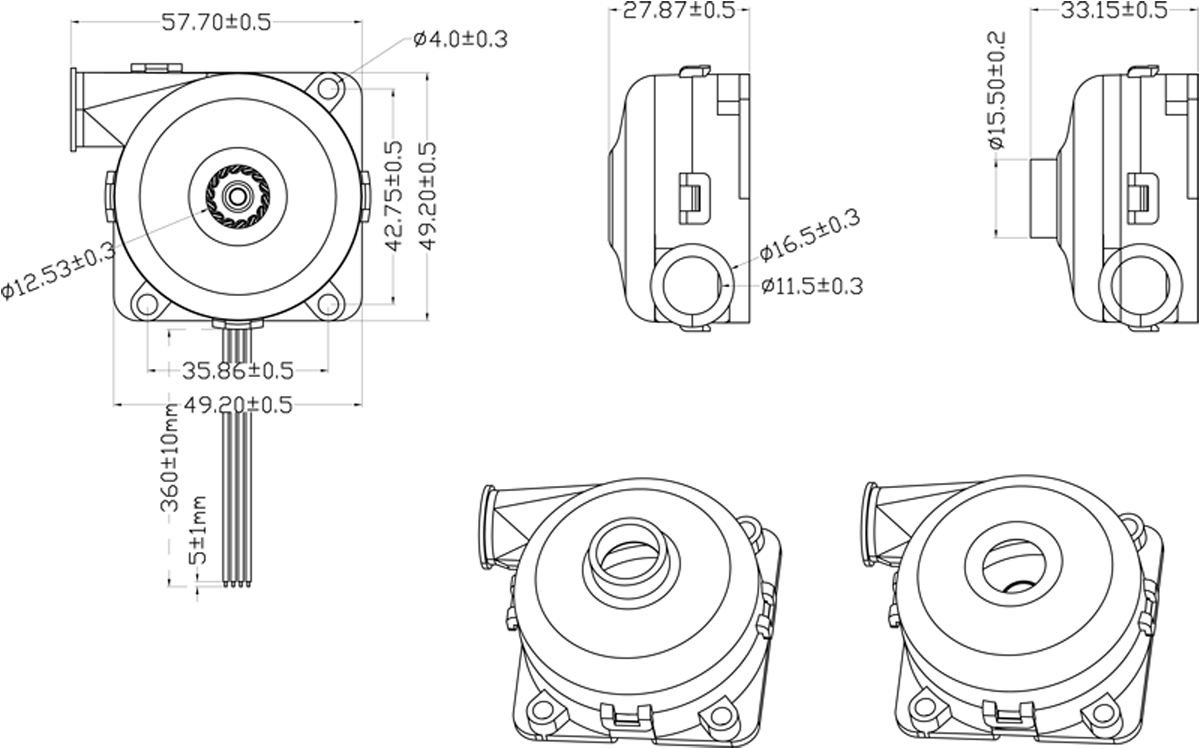

High pressure blower BA5030H12B-A dimensions drawing
Detailed mechanical dimensions and mounting specifications for the High pressure blower BA5030H12B-A to assist in structural design and equipment integration.

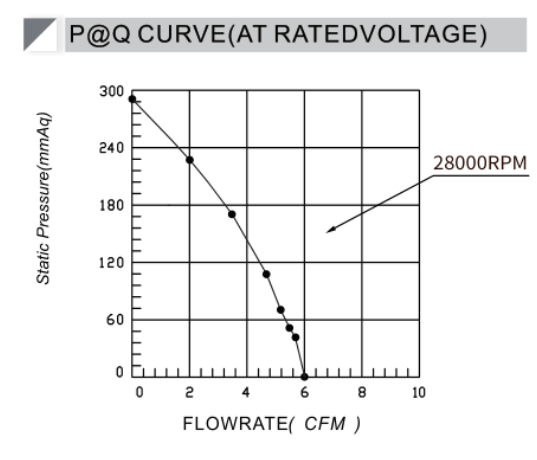

High pressure blower BA5030H12B-A PQ curve
Airflow vs. Static Pressure performance curve (P-Q Curve) for the High pressure blower BA5030H12B-A. Use this graph to evaluate fan performance under various system impedance conditions.
High pressure blower BA5030-A Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect High pressure blower BA5030-A for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | m³/min | CFM | mmH2O | InH2O | dB-A | ||
| BA5030H12B | AY | 12 | 9~16 | 2.1 | 25.2 | 39100 | 0.24 | 8.6 | 615 | 24.21 | 63.5 |
| BA5030H24B | 24 | 8~26.5 | 0.45 | 10.8 | 28000 | 0.17 | 6.0 | 291.8 | 11.48 | 59.1 | |
Operation video of high pressure blower BA5030H12B
