High pressure blower BA5025H24B-A-Integrated
Voltage 24V
38000rpm/min
Max 11.1 cfm,4.81 kpa
Smart Integrated Drive (Plug & Play)
Features a built-in, fully integrated driver board that eliminates the need for external controllers. This streamlined design simplifies your device wiring, saves valuable internal space, and significantly reduces system integration costs.
Exceptional High Static Pressure
Specially engineered to overcome high-resistance and sealed environments. The advanced centrifugal design generates powerful static pressure and a focused airflow that easily penetrates high-density filters or narrow cooling channels.
Ultra-Quiet & Extended Lifespan
Equipped with premium dual ball bearings ($B$) and an optimized airflow housing. It ensures minimal vibration and whisper-quiet operation even at peak speeds, while delivering tens of thousands of hours of maintenance-free, continuous operation.
Industrial-Grade Reliability
Built to withstand harsh operating conditions with excellent temperature resistance and anti-interference capabilities. It delivers rock-solid, 24/7 stability for high-precision applications such as medical ventilators, 3D printers, and fume extractors.
Technical Specifications

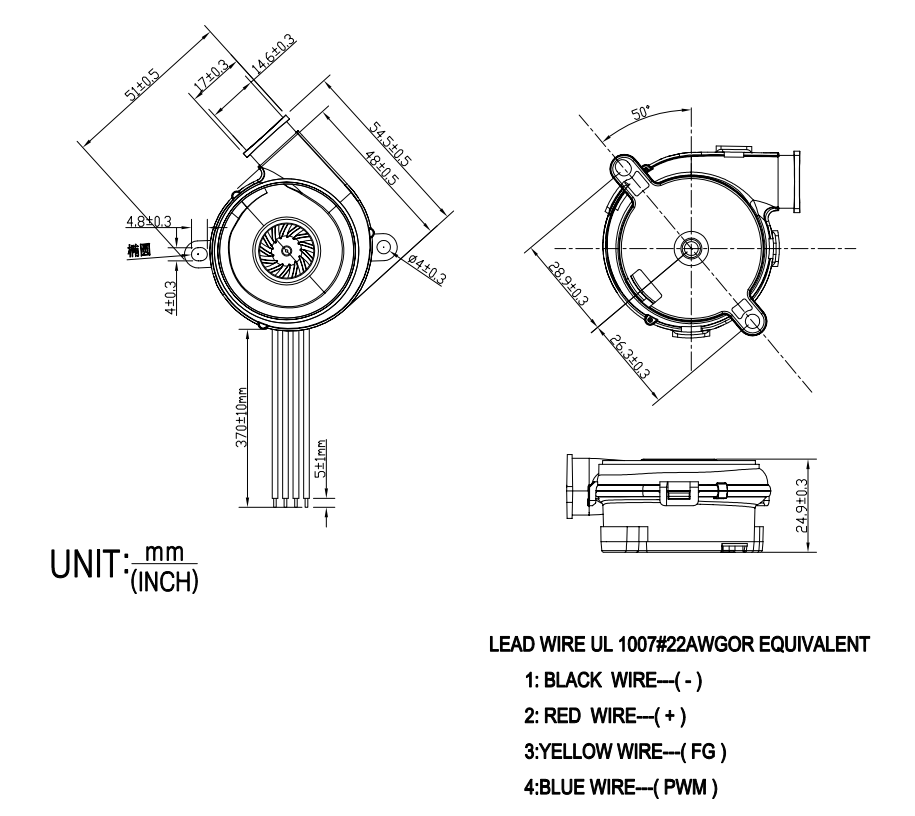

High pressure blower BA5025H24B-A-Integrated dimensions drawing
This comprehensive mechanical dimension drawing illustrates the precise physical geometry, mounting hole layouts, and spatial clearances of the integrated high-pressure blower model BA5025H24B-A. Featuring a built-in driver design, it maximizes spatial efficiency by removing the need for external control boards. Engineers and system integrators can utilize these accurate structural specifications to guarantee seamless mechanical alignment, secure housing installation, and optimized space management in compact medical equipment, portable analyzers, and precision pneumatic systems.

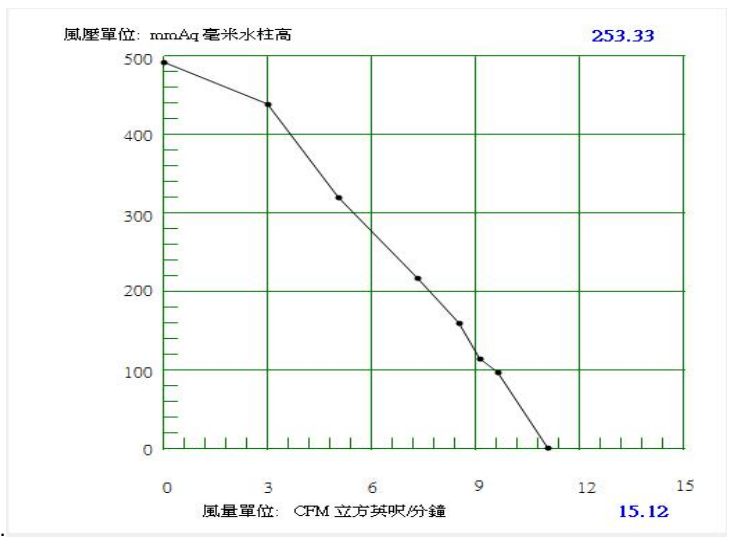

High pressure blower BA5025H24B-A-Integrated PQ curve
The Pressure-Flow (P-Q) performance curve characterizes the aerodynamic efficiency, high static pressure capabilities, and airflow output dynamics of the BA5025H24B-A integrated high-pressure blower under varying load conditions. It clearly maps out the relationship between static pressure and airflow delivery, allowing engineers to reliably evaluate pneumatic performance, determine optimal operational operating points, and match the blower's high-speed capabilities to demanding application requirements such as fuel cell systems, specialized sampling devices, and localized air delivery.
Product Overview: Demonstration of the BA5025H24B 24V high-pressure DC blower featuring an integrated driver design for high performance, space-saving installation, and efficient airflow control.
