 High pressure blower BA12060HV24B-B
 High pressure blower BA12060HV24B-B

High pressure blower BA12060HV24B-B

Voltage 24V
15000rpm/min
Max 70.5 cfm,6.7 kpa

Technical Specifications

ModelBA12060HV24B-B
Size143*134*71 mm
Operating Voltage24 VDC
Rated Current6.8 Amp
Rated Speed15000 RPM
Maximum Flow Rate70.5 CFM
Maximum Static Pressure6.7 kPa

High pressure blower BA12060HV24B-B

High-performance high pressure blower engineered for strong static pressure and reliable continuous airflow. Product display photos. (Click image to enlarge)

High pressure blower BA12060HV24B-B main product photo, 12060 centrifugal blower with outlet nozzle and lead wires
Top view of the high pressure blower BA12060HV24B-B showing the TKFAN nameplate and mounting holes
Side profile of the high pressure blower BA12060HV24B-B showing overall thickness and outlet nozzle
Front housing view of the high pressure blower BA12060HV24B-B with lead wires

The BA12060HV24B-B is a compact high pressure centrifugal blower built around a durable die-cast aluminum housing, delivering high static pressure and stable long-term operation. The gallery above presents its main product profile, the TKFAN nameplate and mounting holes on the top view, the side profile with overall thickness and tangential outlet nozzle, and the front housing with outgoing lead wires — giving engineers a complete visual reference for fit, mounting and electrical integration.

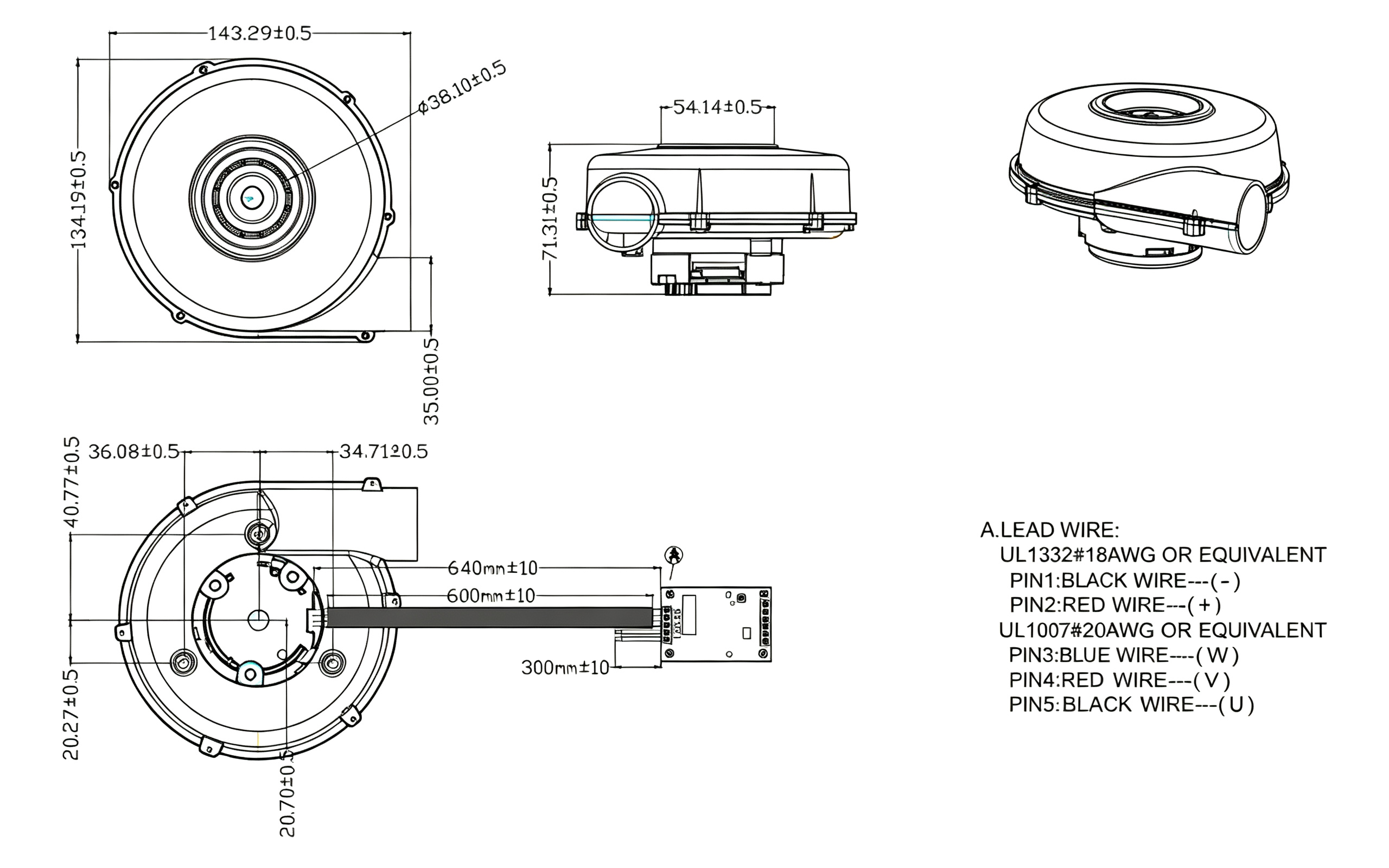

High pressure blower BA12060HV24B-B Mechanical dimensions drawing

This mechanical dimensions drawing provides precise structural specifications for the BA12060HV24B-B high-pressure centrifugal blower, including overall housing measurements, air inlet and outlet diameters, and mounting hole positions.

Engineered with a compact 120×120×60mm footprint, the unit is designed for seamless integration into space-constrained industrial equipment, medical devices, and automated systems, ensuring accurate alignment and hassle-free installation.

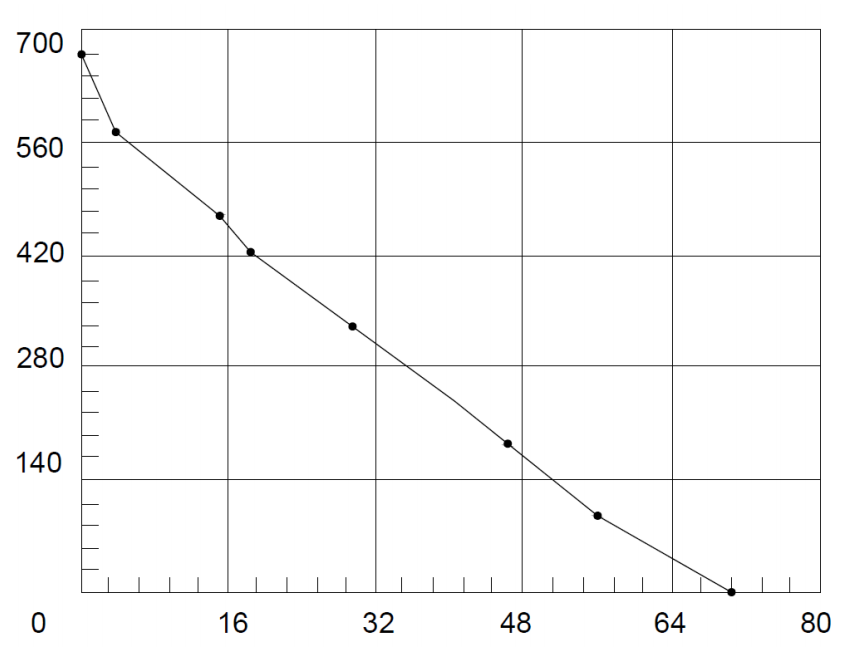

High pressure blower BA12060HV24B-B PQ curve

The PQ performance curve illustrates the relationship between static air pressure (P) and airflow volume (Q) for the BA12060HV24B-B blower operating at its rated 24V DC input.

Featuring a steep pressure-flow characteristic, this blower delivers strong static pressure to overcome high system resistance while maintaining stable, efficient airflow across various operating points—making it ideal for applications requiring concentrated air delivery, vacuum suction, or dense filter penetration.


High pressure blower BA12060HV24B-B

Watch this comprehensive video demonstration of the High pressure blower BA12060HV24B-B in action. Operating at up to 15,000 RPM and delivering 70.5 CFM airflow with high static pressure, this mini centrifugal blower features precise PWM speed control for advanced thermal management.

The video showcases its compact size, running performance, and acoustic characteristics, offering engineers an intuitive look at its real-world application potential in demanding electronic and automation systems.
