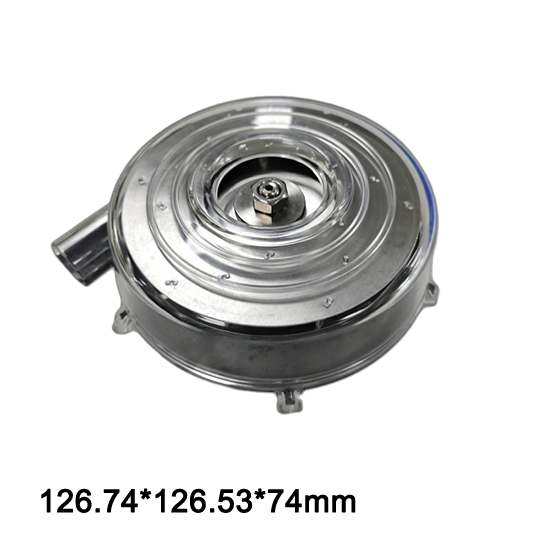

 High pressure blower BA12060HH24B-A
 High pressure blower BA12060HH24B-A

High pressure blower BA12060HH24B-A

Voltage 24V
11000rpm/min
Max 26.3 cfm,3.2 kpa

Request a Sample
Download Datasheet

Technical Specifications

ModelBA12060HH24B-A
Size126.74*126.53*74 mm
Operating Voltage24 VDC
Rated Current2.5Amp
Rated Speed11000 RPM
Maximum Flow Rate26.3 CFM
Maximum Static Pressure3.2 kPa

 High pressure blower BA12060HH24B-A dimensions drawing
PQ curve for High pressure blower BA12060HH24B-A



* This video demonstrates the operation and usage of the High pressure blower BA12060HH24B-A.

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
