24V Cpap air blower BA5025H24B
Voltage 24V
37000rpm/min
Max 9.5 cfm,4.05 kpa
Request a Sample
Structure Drawing

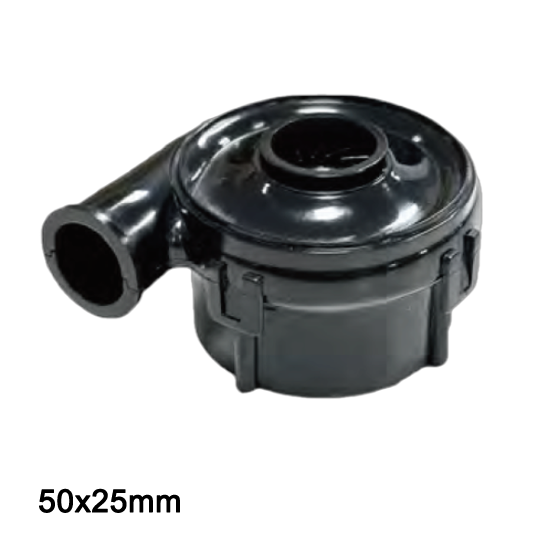

24V BA5025H24B CPAP Brushless Air Blower
5025 DC brushless blower delivers stable high airflow and constant pressure for medical CPAP sleep breathing devices.
BA5025H24B 24V DC CPAP Air Blower
Compact 50x25mm structure with low noise operation, perfectly designed for portable CPAP and ventilator equipment.
Medical Grade BA5025H24B 24V CPAP Blower
Energy-saving low power consumption and long lifespan ball bearing support 24-hour continuous running.
High Pressure BA5025H24B CPAP Air Blower 24V
Excellent static pressure performance with PWM speed control, suitable for respiratory therapy and health medical devices.
Technical Specifications

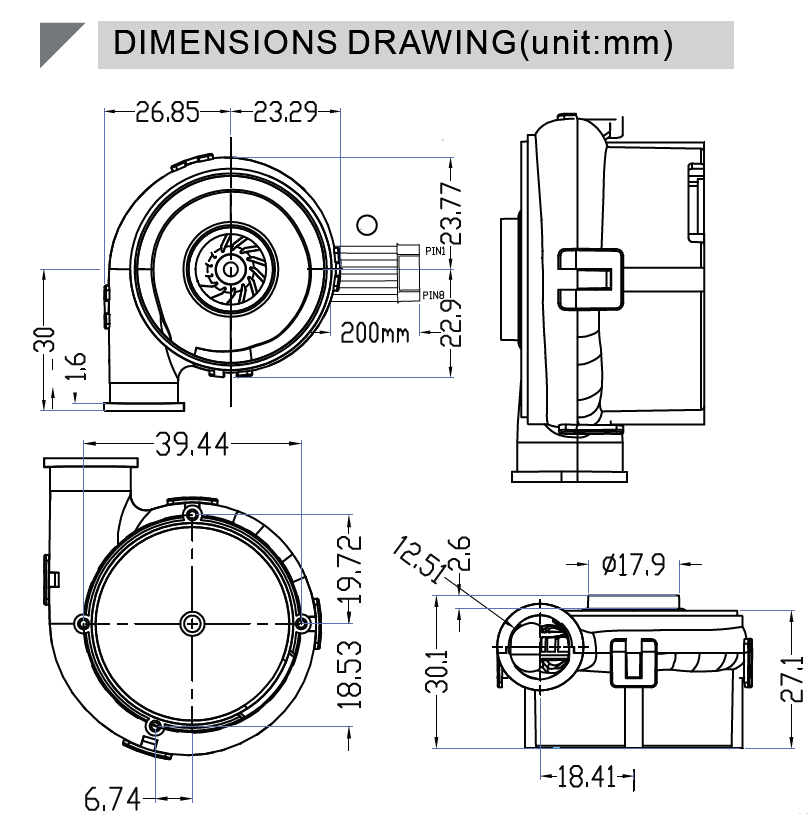

24V Cpap air blower BA5025H24B dimensions drawing
This comprehensive mechanical dimension drawing outlines the precise external geometry, mounting configurations, and spatial layout of the 24V CPAP air blower model BA5025H24B. Specifically engineered for medical respiratory devices and continuous positive airway pressure systems, its compact and space-saving architecture provides design engineers with exact structural references. These specifications ensure secure housing integration, vibration damping alignment, and reliable pneumatic port connections required in portable and bedside medical ventilators.

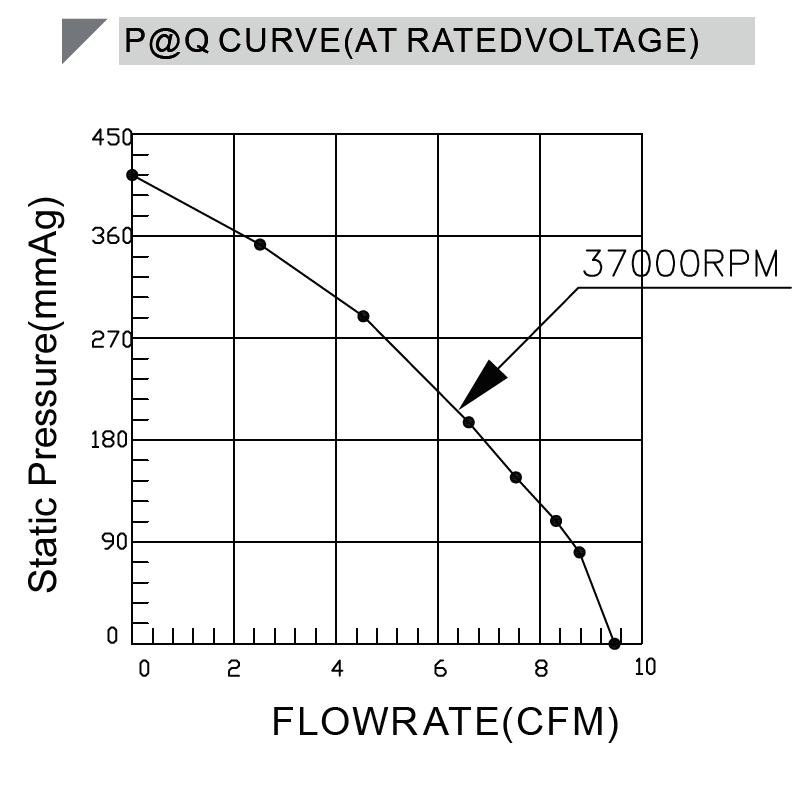

24V Cpap air blower BA5025H24B PQ curve
The Pressure-Flow (P-Q) performance curve characterizes the aerodynamic efficiency, stable static pressure generation, and precise airflow delivery of the BA5025H24B 24V CPAP blower across various respiratory resistance loads. It clearly maps out the dynamic relationship between airway pressure and volumetric output, enabling medical device developers to accurately evaluate pneumatic performance, determine optimal operating thresholds, and ensure consistent, quiet, and reliable pressure support for respiratory therapy applications.
Looking for different sizes or specifications?
Explore our full range of Cpap blower, or choose from similar models below.
Cpap blower
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
