Blower for particle counter BA8050H24B-A

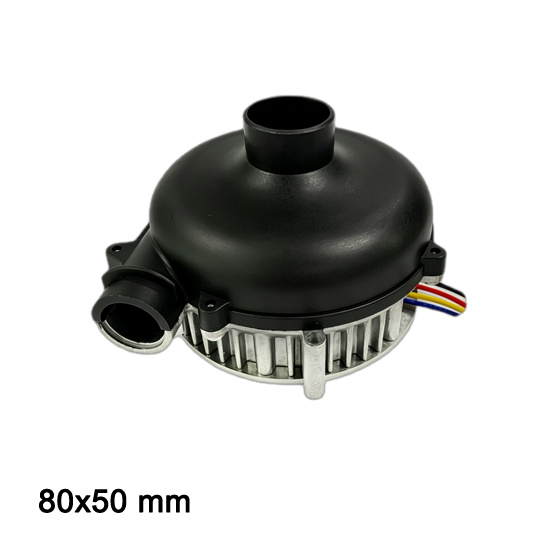

.png "TKFAN BA8050H24B-A Particle Counter Fan (Extended Intake)")
Blower for particle counter BA8050H24B-A
24v
32000rpm/min
Max18.3 cfm,8.2kpa
Request a Sample
Technical Specifications

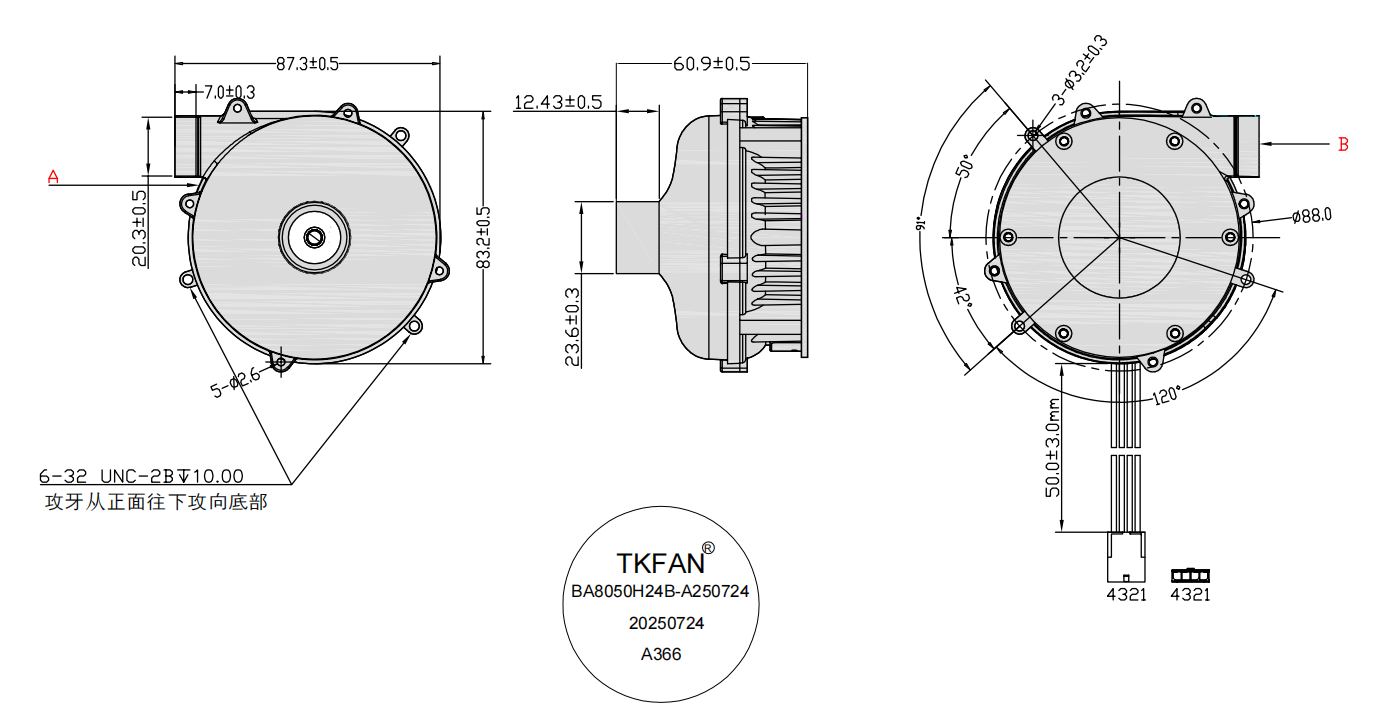

Blower for particle counter BA8050H24B-A dimensions drawing
This detailed dimensions drawing illustrates the precise structural layout, mounting configurations, and physical dimensions of the BA8050H24B-A blower designed specifically for particle counters. It highlights critical parameters such as outlet/inlet positions and overall thickness, ensuring effortless integration into compact analytical and environmental monitoring instruments.

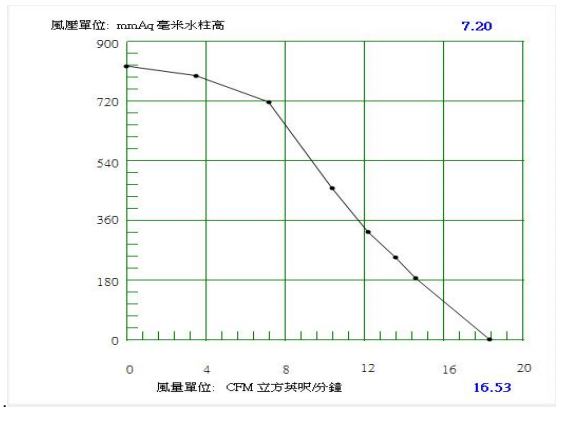

Blower for particle counter BA8050H24B-A PQ curve
The PQ (Performance-Pressure and Flow) curve graph delineates the exceptional aerodynamic efficiency and static pressure characteristics of the BA8050H24B-A blower. It provides engineers with essential performance data to evaluate air delivery capabilities against system resistance, guaranteeing stable and accurate aerosol sampling performance in precision particle detection.
Looking for different sizes or specifications?
Explore our full range of Blower for particle counter, or choose from similar models below.
Blower for particle counter
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
