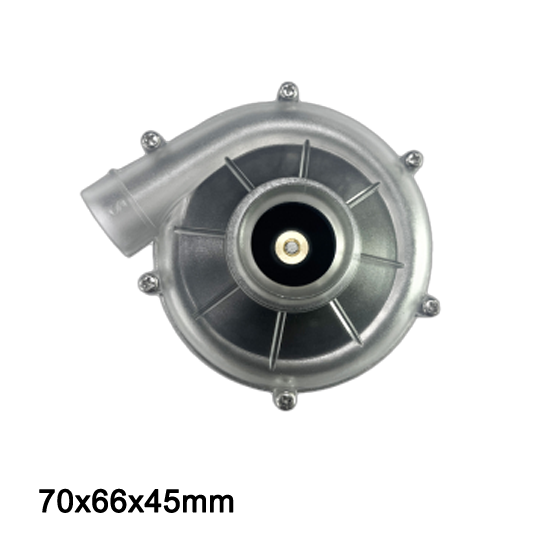

Blower for particle counter BA7050H24B-B
Blower for particle counter BA7050H24B-B
Voltage 24V
35000rpm/min
Max 17.6 cfm,9.3 kpa
Technical Specifications

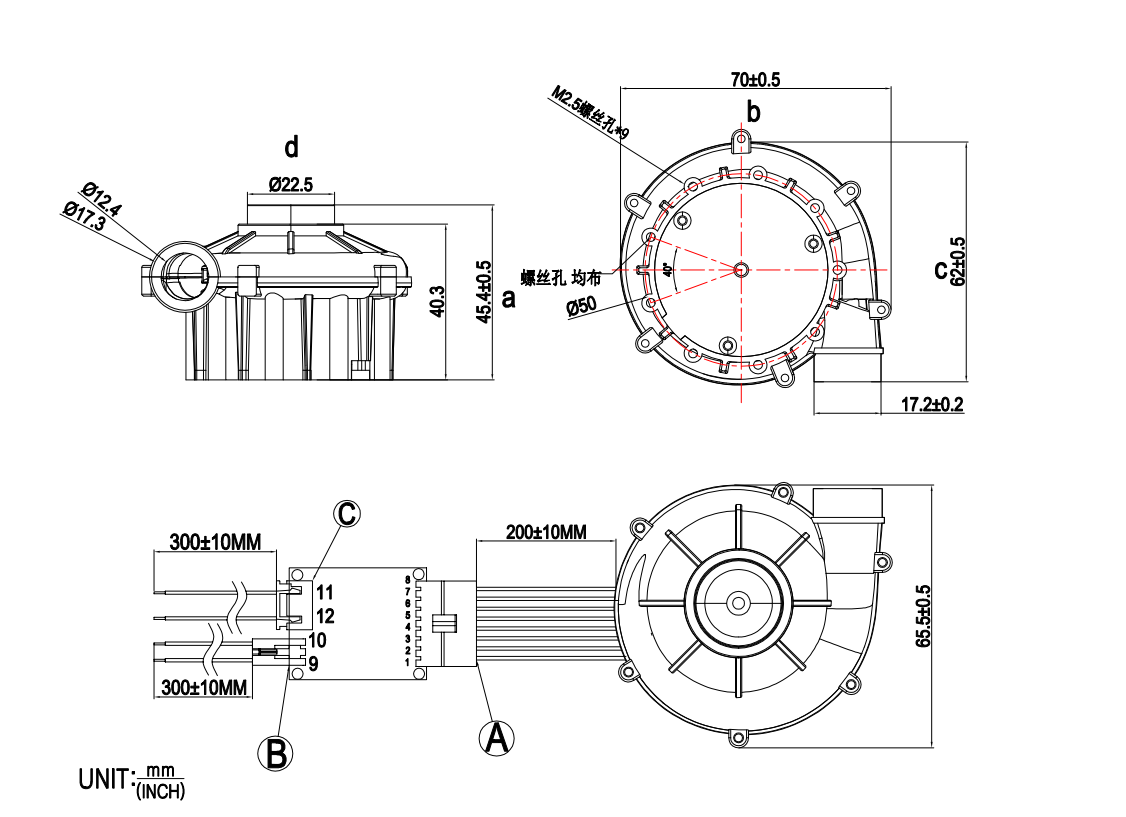

Blower for particle counter BA7050H24B-B dimensions drawing
The detailed mechanical dimensions drawing of the BA7050H24B-B blower for particle counters. This comprehensive engineering diagram clearly illustrates the outline dimensions, mounting hole locations, inlet and outlet specifications, as well as precise clearance boundaries, providing reliable structural references for smooth system integration.

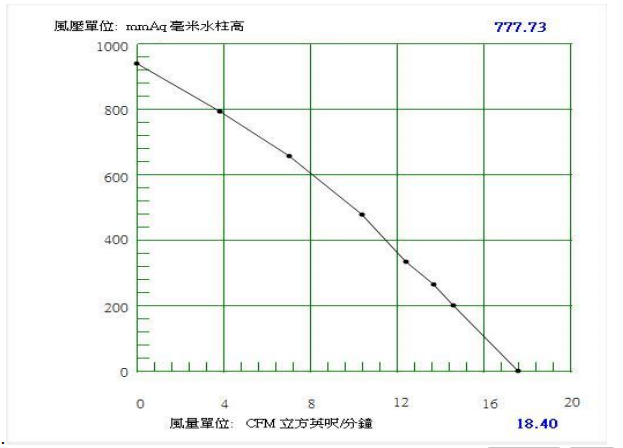

Blower for particle counter BA7050H24B-B PQ curve
The Performance (PQ) Curve of the BA7050H24B-B blower demonstrates the precise relationship between static pressure and airflow output under varying operating conditions. Specifically engineered for high-precision particle counters, this curve highlights the blower's capability to maintain stable sampling flow rates against systemic resistance, ensuring high repeatability, reliable aerosol drawing performance, and optimal dynamic response across its entire operational envelope.
Looking for different sizes or specifications?
Explore our full range of Blower for particle counter, or choose from similar models below.
Blower for particle counter
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
