Auto cleaning air blower BA8060H12B-E

12v,19.3cfm,12kpa
86*82*60 mm
38000rpm/min
Auto cleaning air blower

Request a Sample

Automatic Cleaning Function

Built-in self-cleaning system effectively prevents dust accumulation, reduces manual maintenance and ensures consistent airflow.

High Pressure & Stable Airflow

Designed for strong wind pressure and steady air output, ideal for cooling, ventilation, air drying and dust removal applications.

Long Life & Reliable Structure

Equipped with durable bearings and high-quality materials, supporting continuous operation and extended service life.

12V DC Energy-Saving Design

Efficient DC motor with low power consumption, compatible with industrial equipment and intelligent control systems.

Technical Specifications

ModelBA8060H12B-E
Size86*82*60 mm
Operating Voltage12 VDC
Rated Current
8.5 Amp
Rated Speed38000 RPM
Maximum Flow Rate19.3 CFM
Maximum Static Pressure12kpa

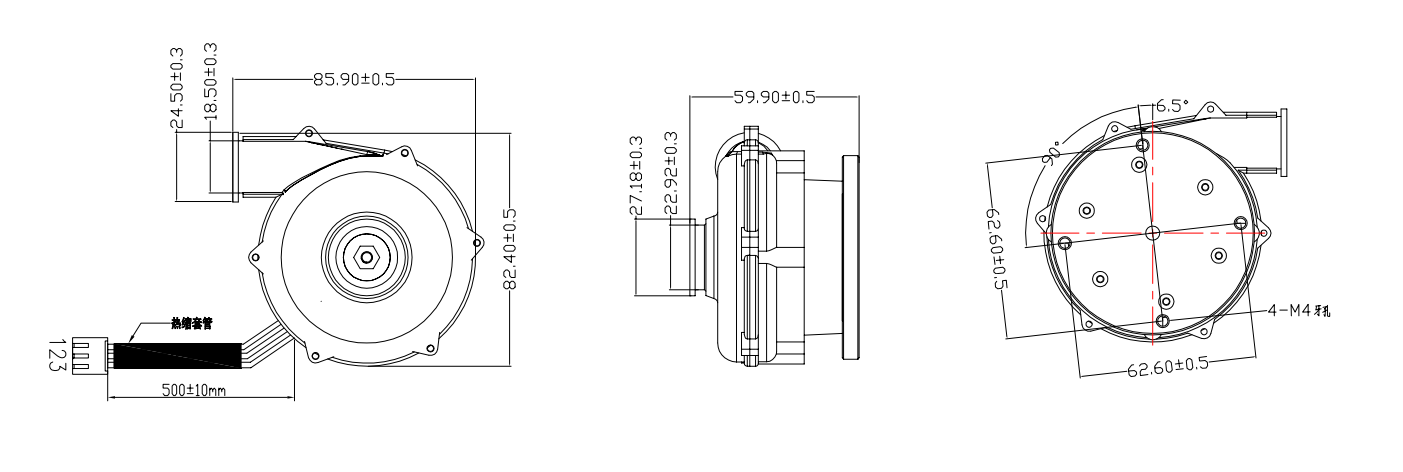

structure drawing of BA8060H12B-E

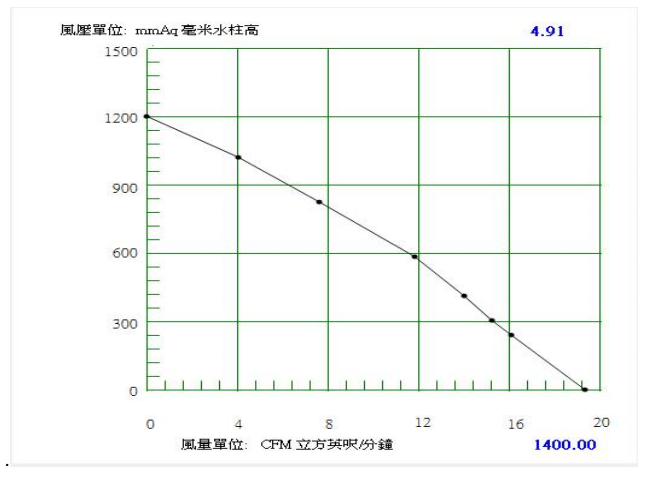

PQ curve for BA8060H12B-E

Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
