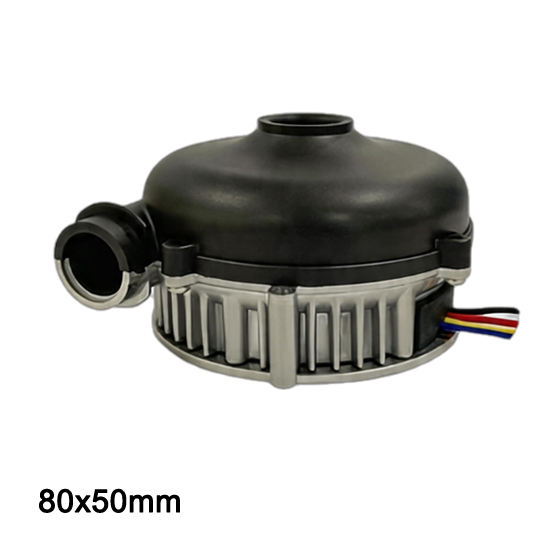

Auto cleaning air blower BA8050H12B-A
Self-Cleaning Air Blower BA8050H12B-A.png
Auto cleaning air blower BA8050H12B-A
Self-Cleaning Air Blower BA8050H12B-A.png

Auto cleaning air blower BA8050H12B-A

12v,20cfm,9kpa
80*50 mm
37000rpm/min
Auto cleaning air blower

Request a Sample

Compact 80×50mm Standard Size

Ultra-compact and standardized dimension, easy to integrate into vehicle camera modules, ADAS systems, surround-view cameras and other limited-space installations.

Automotive Grade Reliability

Designed and manufactured to automotive standards, supporting wide operating temperature, anti-vibration, anti-moisture and anti-dust, ensuring stable performance in harsh vehicle environments.

Anti-Fog & Anti-Dust Function

Stable airflow can also assist in anti-fog and dust removal for camera lenses and sensor windows, maintaining clear vision in rainy, foggy and dusty conditions.

Wide Voltage Compatibility

Adaptable to automotive electrical system voltage ranges, with over-current, over-voltage and reverse connection protection for safe and reliable use.

Technical Specifications

ModelBA8050H12B-A
Size80*50 mm
Operating Voltage12 VDC
Rated Current
5.3 Amp
Rated Speed37000 RPM
Maximum Flow Rate25.9 CFM
Maximum Static Pressure9kpa
structure drawing of BA8050H12B-A

Auto cleaning air blower BA8050H12B-A Structure Diagram

The structural design of the BA8050H12B-A auto-cleaning air blower is optimized for compact space efficiency and reliable automotive sensor integration. Built with precision-engineered internal components, it ensures maximum airflow output within an ultra-compact 80×50mm footprint.

Featuring durable, high-grade materials and an anti-vibration casing, this structural architecture effectively protects internal motor windings and bearings from harsh environmental elements, dust, and moisture while maintaining high operational stability in demanding automotive applications.

Auto cleaning air blower BA8050H12B-A PQ curve

The Pressure vs. Airflow (PQ) curve illustrates the outstanding aerodynamic performance of the BA8050H12B-A blower. Designed specifically for high static pressure requirements, it delivers powerful air impulse capabilities required for instant optics and sensor lens clearing.

As demonstrated in the curve, the unit maintains high airflow efficiency even under increased backpressure, ensuring smooth continuous purging or high-pressure burst cleaning without motor stalling or thermal overload.

PQ curve for BA8050H12B-A

🎬 Operation video for 80×50mm automotive sensor cleaing blower (BA8050H12B).

Looking for different sizes or specifications?

Explore our full range of Automotive Sensor Cleaning air blower, or choose from similar models below.

Automotive Sensor Cleaning air blower

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
