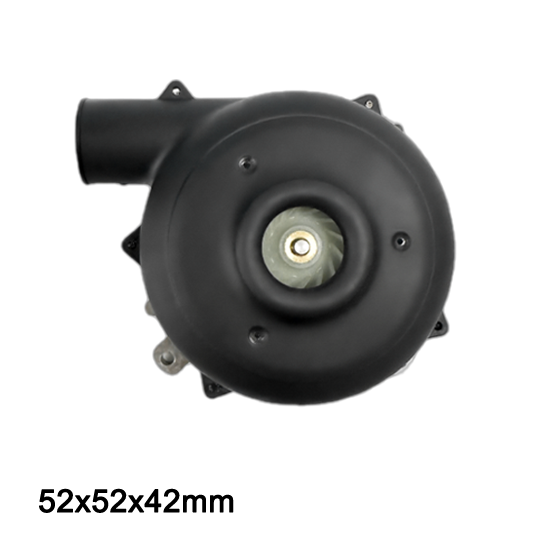

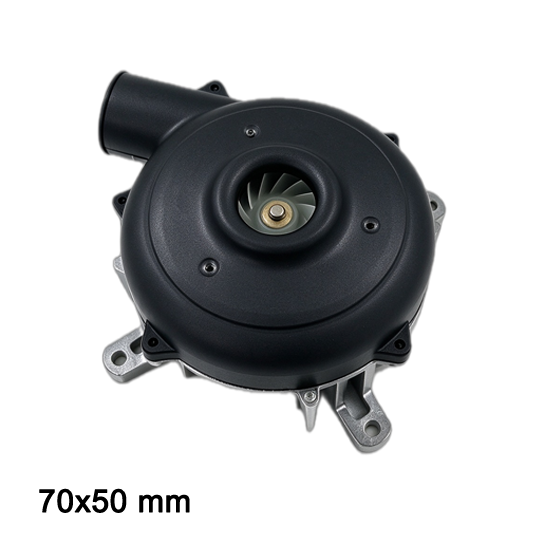

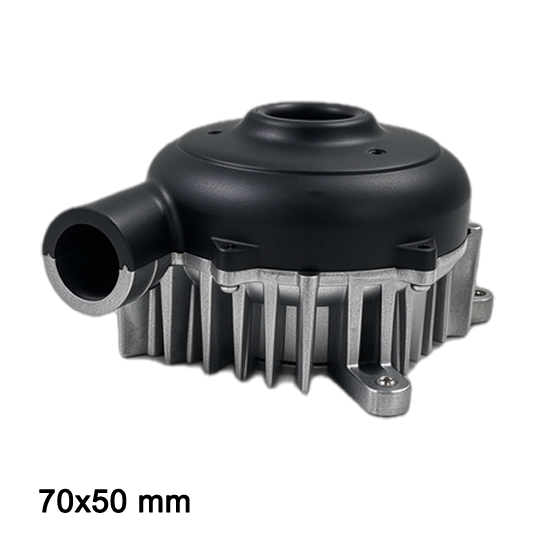

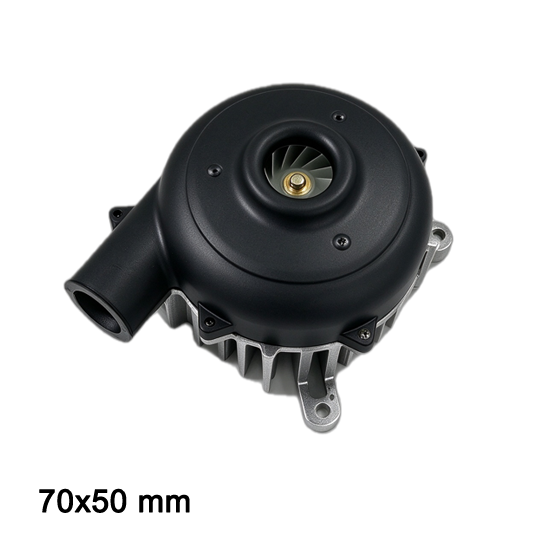

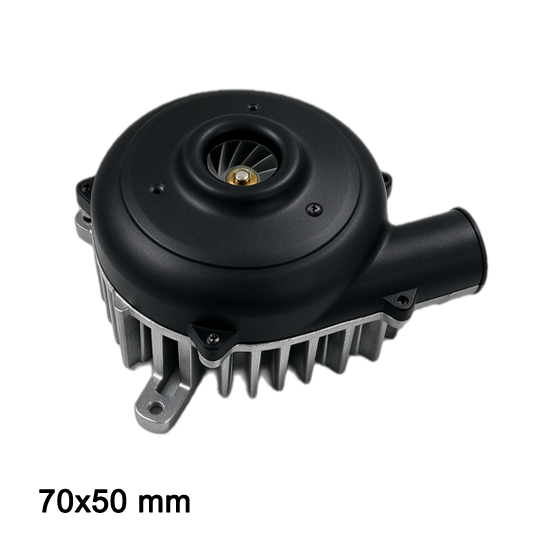

Automotive Sensor Cleaning air blower BA7050H12B-C-Unintegrated
Automotive Sensor Cleaning air blower BA7050H12B-C-Unintegrated
Voltage 12V
40000rpm/min
Max 15.5 cfm,7.9 kpa
Unintegrated Design & Supreme Spatial Integration Flexibility
Featuring a distinctive unintegrated, decoupled structural configuration, this blower allows for flexible, long-distance ducting connections to remote nozzles or sensor housings, thereby granting automotive OEMs and Tier 1 suppliers unparalleled routing and installation elasticity within space-constrained blind spots, side mirrors, or bumper interiors.
Enhanced Static Pressure & Multi-Channel Cleaning Capability
Benefiting from a more voluminous 7050 centrifugal impeller envelope, this blower unleashes superior static pressure and massive volumetric pulse airflow far outperforming conventional micro-fans, delivering the brute force required to instantly purge heavy mud from LiDAR sensors or simultaneously feed clean compressed air to multiple vehicle camera nozzles via split routing.
Automotive-Grade Thermal Endurance & Harsh Environment Resilience
Strictly engineered around rigorous automotive front-install benchmarks, this blower utilizes high-weather-resistance, flame-retardant raw materials and automotive-grade circuitries to sustain absolute structural integrity and electrical stamina under severe all-weather thermal shocks ranging from deep freeze (-40°C) to scorching summer heat (+85°C) and roadside muddy splashes.
Intelligent PWM Speed Control & Optimized Automotive EMC Shielding
Supporting pinpoint 4-wire Pulse Width Modulation (PWM) speed regulation and frequency generator (FG) feedback, it enables the vehicle ECU to dynamically throttle airflow based on driving velocities or contamination levels, while its fully EMC-shielded circuitry completely eliminates any electromagnetic interference with sensitive high-frequency automotive radars or infotainment components.
Technical Specifications
 Mechanical Structure Diagram.png "Automotive Sensor Cleaning air blower BA7050H12B-C (Unintegrated ) Mechanical Structure Diagram.png")

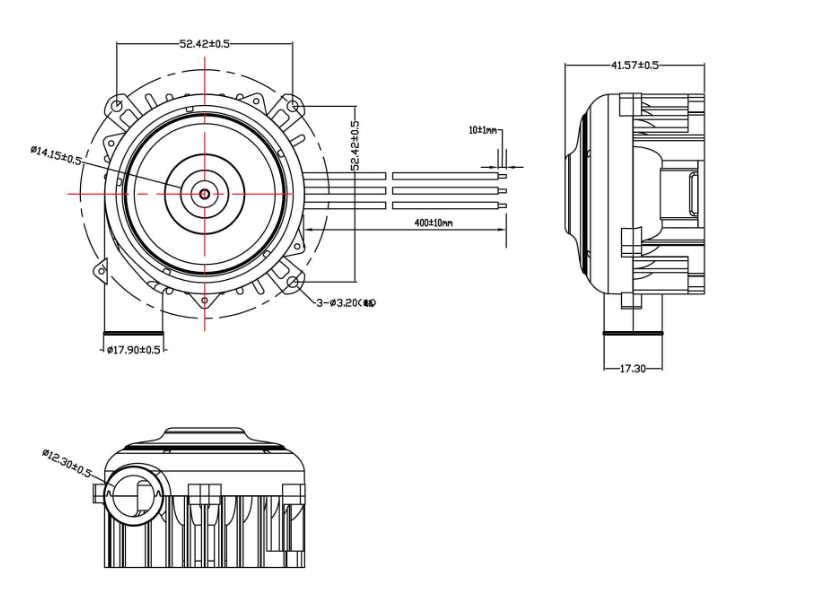

Automotive Sensor Cleaning air blower BA7050H12B-C (Unintegrated ) Mechanical Structure Diagram
This mechanical structure diagram details the precise outer dimensions, mounting configurations, and physical layout of the unintegrated BA7050H12B-C air blower designed specifically for automotive sensor cleaning systems. Engineered to withstand rigorous automotive environments, its compact structure allows for seamless integration into tight vehicle body spaces while ensuring maximum structural integrity and vibration resistance.
 Electrical Connection Diagram.png "Automotive Sensor Cleaning air blower BA7050H12B-C (Unintegrated ) Electrical Connection Diagram.png")

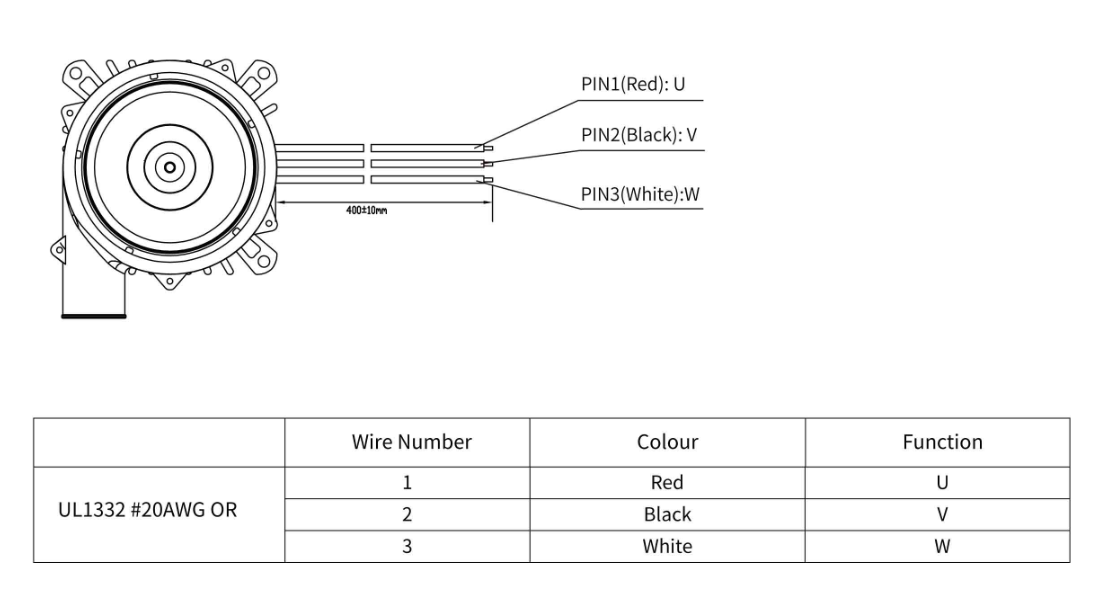

Automotive Sensor Cleaning air blower BA7050H12B-C (Unintegrated ) Electrical Connection Diagram
The electrical connection diagram illustrates the proper wiring instructions, power inputs, and signal definitions required for the BA7050H12B-C automotive sensor cleaning blower. It provides clear guidance for interfacing with vehicle power networks and control units, ensuring safe installation, reliable signal transmission, and robust protection against electrical faults during operation.

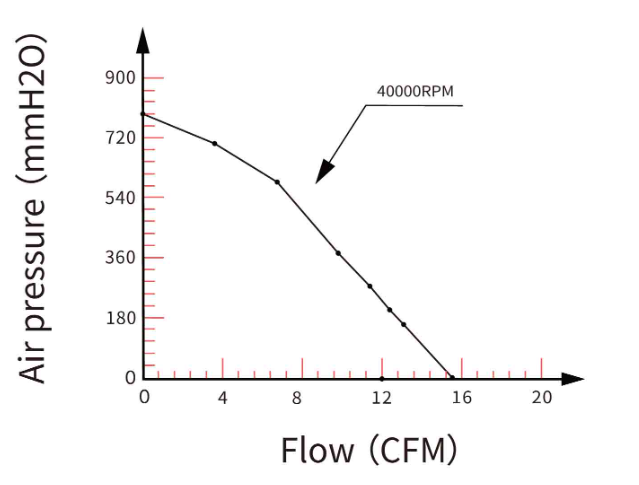

Automotive Sensor Cleaning air blower BA7050H12B-C (Unintegrated ) P-Q Curve
The Pressure-Flow (P-Q) curve characterizes the aerodynamic performance of the BA7050H12B-C air blower under varying operational loads. It clearly depicts the relationship between static pressure and airflow output, validating its capability to deliver the high-velocity air jets necessary for effectively clearing dust, debris, and water droplets from autonomous driving and ADAS camera and LiDAR sensors.
 P-Q Curve.png "Automotive Sensor Cleaning air blower BA7050H12B-C (Unintegrated ) P-Q Curve.png")
