Auto cleaning air blower BA7050H12B-B

12v,17.5cfm,8.3kpa
70*66*45 mm
35000rpm/min
Auto cleaning air blower

Request a Sample

Auto‑Cleaning & Anti‑Dust

Built-in automatic cleaning function prevents dust accumulation, maintains stable performance and greatly reduces manual maintenance.

High Pressure & Stable Airflow

Optimized fan structure provides strong wind pressure and consistent airflow, ideal for heat dissipation, ventilation and air supply.

Durable & Long Lifespan

High-quality brushless motor and reliable bearings support long‑time continuous operation with low noise and high stability.

Compact 70×50mm Design

Standard-sized structure for easy installation, widely used in purifiers, equipment cooling, ventilation systems and small industrial machines.

Technical Specifications

ModelBA7050H12B-B
Size70*66*45 mm
Operating Voltage12 VDC
Rated Current5.3 Amp
Rated Speed35000 RPM
Maximum Flow Rate17.5 CFM
Maximum Static Pressure8.3kpa

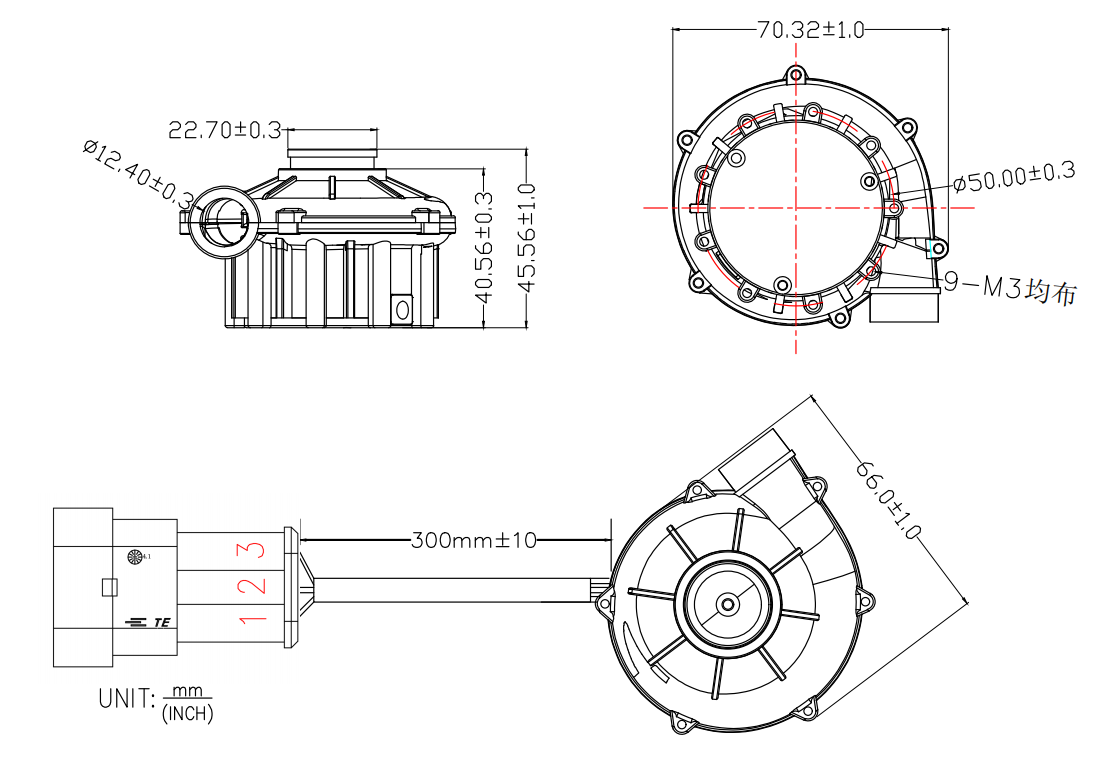

structure drawing of BA7050H12B-B

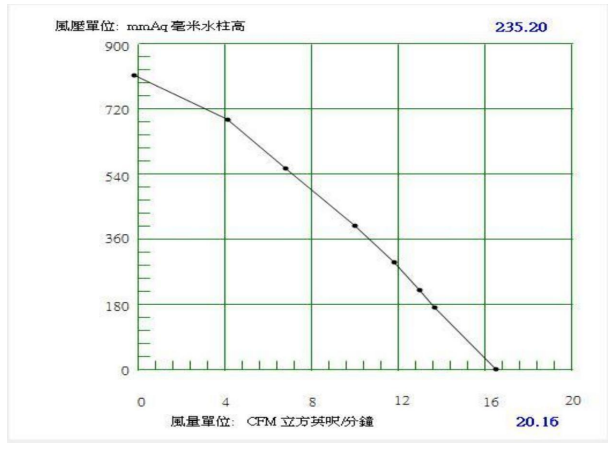

PQ curve for BA7050H12B-B

Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
