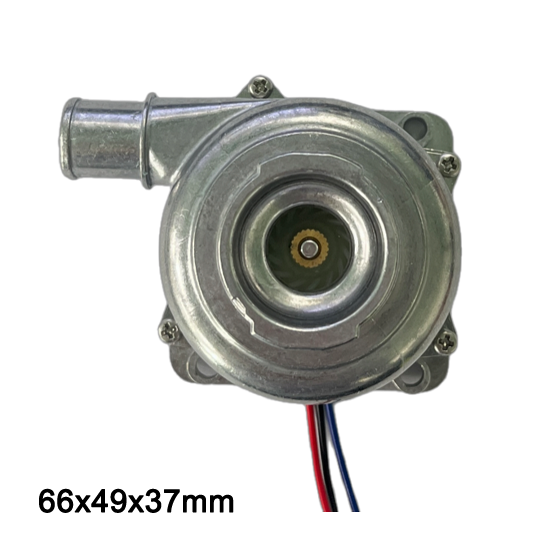

Auto cleaning air blower BA5030H12B-C
Auto cleaning air blower BA5030H12B-C

Auto cleaning air blower BA5030H12B-C

12v,8.2cfm,5.12kpa
66*49*37 mm
41000rpm/min
Auto cleaning air blower

Request a Sample

Auto-Cleaning & Low Maintenance

Built-in self-cleaning function prevents dust buildup, reduces frequent manual cleaning and keeps performance stable in harsh environments.

High Pressure & Steady Airflow

Optimized impeller and structure deliver strong wind pressure and consistent airflow, perfect for compact ventilation and heat dissipation.

Mini Size & Space-Saving

50×30mm small outline design, easy to install in limited spaces of intelligent devices, purifiers and small electrical equipment.

12V DC & Durable Operation

Reliable 12V DC brushless motor with long lifespan bearings, supporting continuous safe operation and low power consumption.

Technical Specifications

ModelBA5030H12B-C
Size66*49*37 mm
Operating Voltage12 VDC
Rated Current2.5 Amp
Rated Speed41000 RPM
Maximum Flow Rate8.2 CFM
Maximum Static Pressure5.12kpa

structure drawing of BA5030H12B-C

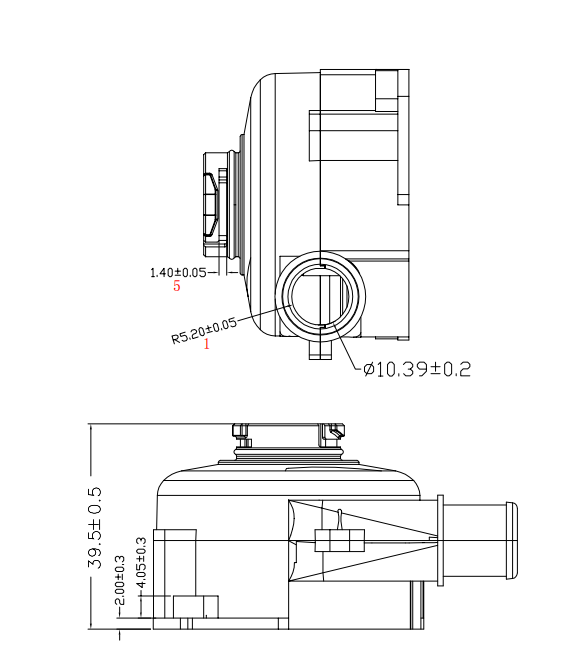

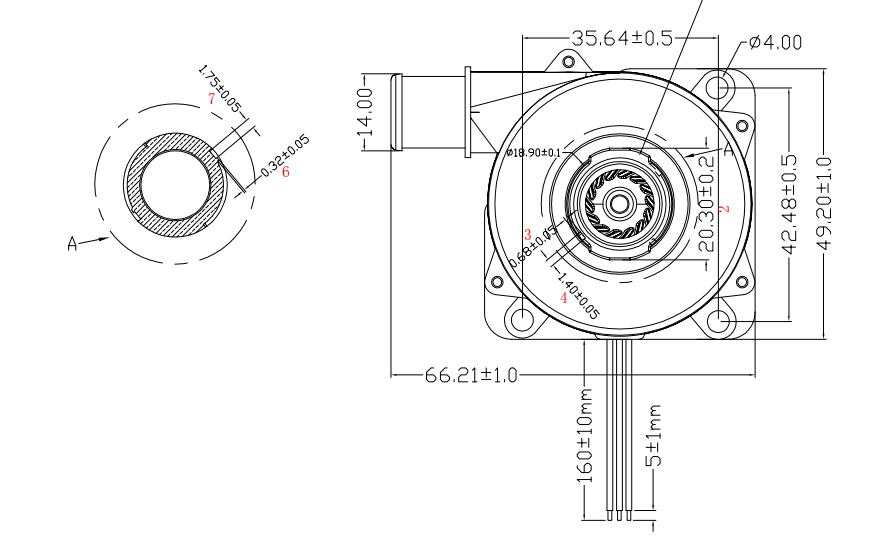

BA5030H12B-C Dimensional Drawing

PQ curve for BA5030H12B-C

Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
