24V Air Blower BA8060H24B-E-25KPA-Unintegrated
Non-integrated driver 24V
55000rpm/min
Max 28cfm,24kpa
BA8060H24B-E-25KPA-Unintegrated 24V High Pressure Air Blower
Up to 25KPa ultra-high static pressure centrifugal blower with unintegrated driver design, ideal for high-demand air supply and respiratory equipment cooling.
High Static Pressure 24V DC Air Blower BA8060H24B-E 86×82×60mm
Built-in high-performance brushless motor delivers stable 25KPa pressure output, bare blower unit without built-in control board for flexible external control.
Customizable Unintegrated 24V Air Blower BA8060H24B-E-25KPA
Compact 868260mm dimension, 25KPa powerful air pressure, supports customized external drive circuit and PWM speed regulation development.
Heavy Duty 24V Centrifugal Air Blower BA8060H24B-E-25KPA
Stable 24V power input, remarkable 25KPa high pressure performance and compact size, widely used in CPAP devices, pipeline ventilation and thermal management systems.

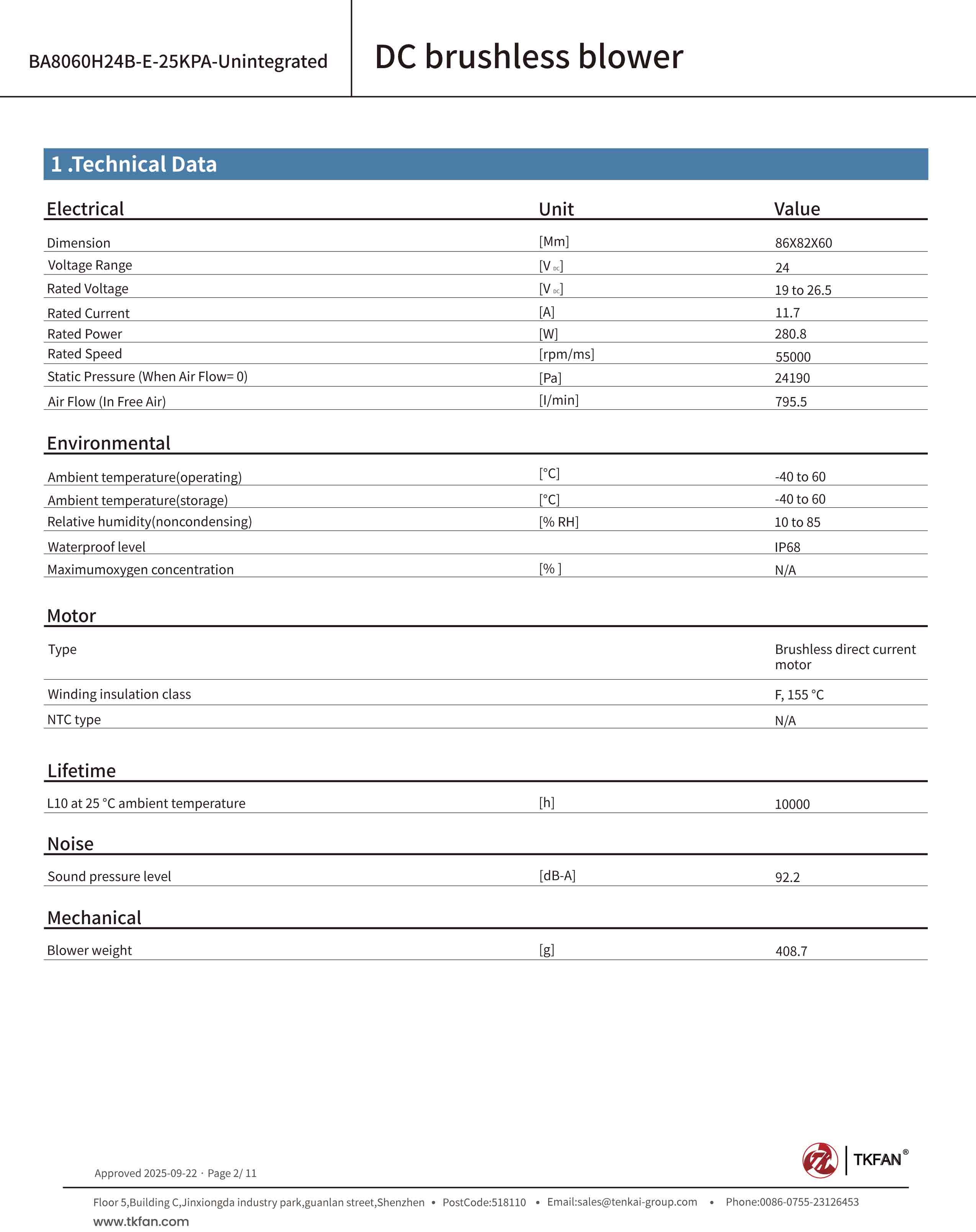

Technical Specifications
Note: This video demonstrates the operation and performance of the BA8060H24B-E 25kPa high-pressure blower.
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
