24V Air Blower BA8060H24B-B-Unintegrated
24V Air Blower BA8060H24B-B-Unintegrated

24V Air Blower BA8060H24B-B-Unintegrated

Non-integrated driver 24V
52000rpm/min
Max 33cfm18kpa

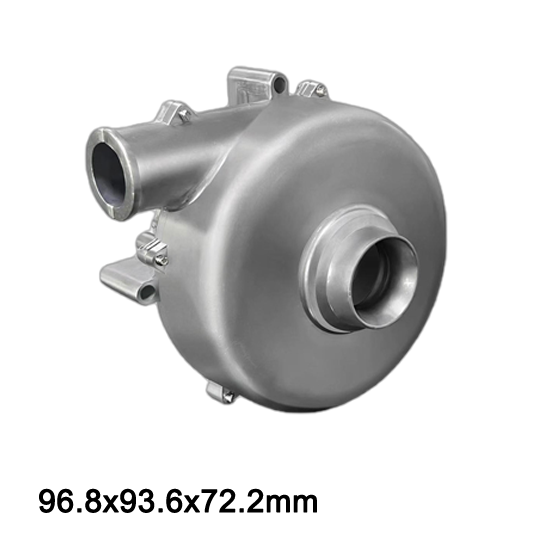

High Flow BA8060H24B-B 24V Centrifugal Air Blower 96.8×93.6×72.2mm

Brushless DC high-speed motor delivers massive airflow, unintegrated main unit for customized circuit integration and independent drive system matching.

Long Lifespan Unintegrated 24V Air Blower BA8060H24B-B

Premium ball bearing BLDC motor supports 24-hour continuous operation, bare blower body without built-in control board for diversified secondary development.

Customizable BA8060H24B-B-Unintegrated 24V DC Air Blower

Standard mechanical dimension with no integrated drive module, easy to match external PWM control and customized driving circuits for industrial thermal management.

Reliable Heavy Duty 24V Air Blower BA8060H24B-B 96.8×93.6×72.2mm

Stable 24V power supply, unintegrated structure with compact overall size, widely applied to CPAP devices, industrial cooling and pipeline air supply systems.

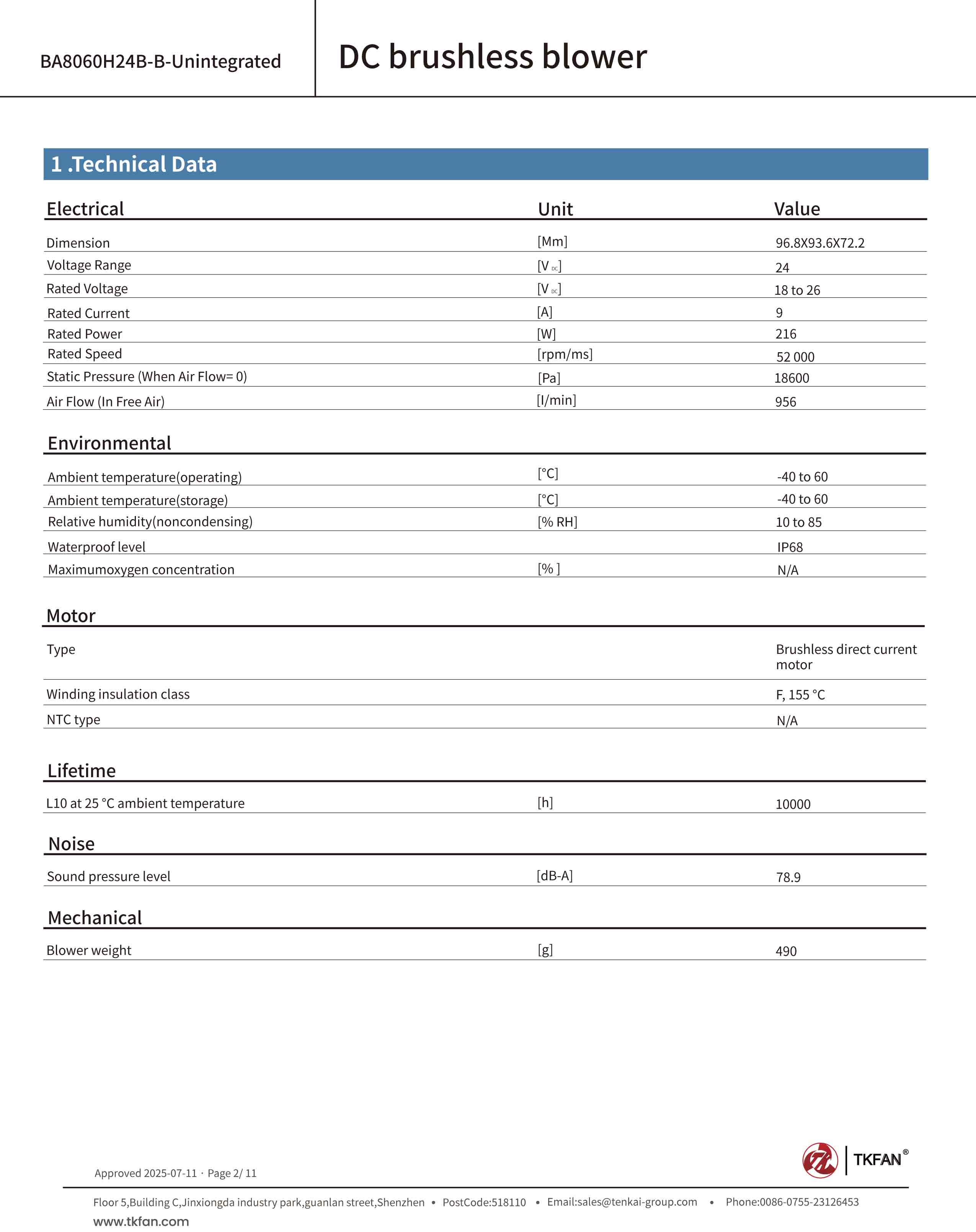

Technical Specifications

ModelBA8060H24B-B-Unintegrated
Size96.8*93.6*72.2 mm
Operating Voltage24 VDC
Rated Current9 Amp
Rated Speed52000 RPM
Maximum Flow Rate33.75 CFM
Maximum Static Pressure18 kpa

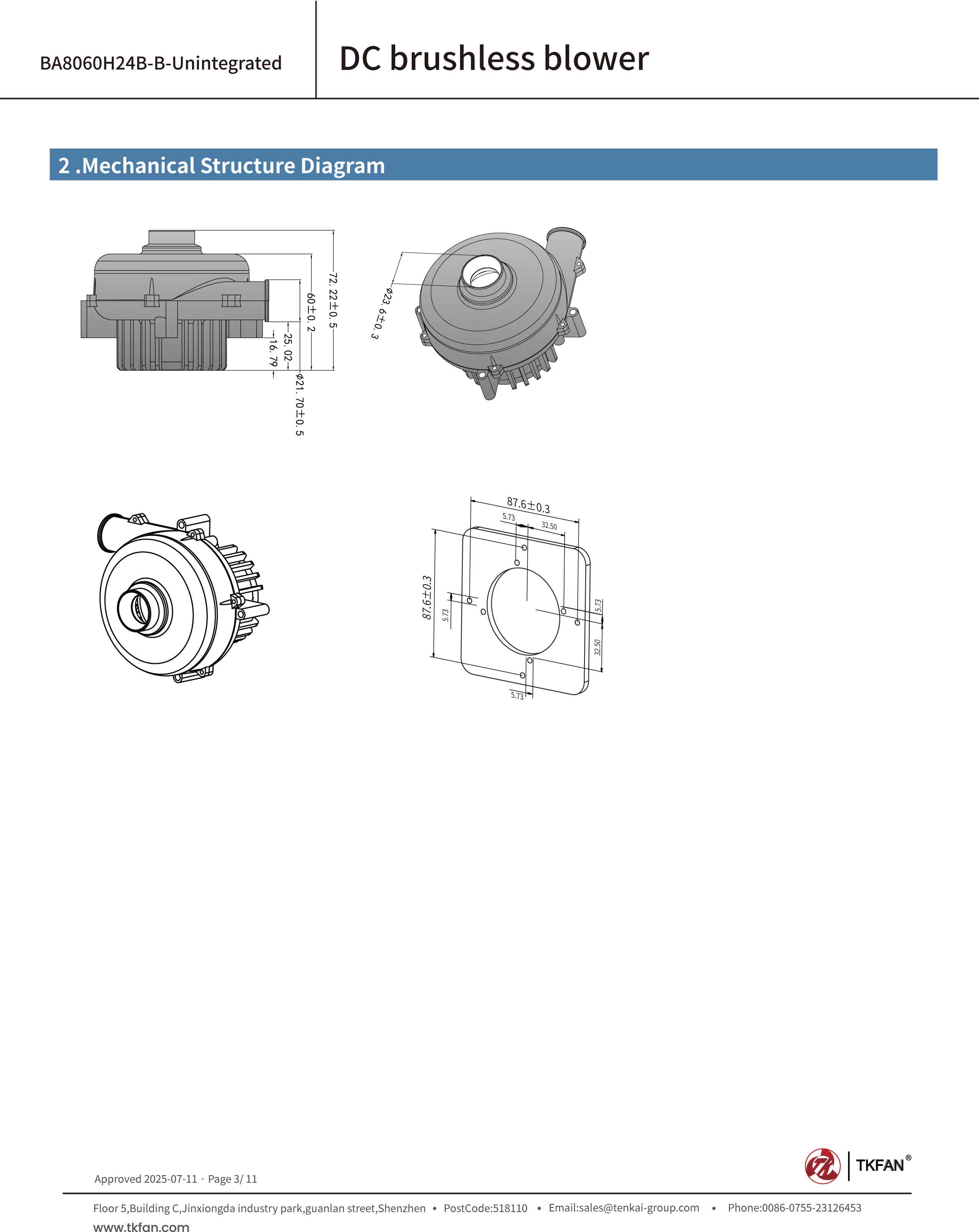

24V Air Blower BA8060H24B-B-Unintegrated Mechanical Structure Diagram

24V Air Blower BA8060H24B-B-Unintegrated Mechanical Structure Diagram

This detailed structural schematic provides comprehensive dimensional measurements, mounting hole layouts, and overall mechanical dimensions for the BA8060H24B-B unintegrated 24V air blower. Engineered with high-precision tolerances and a robust structural framework, it guarantees optimal airflow dynamics, exceptional structural integrity, effective thermal dissipation, and seamless mechanical installation into diverse OEM industrial devices, medical apparatus, and precision ventilation systems.

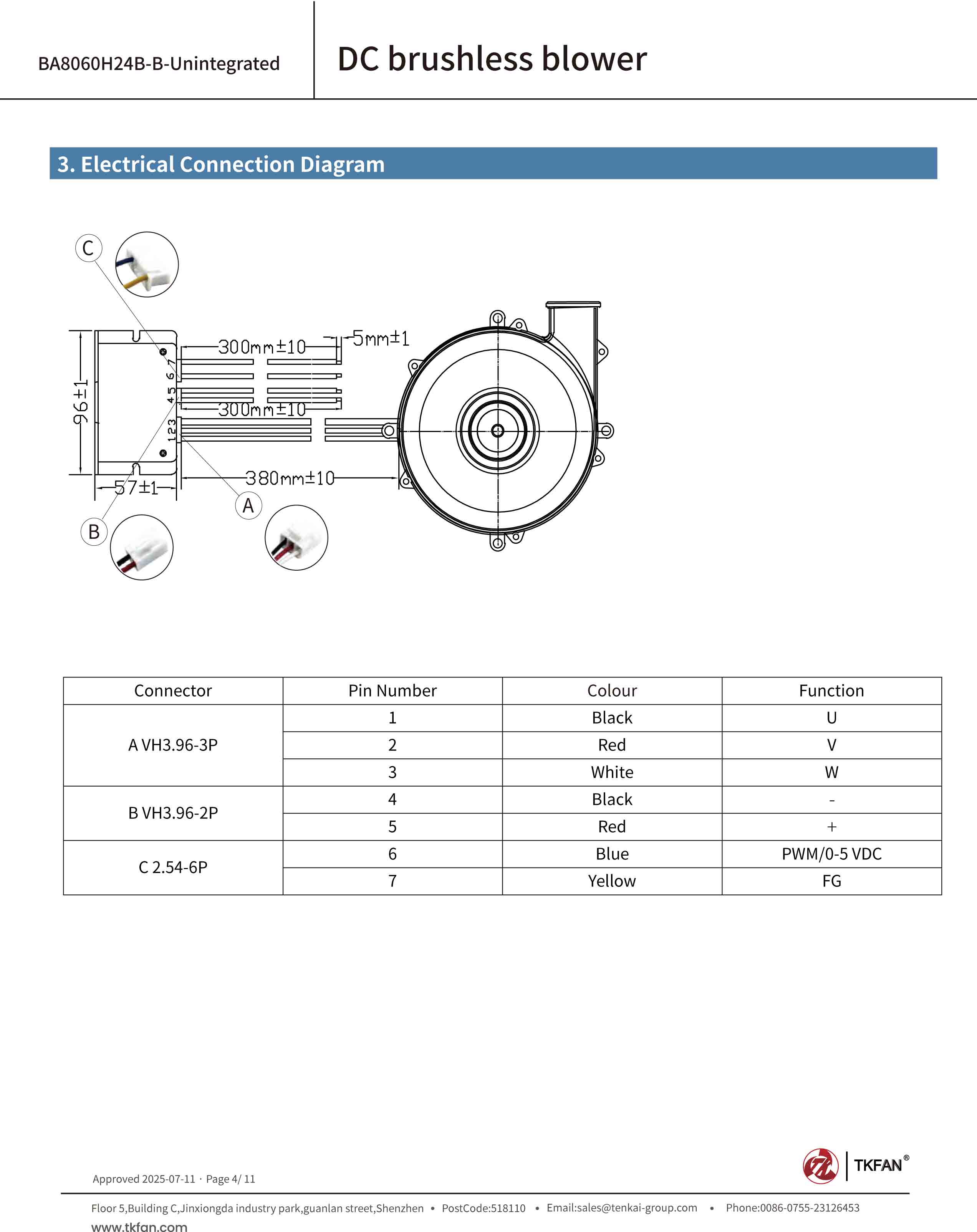

24V Air Blower BA8060H24B-B-Unintegrated Electrical Connection Diagram

24V Air Blower BA8060H24B-B-Unintegrated Electrical Connection Diagram

The electrical connection diagram clearly illustrates the pinout configurations, power supply wiring guidelines, and comprehensive signal interface specifications tailored for the unintegrated driver setup. Built to ensure high operational safety and electrical stability, it features well-defined terminal mappings for variable speed control (such as PWM and 0-10V analog inputs), real-time tachometer feedback signals, and proper system grounding to facilitate precise performance regulation.

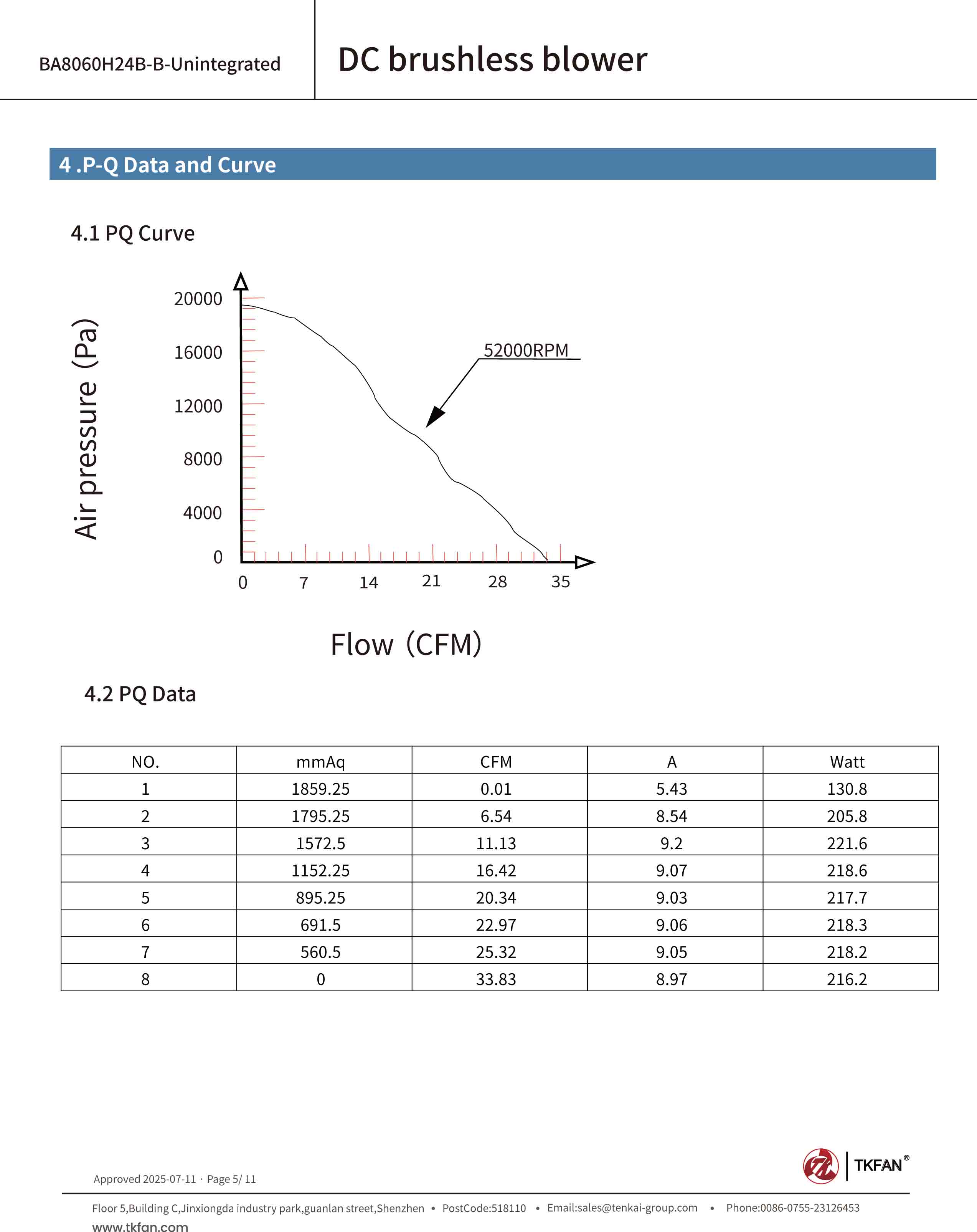

24V Air Blower BA8060H24B-B-Unintegrated P-Q Curve

24V Air Blower BA8060H24B-B-Unintegrated P-Q Curve

The Pressure versus Flow (P-Q) performance curve explicitly demonstrates the outstanding aerodynamic efficiency, steady static pressure capacity, and high pressure-to-airflow ratio characteristic of the BA8060H24B-B series. It serves as a vital engineering reference tool, enabling system designers and technicians to accurately evaluate operating points, match system impedance, and optimize duty cycles under demanding high-resistance operational environments.

24V Air Blower BA8060H24B-B-Unintegrated Video Demonstration

Watch our advanced industrial high-pressure air blower operating dynamically in simulated real-world application scenarios. Engineered specifically for maximum reliability, low acoustic noise, and sustained high aerodynamic performance, this unintegrated blower stands out as the ultimate solution for automated packaging air cushion machines, advanced medical cabinets, fuel cell systems, and complex electronics cooling environments that demand unwavering airflow consistency.
