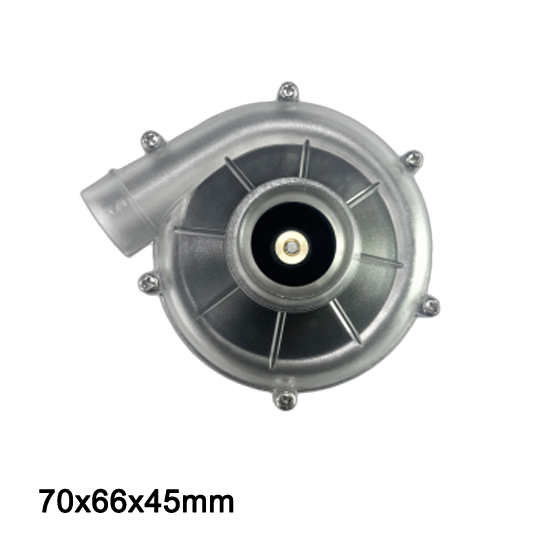

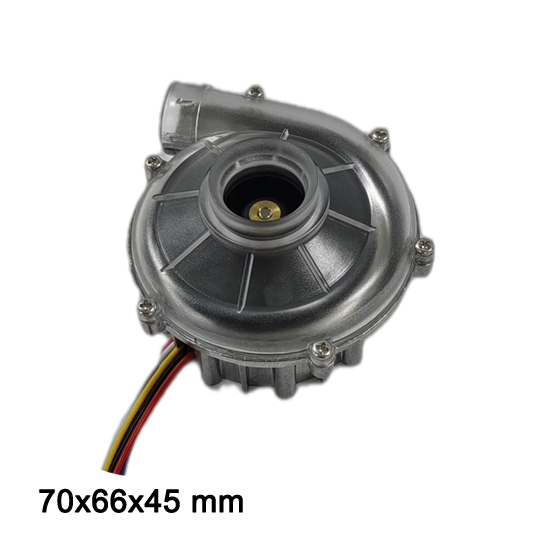

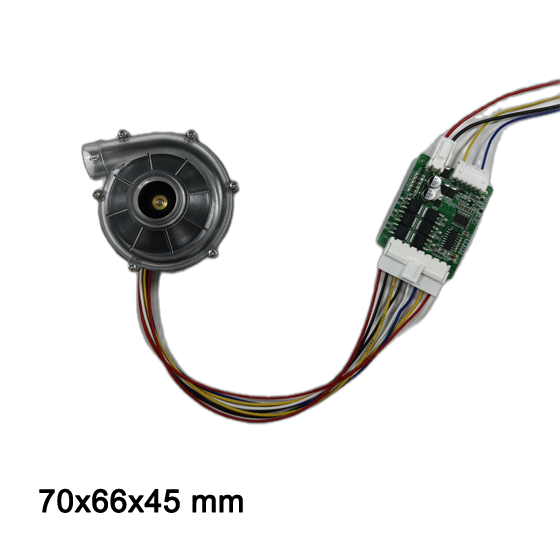

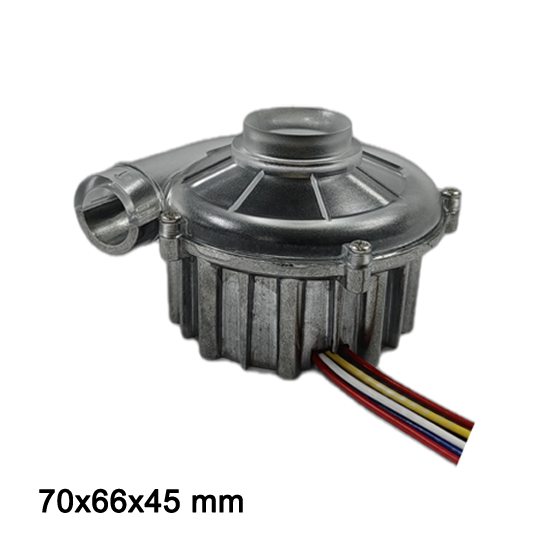

24V Air Blower BA7050H24B

Voltage 24V
37000rpm/min
Max 17.8 cfm,7.89 kpa

High Static Pressure Air Output

It produces powerful airflow with excellent static pressure, perfectly solving heat dissipation problems of high-resistance and enclosed equipment.

Stable 24V DC Operation

Built with standard 24V DC working voltage, maintaining reliable running state and matching diverse industrial power supply systems.

Durable Shockproof Structure

Reinforced internal construction owns strong vibration resistance, capable of stable long-term continuous daily operation.

Low Noise & Wide Application

Optimized structure ensures quiet working performance, widely used for ventilation and cooling of machinery and electronic products.

Technical Specifications

ModelBA7050H24B
Size70*66*45 mm
Operating Voltage24 VDC
Rated Current2.9 Amp
Rated Speed37000 RPM
Maximum Flow Rate17.8 CFM
Maximum Static Pressure7.89 kPa

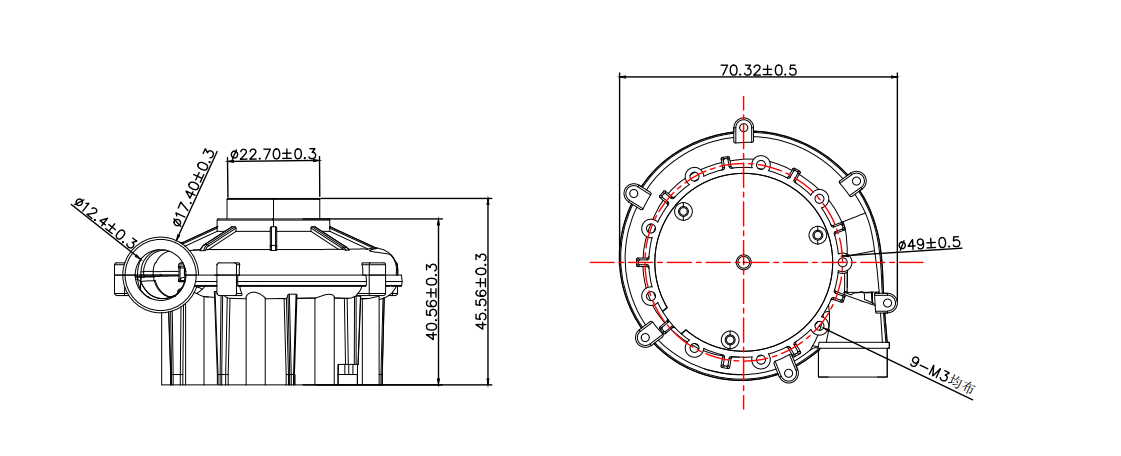

Structure drawing of 24V Air Blower BA7050H24B.png

24V Air Blower BA7050H24B Mechanical Structure Diagram

This detailed mechanical structure diagram of the 24V Air Blower BA7050H24B clearly outlines precise dimensional specifications, critical mounting hole geometries, and overall profile limits. Meticulously engineered for advanced industrial applications and analytical instruments, this comprehensive drawing provides dependable structural dimensions to ensure seamless alignment, stable enclosure compatibility, and straightforward integration into compact system assemblies.

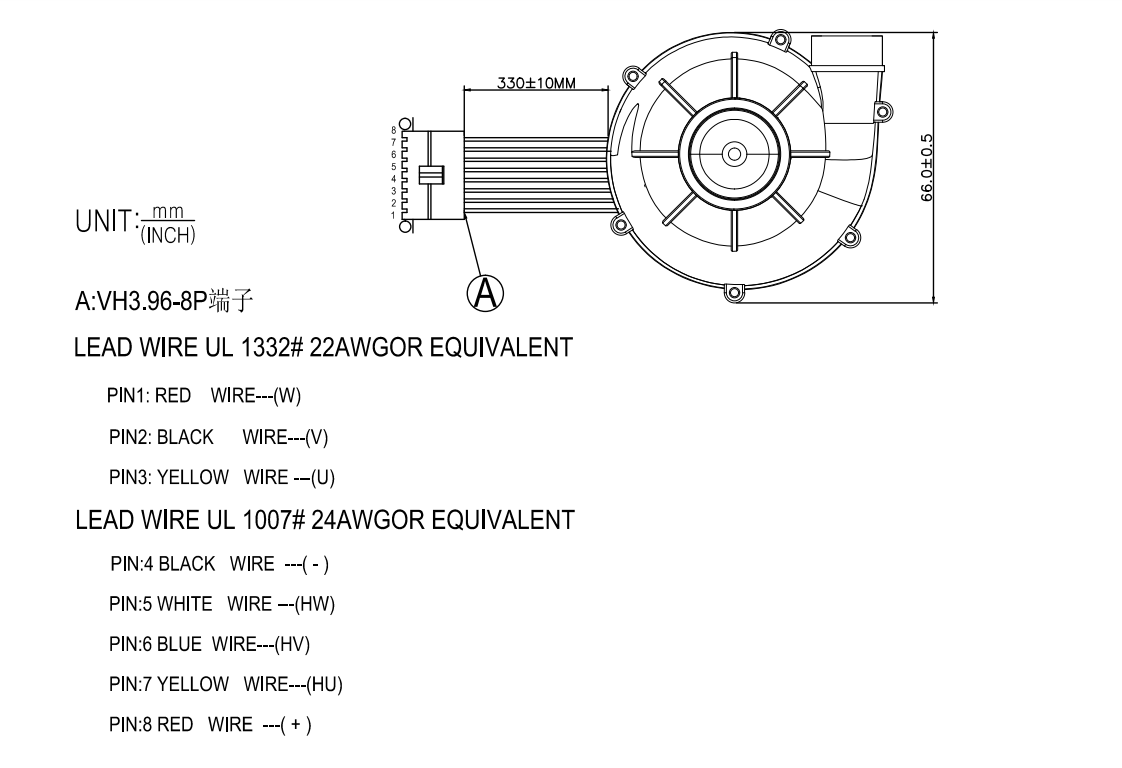

Structure drawing of 24V Air Blowers BA7050H24B.png

24V Air Blower BA7050H24B Electrical Connection Diagram

The electrical connection diagram for the 24V Air Blower BA7050H24B provides clear guidance on pin definitions, power input requirements, and control signal wiring. Designed to support reliable power distribution and safe operation, this schematic helps engineers configure standard voltage inputs and auxiliary signal lines correctly, preventing wiring errors and ensuring stable, long-term electrical performance within your equipment.

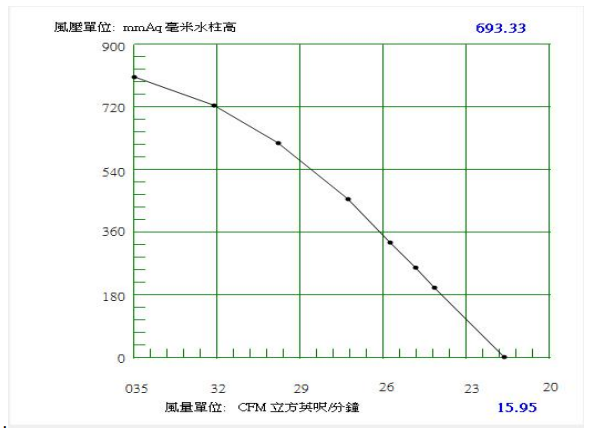

PQ curve for 24V Air Blower BA7050H24B.png

24V Air Blower BA7050H24B P-Q Curve

The Performance (P-Q) Curve for the 24V Air Blower BA7050H24B illustrates the robust relationship between static pressure and airflow output under diverse operational workloads. Specially tuned for high-precision demands, this curve highlights the blower's outstanding capability to sustain steady sampling performance against rigorous system resistance, guaranteeing superior operational repeatability, reliable airflow delivery, and exceptional dynamic responsiveness across its entire operating envelope.
