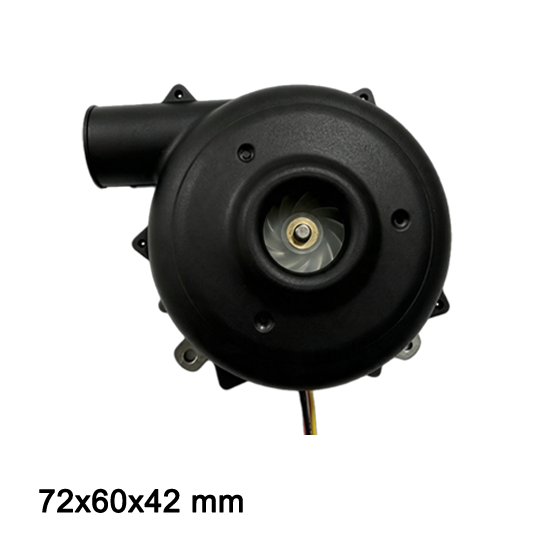

24V Air Blower BA7050H24B-C-Unintegrated
Voltage 24V
40000rpm/min
Max 16 cfm,9.14 kpa
Technical Specifications

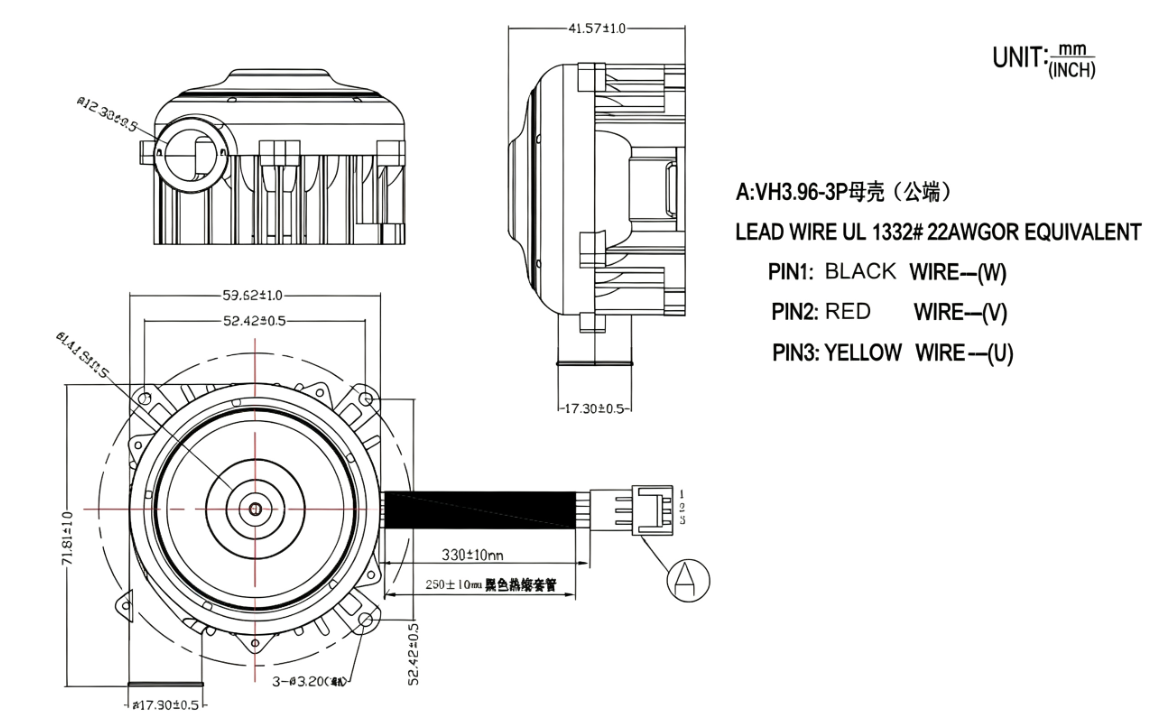

24V Air Blower BA7050H24B-C-Unintegrated Mechanical Structure Diagram
This mechanical structure diagram outlines the precise physical dimensions, mounting hole layouts, and overall geometry of the unintegrated 24V Air Blower model BA7050H24B-C. Designed for optimal spatial efficiency, the layout provides engineers with critical structural references to ensure precise installation, secure mounting, and smooth integration into diverse industrial, medical, or automotive ventilation systems.

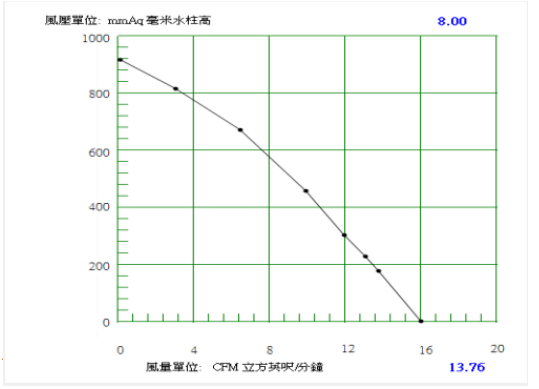

24V Air Blower BA7050H24B-C-Unintegrated P-Q Curve
The Pressure-Flow (P-Q) curve illustrates the aerodynamic performance characteristics of the 24V Air Blower BA7050H24B-C (Unintegrated) across various operating conditions. It clearly depicts the relationship between static pressure and airflow delivery, allowing system designers to accurately evaluate performance metrics, select optimal operating points, and match the blower capabilities to specific application requirements.
24V Air Blower BA7050H24B-C-Unintegrated
Check out this detailed video demonstration of the 24V Air Blower BA7050H24B-C-Unintegrated in action. It showcases the high-pressure performance, compact design, and advanced operational features such as PWM and FG functions, giving you a clear and intuitive view of its capabilities in real-world applications.
Looking for different sizes or specifications?
Explore our full range of 24V Blower, or choose from similar models below.
24V Blower
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
