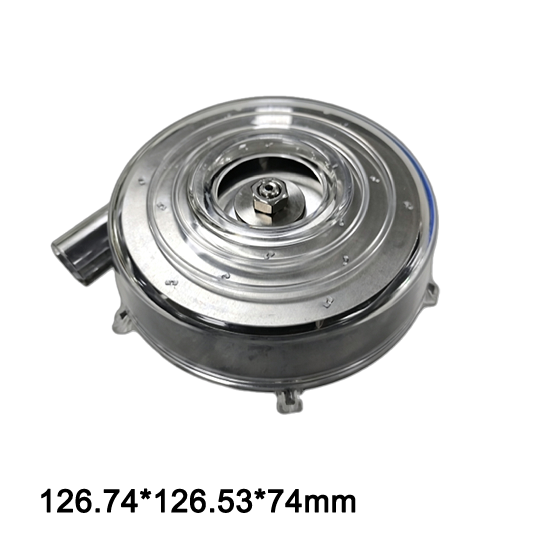

BA12060HH24B-A 24V Air Blower (Direct Replacement for AMETEK 150016-73 / 150016 Series)
Voltage 24V
11000rpm/min
Max 26.3 cfm,3.2 kpa
High-Pressure Centrifugal Output
Engineered with an advanced aerodynamic volute and high-speed impeller, this 24V blower delivers exceptional static pressure up to 8.4 kPa, ensuring stable and strong airflow even in high-resistance medical ventilation or industrial pneumatic systems.
Ultra-Long L10 Lifespan with Premium Bearings
Equipped with premium Japanese NMB dual ball bearings and an optimized heat-dissipation motor stator, the BA12060HH24B-A boasts an impressive L10 operational lifespan of 50,000 to 70,000 hours under continuous duty cycles.
Biocompatible & Zero-VOC Eco-Friendly Materials
The entire air passage and centrifugal plastic impeller are manufactured using strictly certified eco-friendly polymers that fully comply with ISO 10993 biological evaluation standards, guaranteeing zero toxic outgassing or hazardous particulate shedding for absolute patient safety.
Millisecond-Level Closed-Loop Dynamic Response
Driven by a sensorless brushless DC scheme, the built-in driver board seamlessly processes PWM or 0-5V analog signals, enabling millisecond-level step adjustments in motor RPM to instantly adapt to varying clinical therapy modes like CPAP, APAP, and BiPAP.
Technical Specifications
Direct Drop-In Replacement for AMETEK® 150016-73 & 150016 Series
The TKFAN BA12060HH24B-A 24V brushless DC air blower is engineered as a high-reliability, cost-effective alternative to the AMETEK 150016-73 (150016 series) blower. Featuring matching mounting dimensions, rapid dynamic response, and high-pressure performance (up to 3.2 kPa at 11,000 RPM), it provides seamless compatibility for medical ventilators, CPAP devices, and industrial pneumatic systems.
| Specifications | AMETEK® 150016-73 / 150016 Series | TKFAN BA12060HH24B-A (Alternative) |
|---|---|---|
| Operating Voltage | 24 VDC | 24 VDC |
| Rated Speed | High Speed BLDC | 11,000 RPM |
| Max Airflow | Equivalent Output | 26.3 CFM |
| Max Static Pressure | High Static Pressure | 3.2 kPa |
| Dimensions / Form Factor | Compact Centrifugal Blower | 126.74 × 126.53 × 74 mm (Drop-in fit) |
| Lifespan & Bearings | Standard OEM Grade | NMB Dual Ball Bearings (50,000+ Hrs L10) |
* Notice: AMETEK® is a registered trademark of AMETEK, Inc. All manufacturer names and part numbers are used for cross-reference and compatibility purposes only.

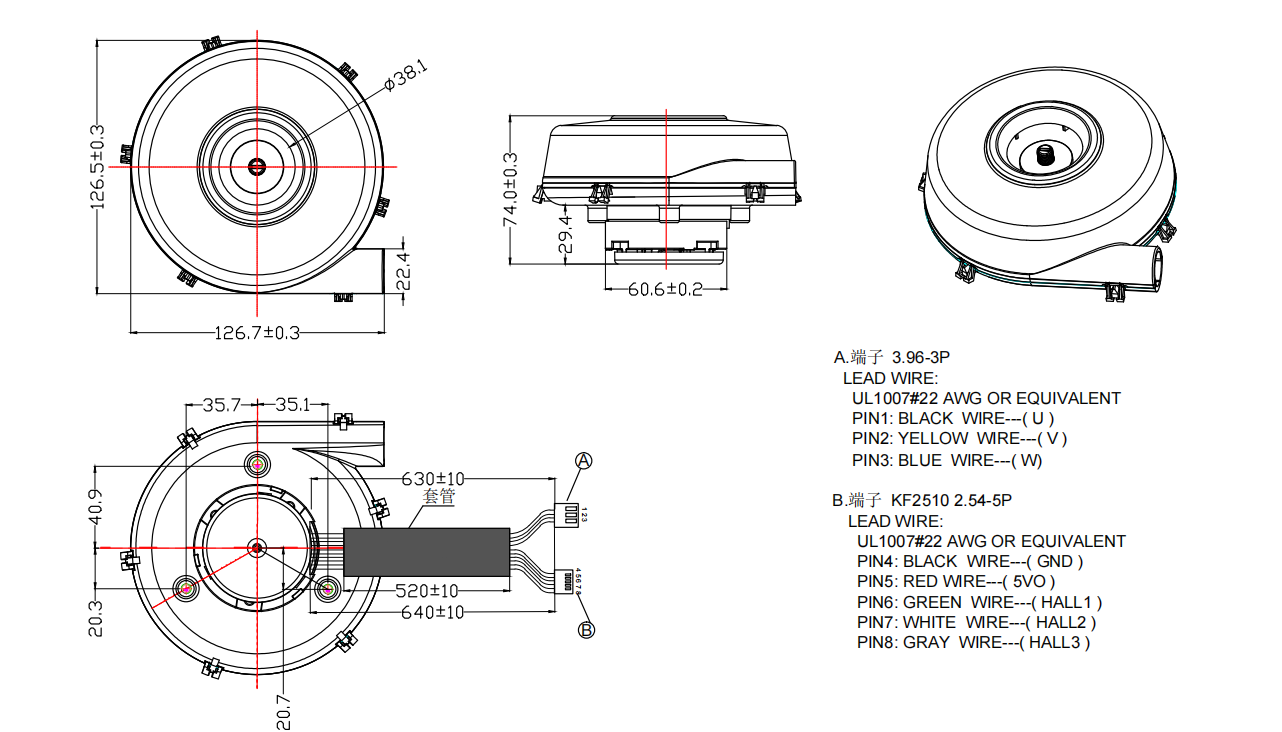

BA12060HH24B-A 24V Air Blower (Direct Replacement for AMETEK 150016-73 / 150016 Series) Structure Diagram
The structure diagram outlines the meticulous engineering and precise outer dimensions of the BA12060HH24B-A centrifugal blower. Designed specifically as a pin-to-pin replacement for the AMETEK 150016-73 series, its housing profile and mounting interfaces match original OEM requirements perfectly.
Featuring streamlined internal scroll geometry and high-grade dual ball bearings, this architecture minimizes turbulence, reduces acoustic noise, and guarantees maximum durability during continuous medical or industrial duty cycles.

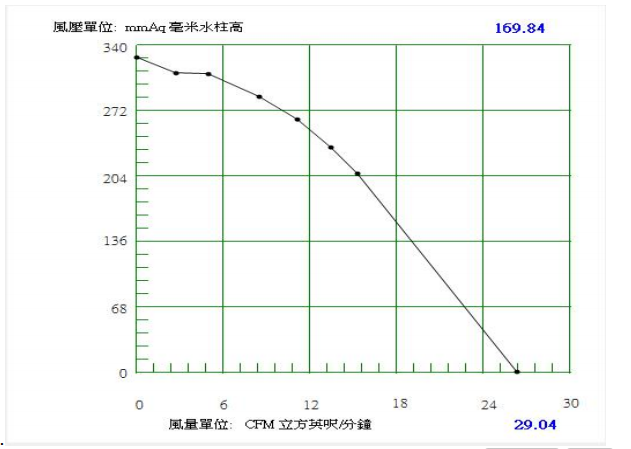

BA12060HH24B-A 24V Air Blower (Direct Replacement for AMETEK 150016-73 / 150016 Series) PQ curve
The Pressure-Flow (PQ) performance curve illustrates the exceptional aerodynamic output of the BA12060HH24B-A blower. Engineered to achieve high static pressure up to 3.2 kPa alongside robust airflow, it provides exact pneumatic match for demanding respiratory and ventilation systems.
The curve provides comprehensive engineering insights into motor efficiency, speed regulation up to 11,000 RPM, and operational stability across varied backpressure loads, ensuring dependable system integration.
* Demonstration video showing operational performance and airflow testing of the BA12060HH24B 24V brushless blower.
