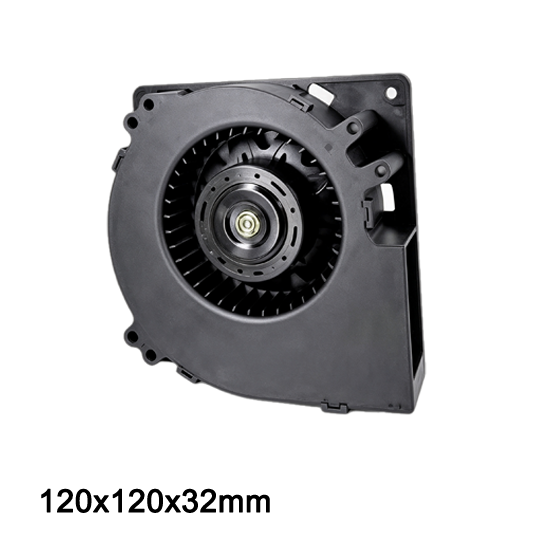

24V Air Blower BA12032HV24X-B
Voltage 48V
5000rpm/min
Max 65.96 cfm,0.83 kpa
Request a Sample
Structure Drawing
Technical Specifications
24V Air Blower BA12032HV24X-B Structure Diagram

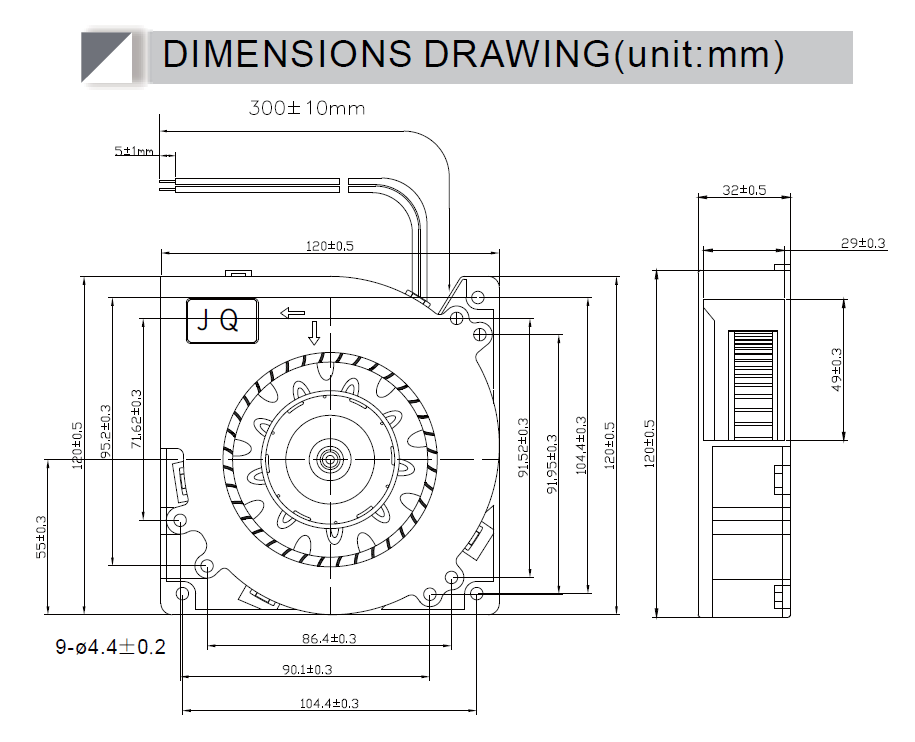

The structure diagram outlines the precise physical dimensions, mounting hole locations, and internal aerodynamic profile of the 24V Air Blower BA12032HV24X-B. Its compact 12032 form factor is optimized for seamless integration into constrained industrial spaces and sophisticated equipment enclosures.
Manufactured with high-strength engineering plastics and precision-balanced components, the sturdy housing structure effectively absorbs operational vibrations, reduces acoustic noise, and guarantees high reliability over extended operating cycles.
24V Air Blower BA12032HV24X-B PQ curve

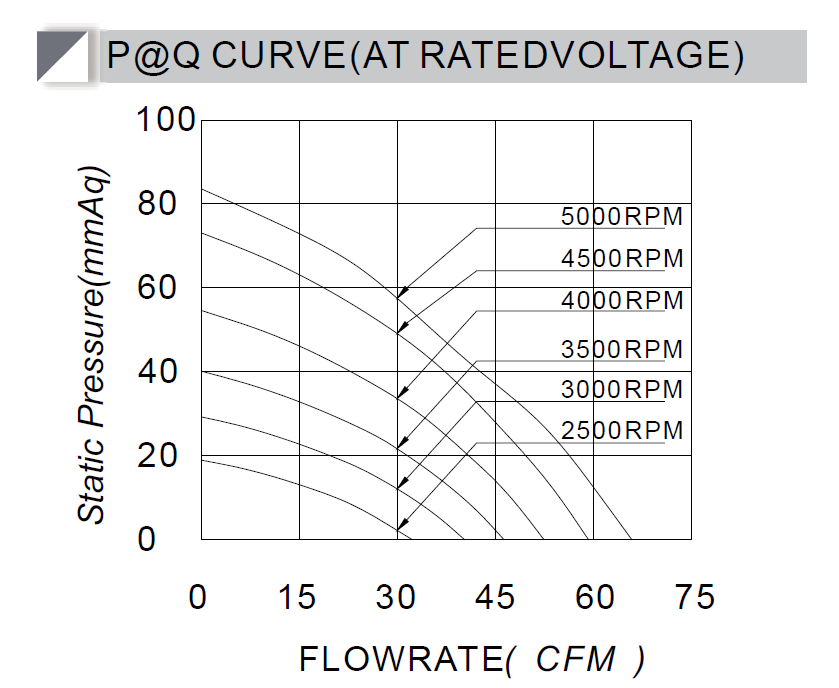

The Pressure-Flow (PQ) performance curve demonstrates the exceptional pneumatic efficiency and high static pressure capabilities of the BA12032HV24X-B blower. It illustrates how the unit maintains a stable airflow volume even when operating against heavy system backpressure and flow restrictions.
This comprehensive curve provides crucial performance data for engineers, helping to identify optimal operating points and ensuring maximum cooling or pneumatic performance across various heavy-duty workloads.
Air Blower BA12032-B Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect 12032 air blower for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | |
| BA12032L12X | BY | 12 | 7.5~13.5 | 0.8 | 9.6 | 2500 | 1.143 | 32.35 | 18.98 | 0.747 | 50.4 |
| BA12032M12X | 12 | 7.5~13.5 | 1.4 | 16.8 | 3000 | 1.426 | 40.35 | 29.28 | 1.153 | 52.3 | |
| BA12032H12X | 12 | 7.5~13.5 | 1.8 | 21.6 | 3500 | 1.639 | 46.38 | 40.17 | 1.581 | 58.3 | |
| BA12032HH12X | 12 | 7.5~13.5 | 2.4 | 28.8 | 4000 | 1.853 | 52.44 | 54.63 | 2.151 | 59.0 | |
| BA12032VH12X | 12 | 7.5~13.5 | 3.0 | 36 | 4500 | 2.096 | 59.32 | 73.11 | 2.878 | 62.2 | |
| BA12032HV12X | 12 | 7.5~13.5 | 3.6 | 43.2 | 5000 | 2.331 | 65.96 | 83.60 | 3.291 | 64.7 | |
| BA12032L24X | 24 | 18~26.5 | 0.4 | 9.6 | 2500 | 1.143 | 32.35 | 18.98 | 0.747 | 50.4 | |
| BA12032M24X | 24 | 18~26.5 | 0.7 | 16.8 | 3000 | 1.426 | 40.35 | 29.28 | 1.153 | 52.3 | |
| BA12032H24X | 24 | 18~26.5 | 0.9 | 21.6 | 3500 | 1.639 | 46.38 | 40.17 | 1.581 | 58.3 | |
| BA12032HH24X | 24 | 18~26.5 | 1.2 | 28.8 | 4000 | 1.853 | 52.44 | 54.63 | 2.151 | 59.0 | |
| BA12032VH24X | 24 | 18~26.5 | 1.5 | 36 | 4500 | 2.096 | 59.32 | 73.11 | 2.878 | 62.2 | |
| BA12032HV24X | 24 | 18~26.5 | 1.8 | 43.2 | 5000 | 2.331 | 65.96 | 83.60 | 3.291 | 64.7 | |
| BA12032L48X | 48 | 36~54 | 0.2 | 9.6 | 2500 | 1.143 | 32.35 | 18.98 | 0.747 | 50.4 | |
| BA12032M48X | 48 | 36~54 | 0.35 | 16.8 | 3000 | 1.426 | 40.35 | 29.28 | 1.153 | 52.3 | |
| BA12032H48X | 48 | 36~54 | 0.45 | 21.6 | 3500 | 1.639 | 46.38 | 40.17 | 1.581 | 58.3 | |
| BA12032HH48X | 48 | 36~54 | 0.6 | 28.8 | 4000 | 1.853 | 52.44 | 54.63 | 2.151 | 59.0 | |
| BA12032VH48X | 48 | 36~54 | 0.75 | 36 | 4500 | 2.096 | 59.32 | 73.11 | 2.878 | 62.2 | |
| BA12032HV48X | 48 | 36~54 | 0.9 | 43.2 | 5000 | 2.331 | 65.96 | 83.60 | 3.291 | 64.7 | |
Looking for different sizes or specifications?
Explore our full range of 24V Blower, or choose from similar models below.
24V Blower
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
