220V AC Air Blower BA8060H02B-E Industrial Centrifugal Fan
220V AC Air Blower BA8060H02B-E Industrial Centrifugal Fan
Non-integrated driver 220v
45000rpm/min
Max 23cfm,15kpa
220V AC Air Blower BA8060H02B-E
Designed for high-voltage AC industrial environments, delivering powerful and continuous airflow to meet heavy-duty cooling and ventilation needs.
Engineered for Continuous Operation with Stable Performance
Built with premium low-wear structures, supporting 24/7 non-stop operation to ensure long-term stability for industrial production lines.
Unintegrated Design for Flexible Installation & Maintenance
The unintegrated design offers engineers higher assembly flexibility, making future component maintenance and replacement more efficient.
Efficient Heat Dissipation to Extend Equipment Lifespan
The optimized centrifugal airflow design rapidly dissipates core heat, effectively protecting surrounding critical components and extending overall equipment life.

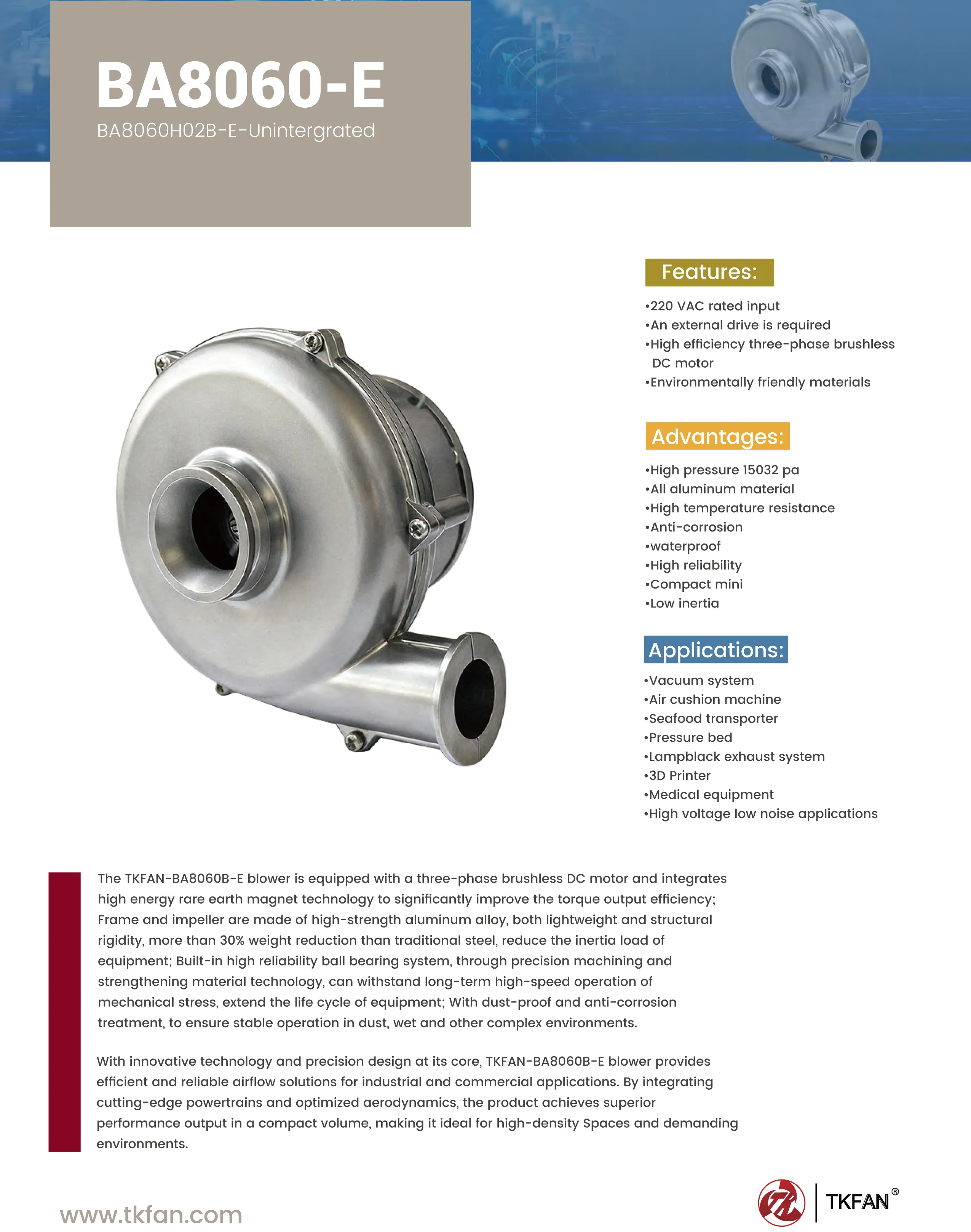

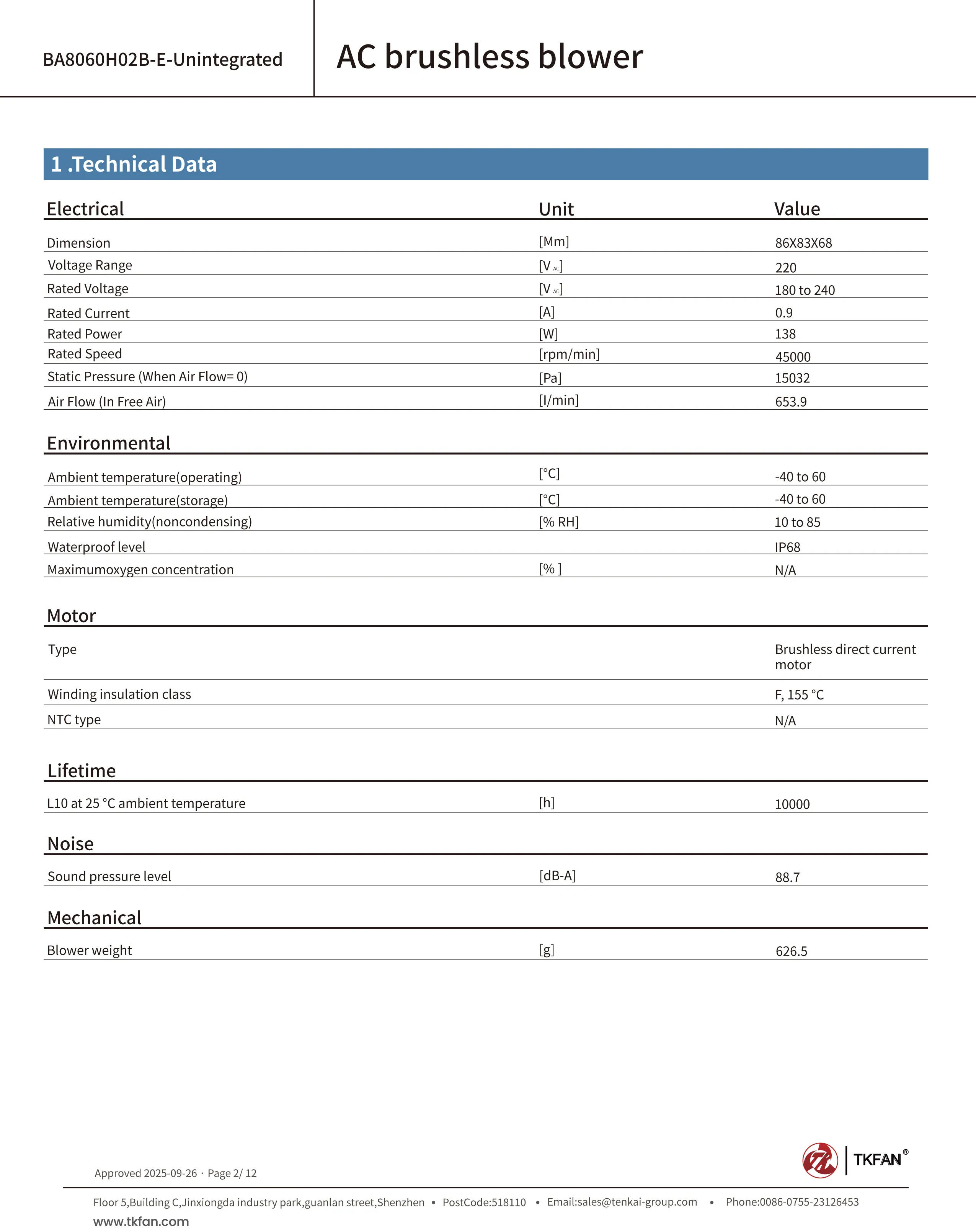

Technical Specifications

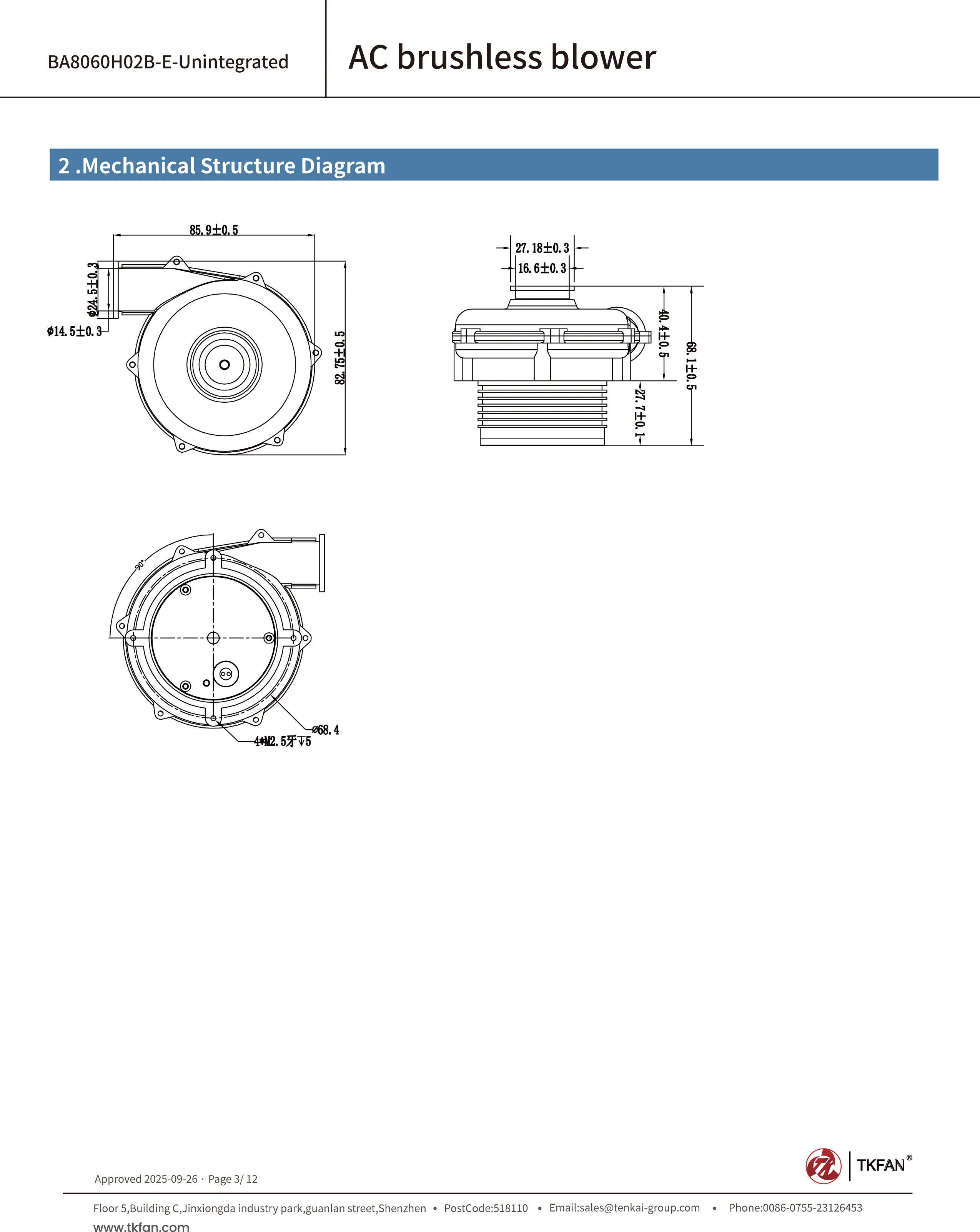

220V AC Air Blower BA8060H02B-E Industrial Centrifugal Fan Mechanical Structure Diagram
This detailed mechanical structure diagram presents the precise physical layout, framing proportions, and structural dimensions of the BA8060H02B-E 220V AC industrial centrifugal fan. Designed for robust performance in demanding thermal environments, key highlights include:
- Compact & Rugged Housing: Precision-molded casing engineered for high structural integrity and vibration damping.
- Mounting Hole Specifications: Exact positioning coordinates and aperture sizing to facilitate secure installation into enclosures and heavy-duty machinery.
- Volute & Impeller Geometry: Aerodynamically optimized scroll housing designed to maximize directional air velocity and pressure delivery.
- Outlet & Inlet Clearance: Clear flange dimensions ensuring seamless connection with standard ducting or custom heat exchangers.
Please cross-reference these dimensional tolerances during your chassis and system layout design phases to ensure perfect physical compatibility.

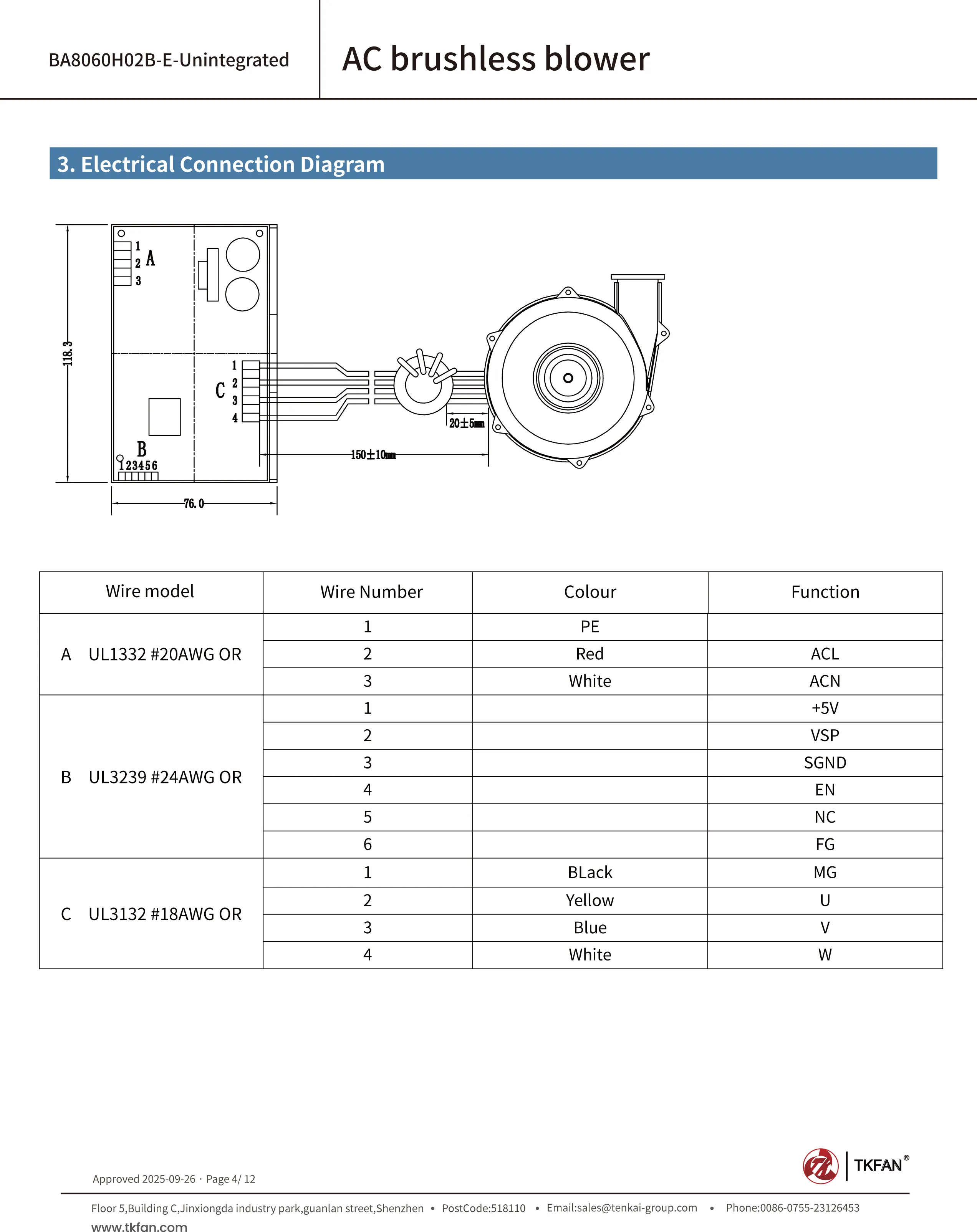

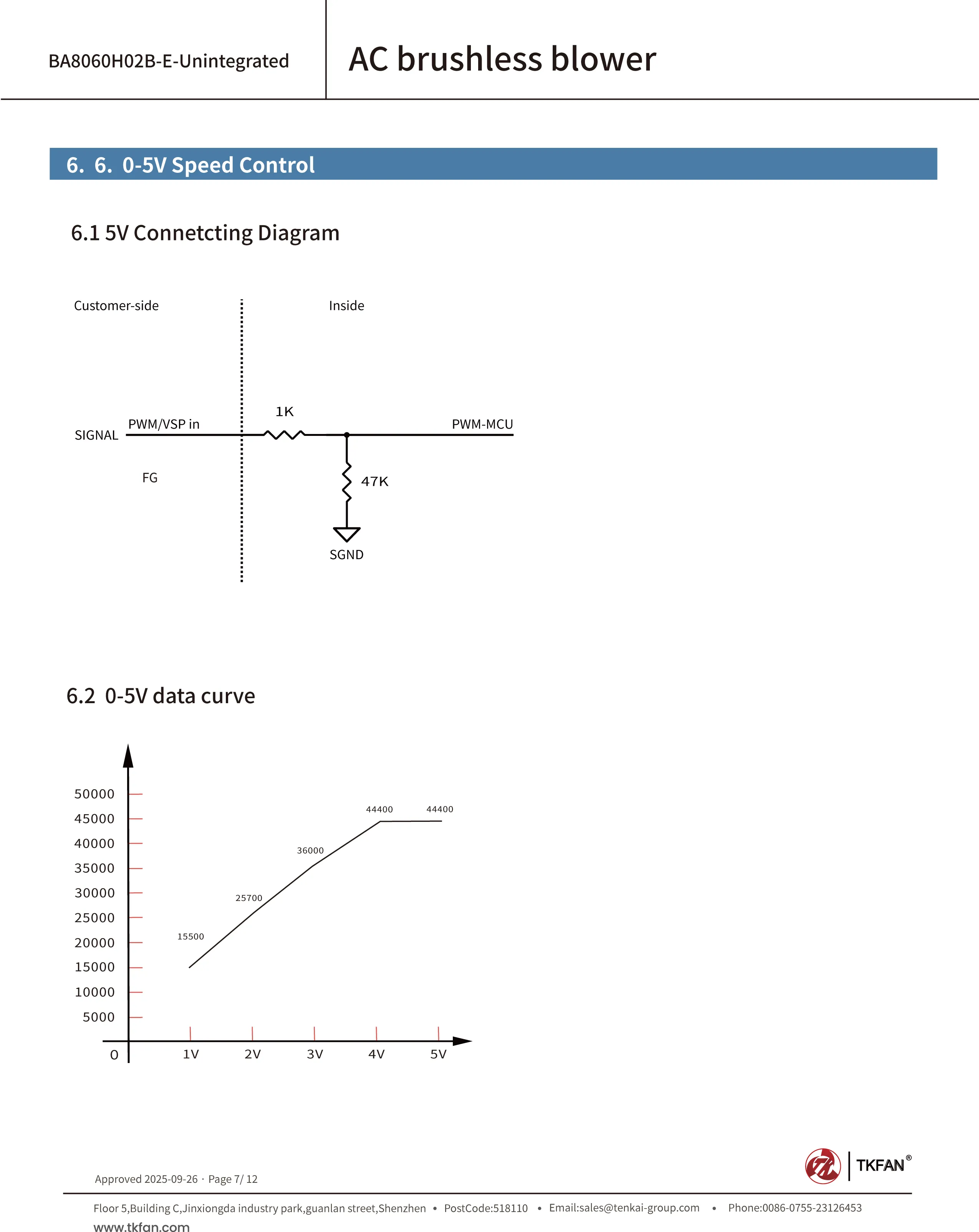

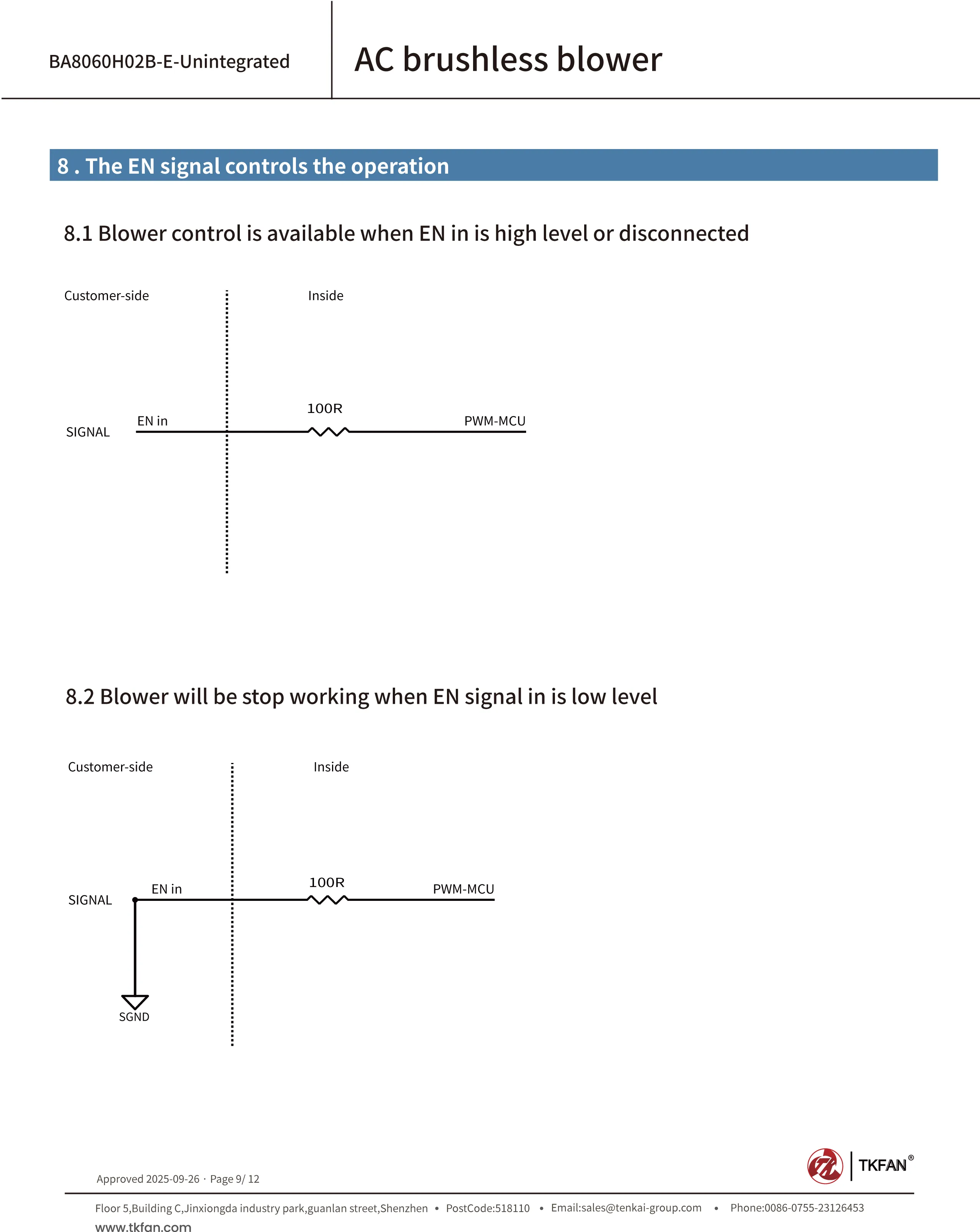

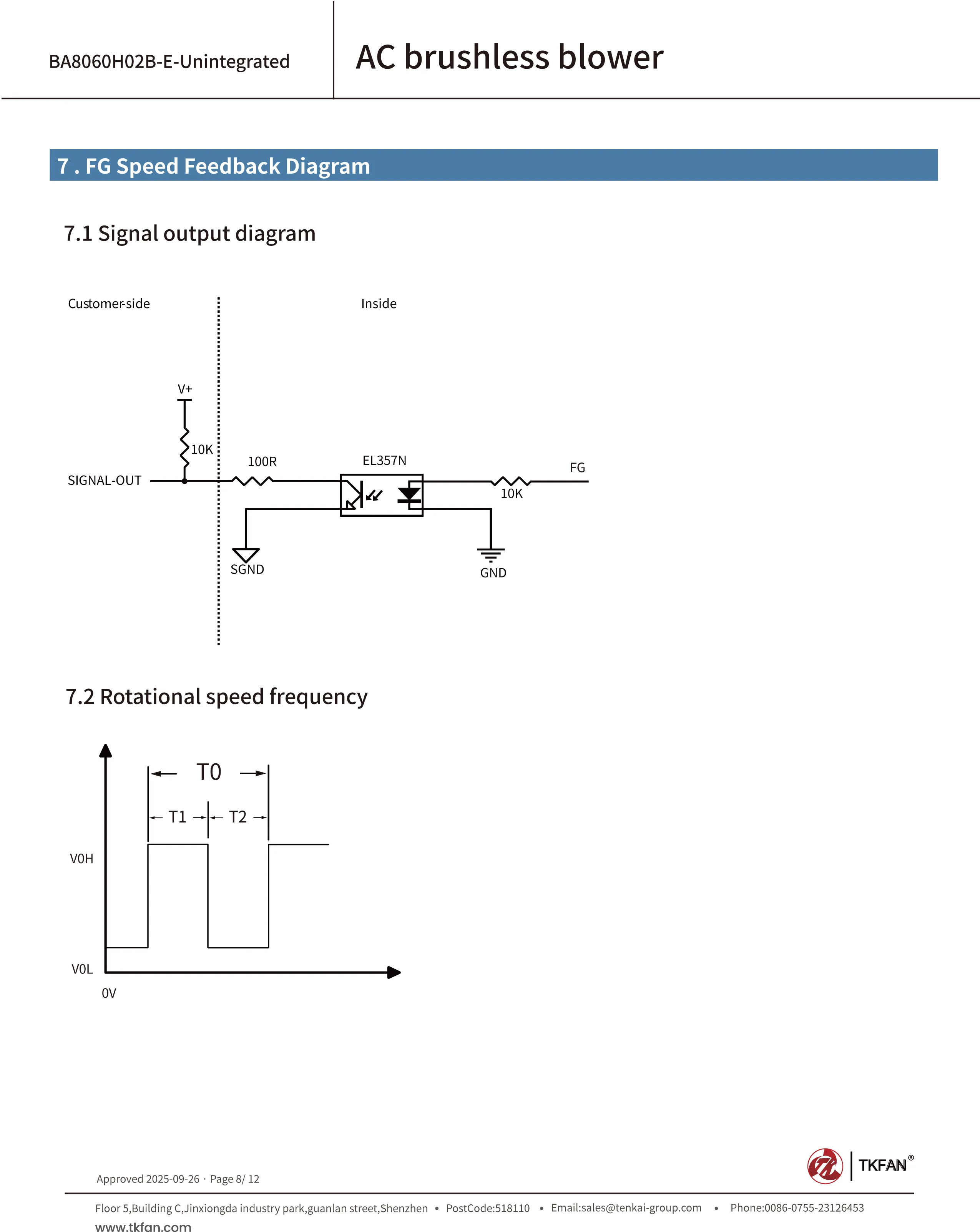

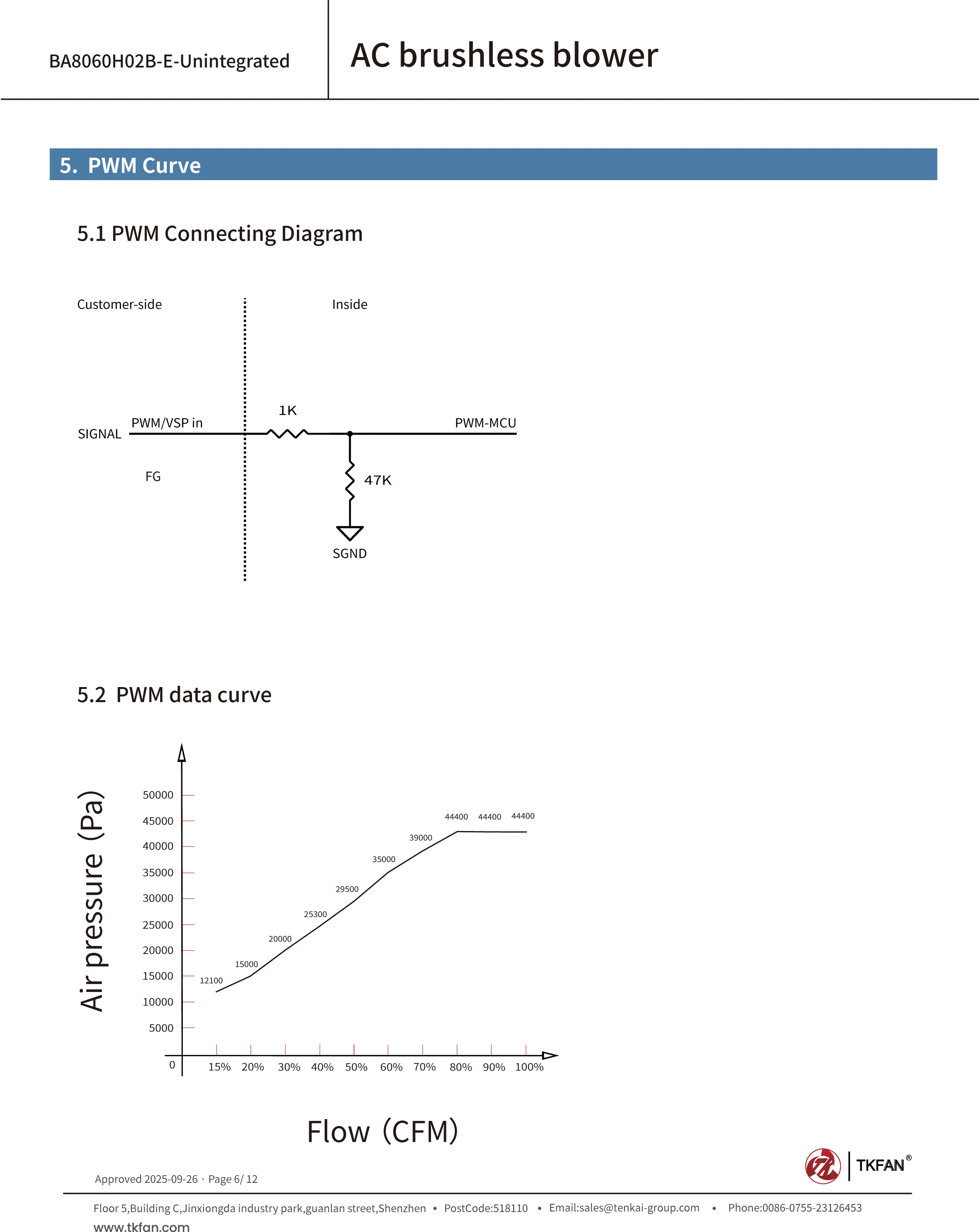

220V AC Air Blower BA8060H02B-E Industrial Centrifugal Fan Electrical Connection Diagram
The electrical connection diagram illustrates the correct wiring configuration, terminal layouts, and circuit specifications for powering the BA8060H02B-E industrial AC centrifugal blower safely and efficiently:
- Standard 220V AC Input: Clear labeling for live (L), neutral (N), and protective earth (PE) grounding connections to comply with electrical safety standards.
- Lead Wire Color Coding: Standardized insulation color coding designed to minimize wiring errors during field setup and maintenance.
- Protection & Safety Guidelines: Recommended circuit protection measures, including fuse ratings and isolation switch requirements.
- Impedance Protected Motor: Built-in safeguards outlining electrical tolerances under continuous heavy-duty operation.
Always ensure power is completely disconnected before wiring and verify that input voltages match the technical specifications.

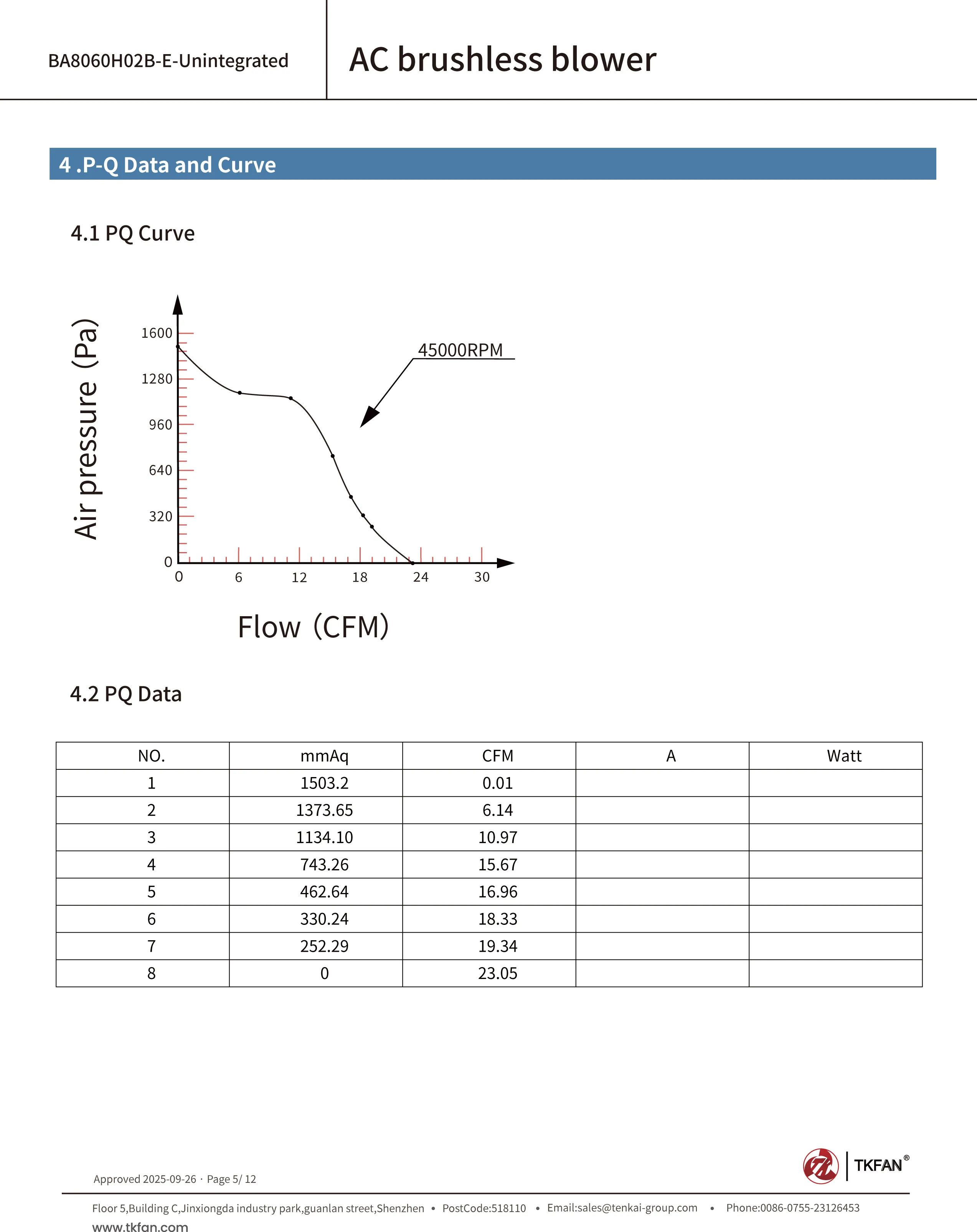

220V AC Air Blower BA8060H02B-E Industrial Centrifugal Fan P-Q Curve
The performance characteristic curve (P-Q Curve) maps out the aerodynamic capability of the BA8060H02B-E high-pressure centrifugal fan across varying operating conditions:
- Airflow vs. Static Pressure: Demonstrates the precise trade-off between maximum air volume delivery (CFM) and peak static pressure performance (kPa/inAq).
- Operating Point Optimization: Helps engineers identify the optimal working zone for maximum system efficiency and minimal turbulence noise.
- Resistance Handling: Highlights the blower's robust capacity to push air efficiently through dense filter media, high-impedance heat sinks, and long extraction ducts.
- Aerodynamic Stability: Verified curve stability ensuring smooth, surge-free operation under fluctuating backpressure.
Use this characteristic curve to match system resistance and select the ideal operating point for your cooling or ventilation application.
