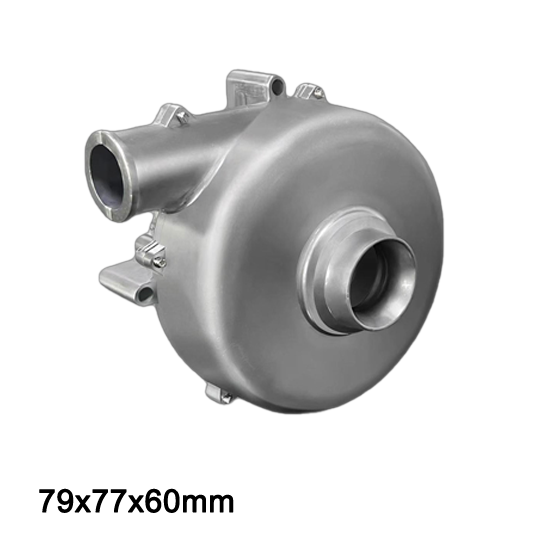

220V AC Air Blower BA8060H02B Industrial Centrifugal Fan
220V AC Air Blower BA8060H02B Industrial Centrifugal Fan
Non-integrated driver 220V
52000rpm/min
Max 33cfm18kpa

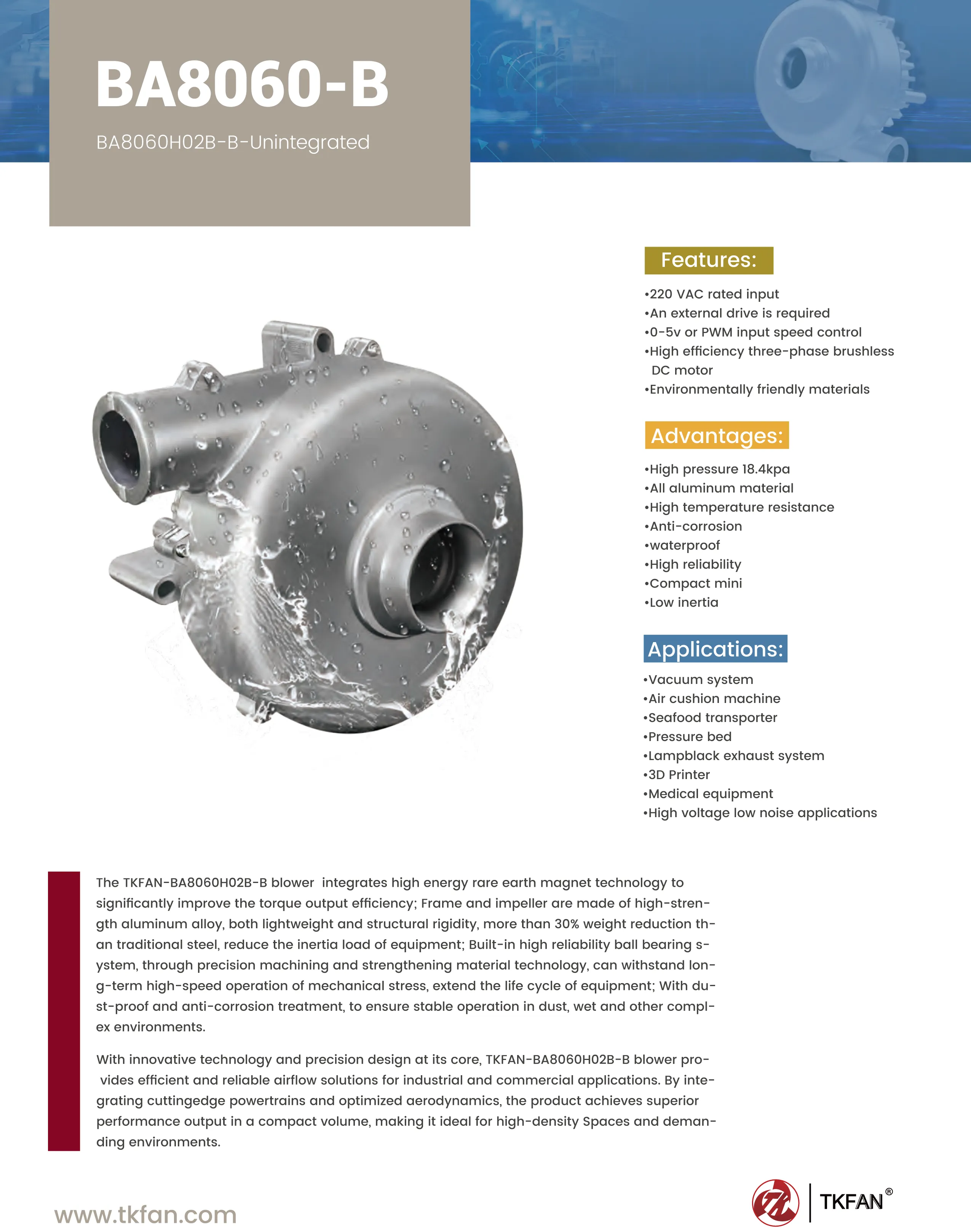

220V AC Air Blower
Supports direct 220V AC high-voltage input, eliminating the need for bulky external DC power step-down transformers to streamline system layouts and minimize power conversion losses.
Unintegrated Split-Controller Design
Features a separated, unintegrated electronic control framework that provides maximum mechanical installation flexibility in narrow enclosures and significantly simplifies modular maintenance or replacements.
Outstanding High Static Pressure Performance
Specially engineered to overcome high systemic airway impedance, delivering a powerful, concentrated airflow capable of easily pushing through dense dust filters and restrictive, narrow flow channels.
Flexible Multi-Field Application Adaptability
Highly adaptable for specialized modern industries, providing excellent condensation defense for Energy Storage Systems (ESS) battery modules and robust, protective cooling for automotive LiDAR sensors or headlights.

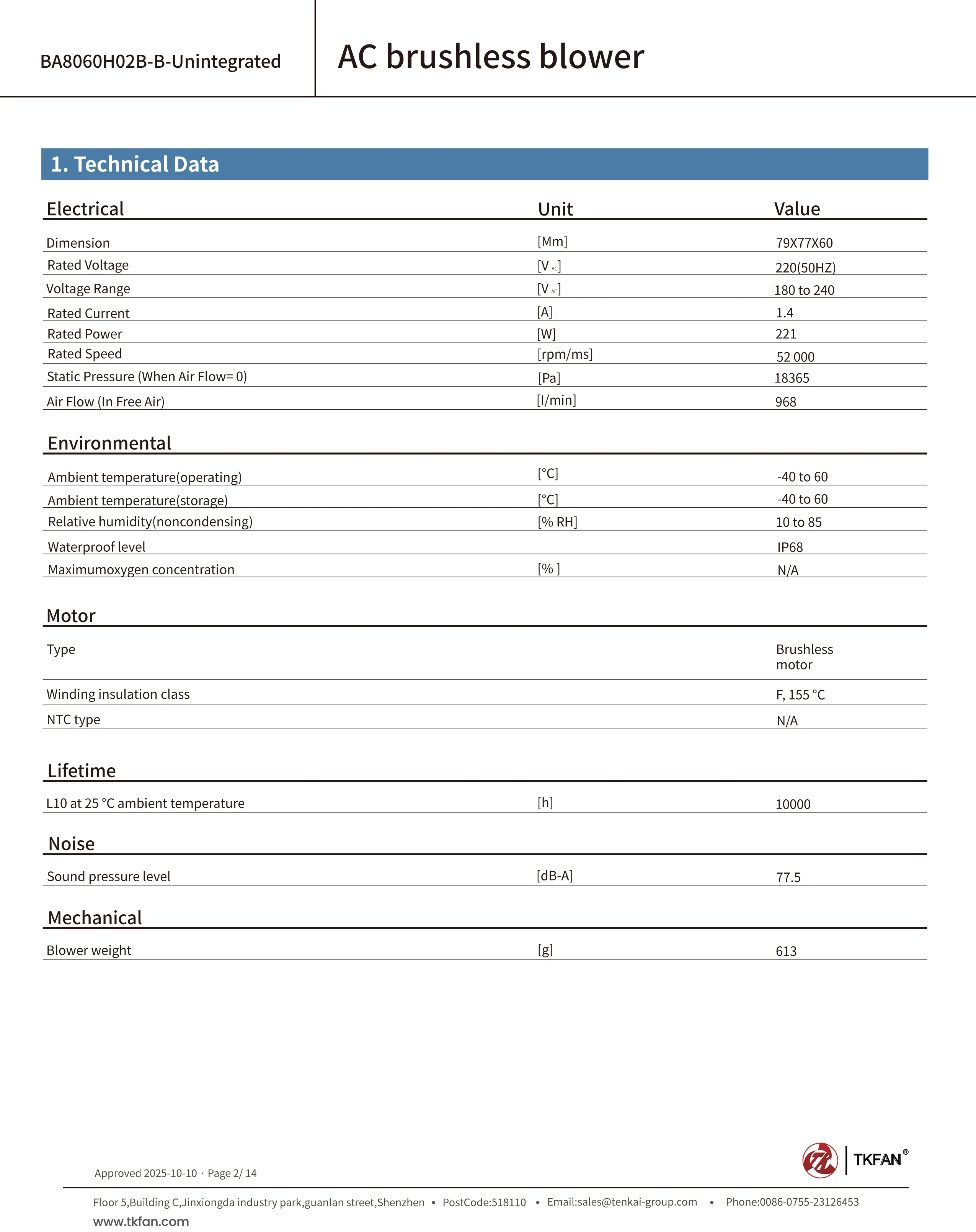

Technical Specifications

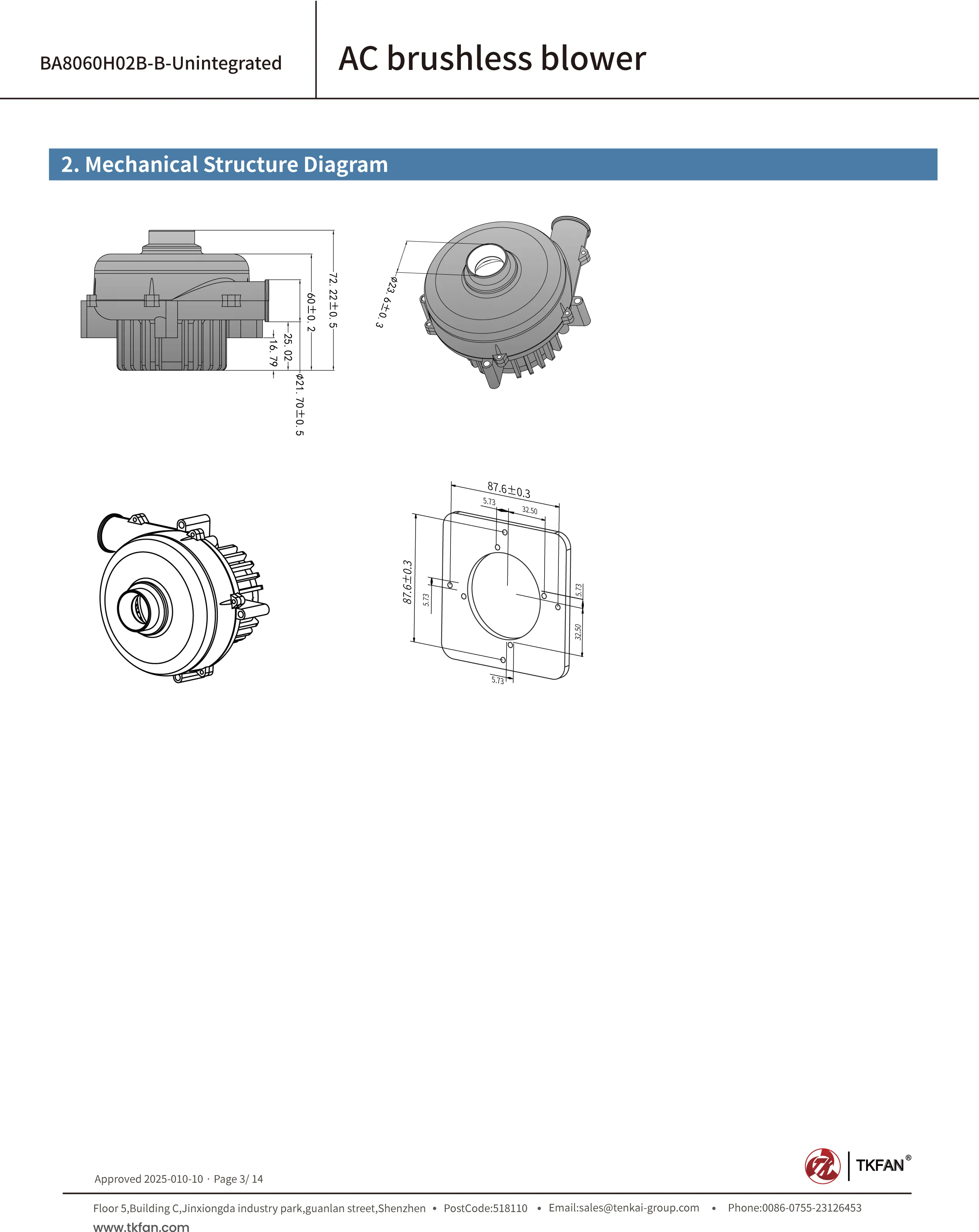

220V AC Air Blower BA8060H02B Industrial Centrifugal Fan Mechanical Structure Diagram
This comprehensive mechanical structure diagram illustrates the robust build and precision engineering of the BA8060H02B centrifugal fan. It highlights the aerodynamic scroll housing, motor integration, and durable structural layout designed to withstand rigorous industrial environments while ensuring optimal continuous airflow delivery and long-term mechanical stability.

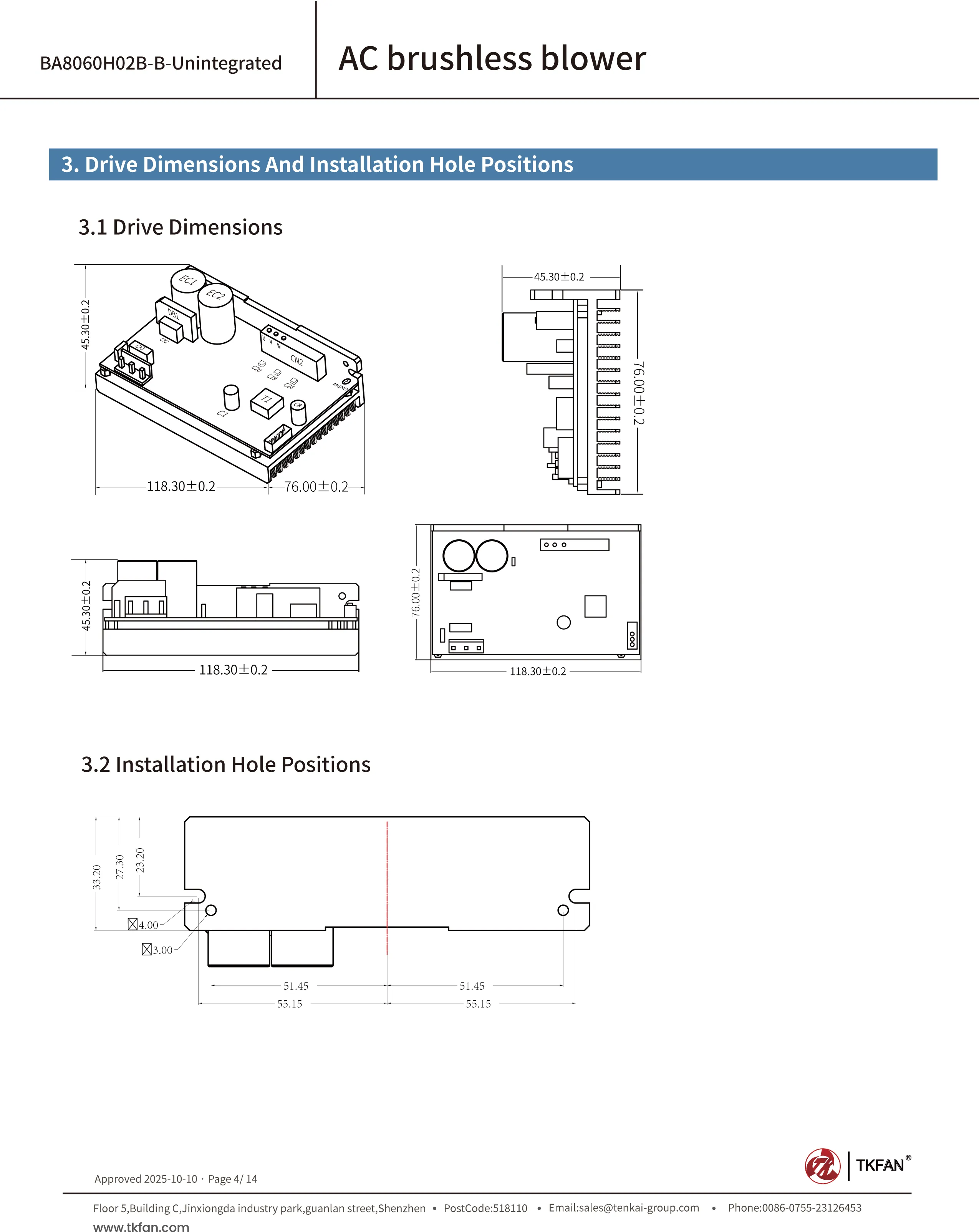

220V AC Air Blower BA8060H02B Industrial Centrifugal Fan Drive Dimensions
Featuring precise dimensional specifications, the drive dimensions blueprint details the exact overall outline, rotor clearance, and motor casing boundaries. This ensures seamless integration and accurate spatial planning for engineers incorporating this centrifugal blower into compact industrial systems and equipment enclosures.
220V AC Air Blower BA8060H02B Industrial Centrifugal Fan Installation Hole Positions
The installation hole positions diagram provides exact coordinates and spacing metrics for mounting the blower securely. Designed with standard industrial tolerance, it allows for fast, hassle-free retrofitting and secure mechanical fastening onto panels, chassis, or ventilation ducts without alignment issues.

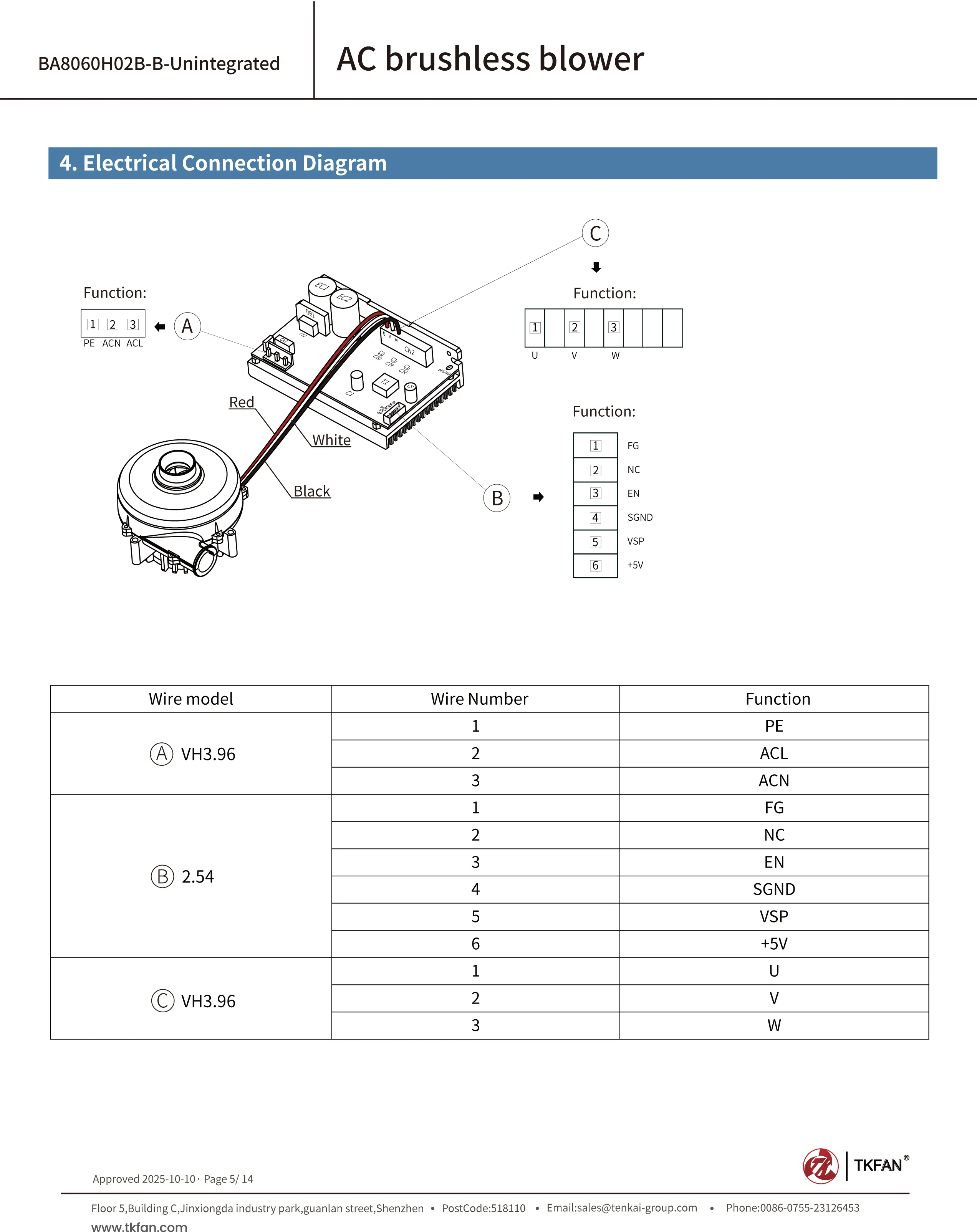

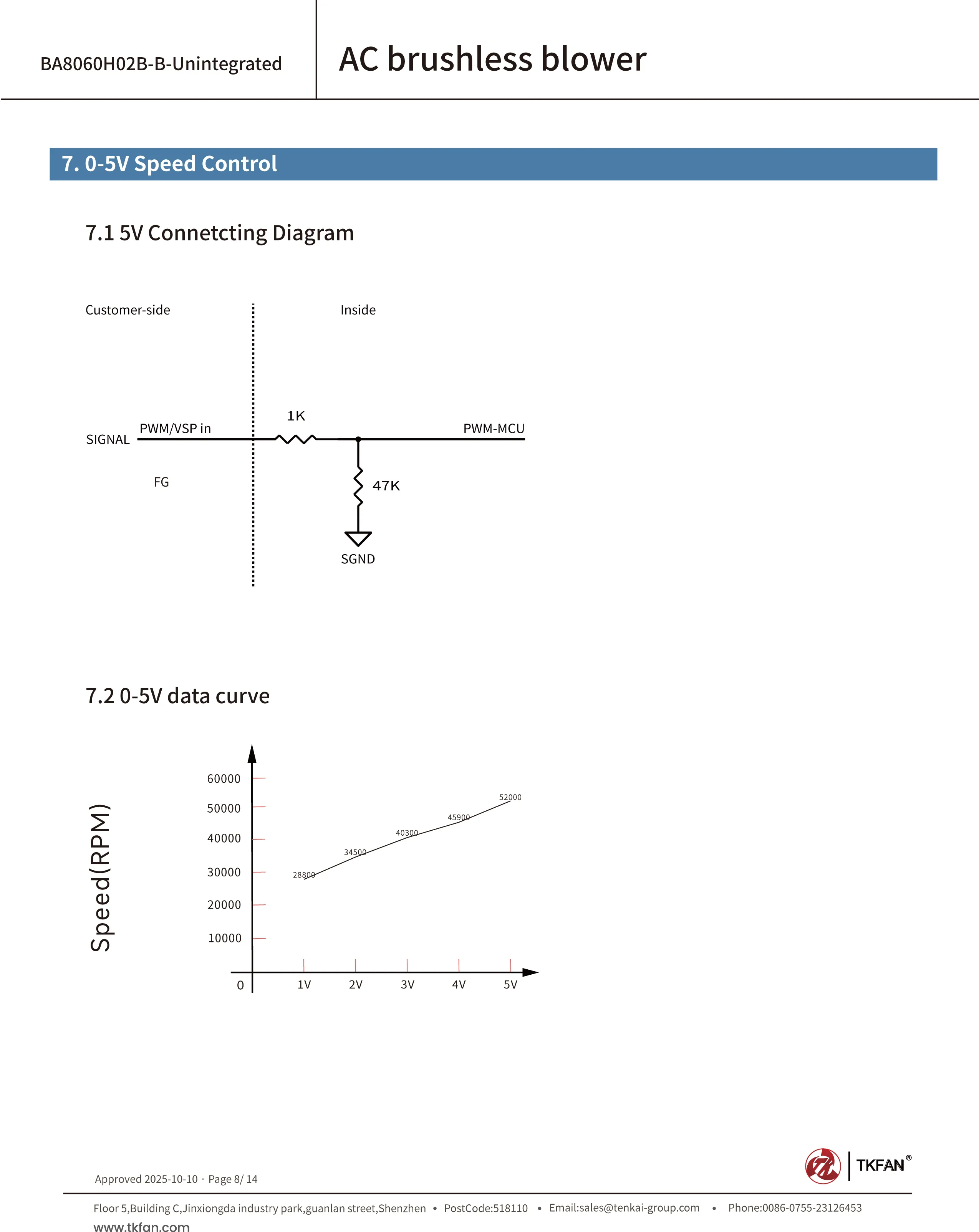

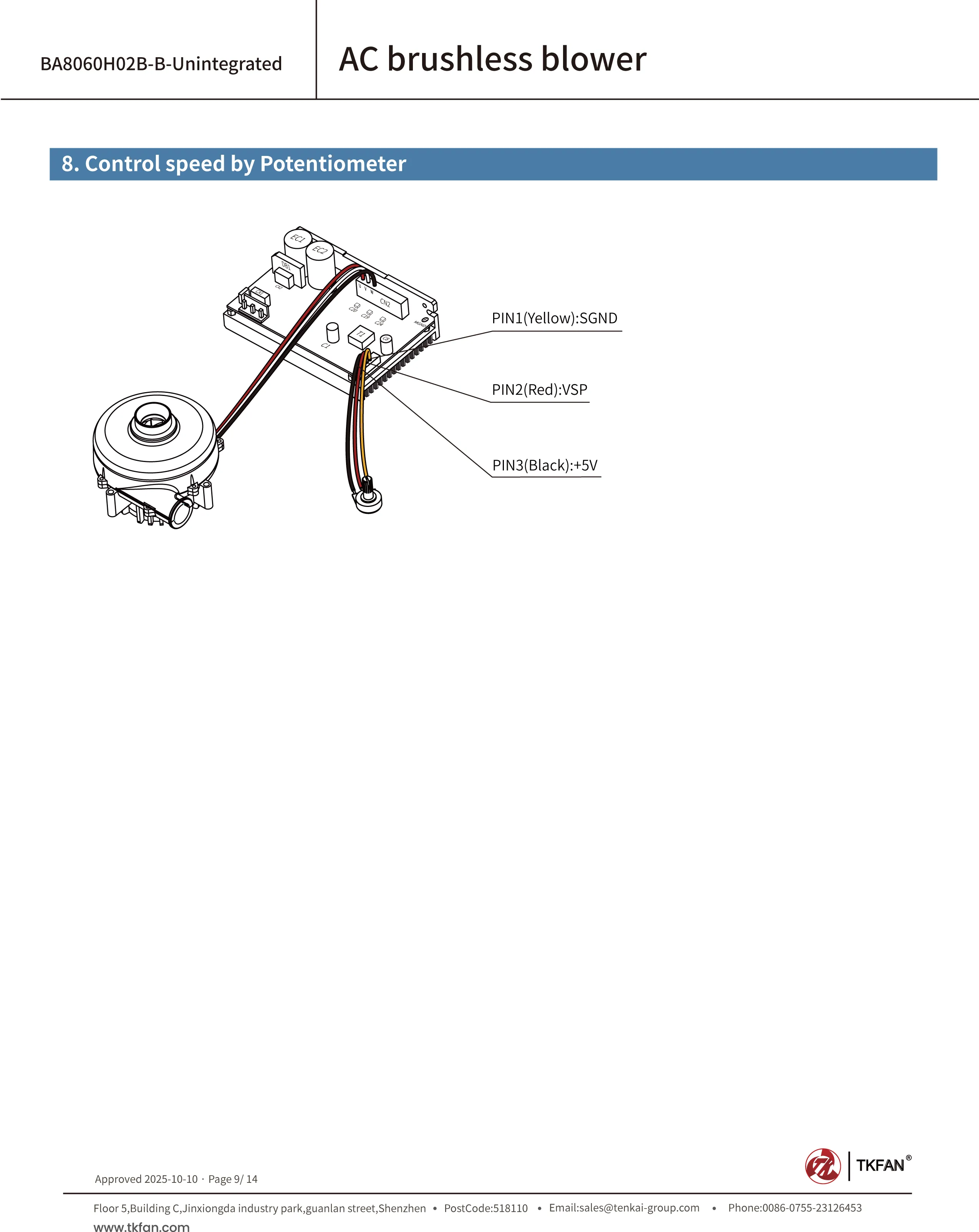

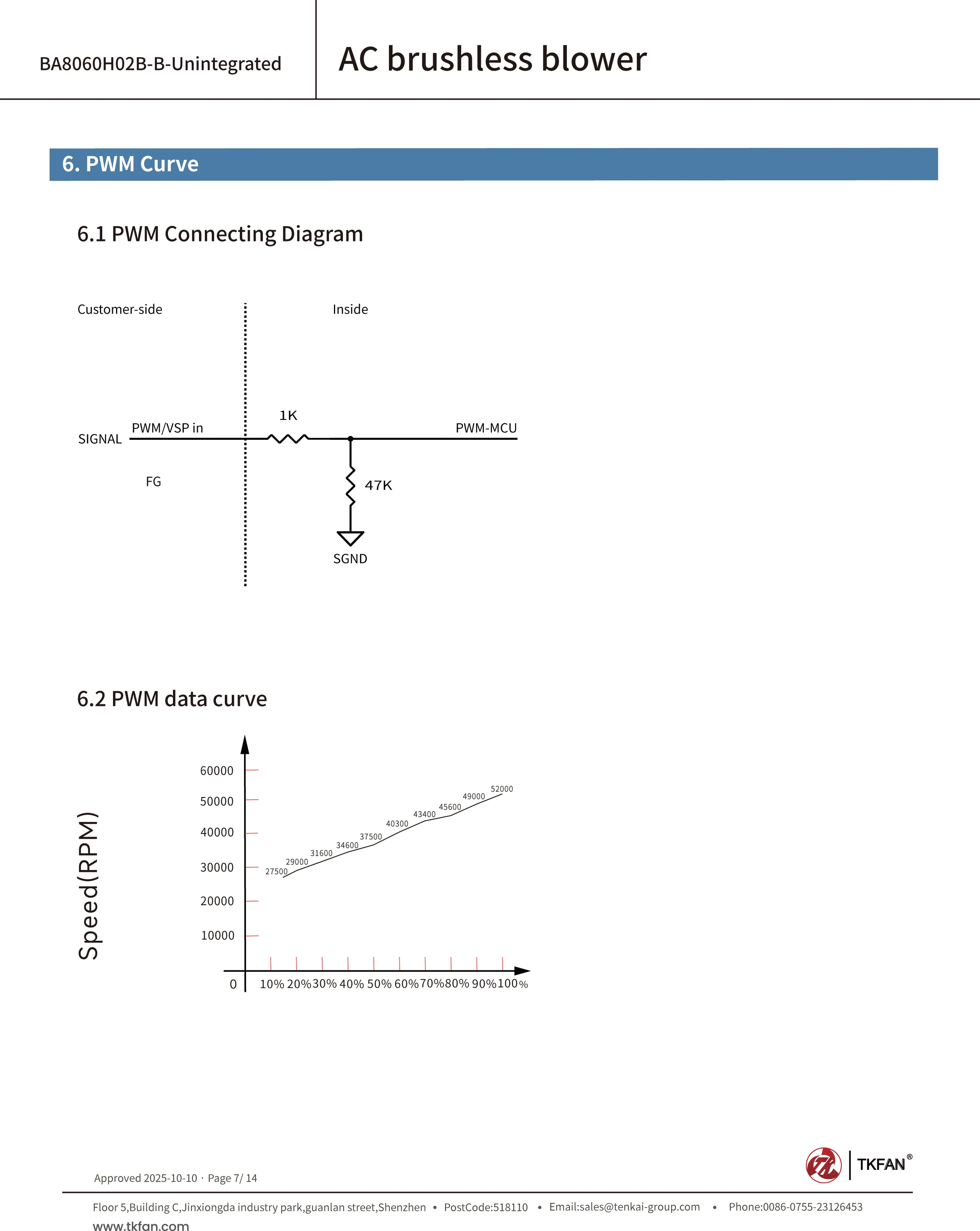

220V AC Air Blower BA8060H02B Industrial Centrifugal Fan Electrical Connection Diagram
Clear and standardized, this electrical connection diagram outlines the proper wiring guidelines for the 220V AC power input. It ensures safe installation, correct terminal identification, and reliable circuit integration while preventing wiring errors during setup in industrial automation systems.

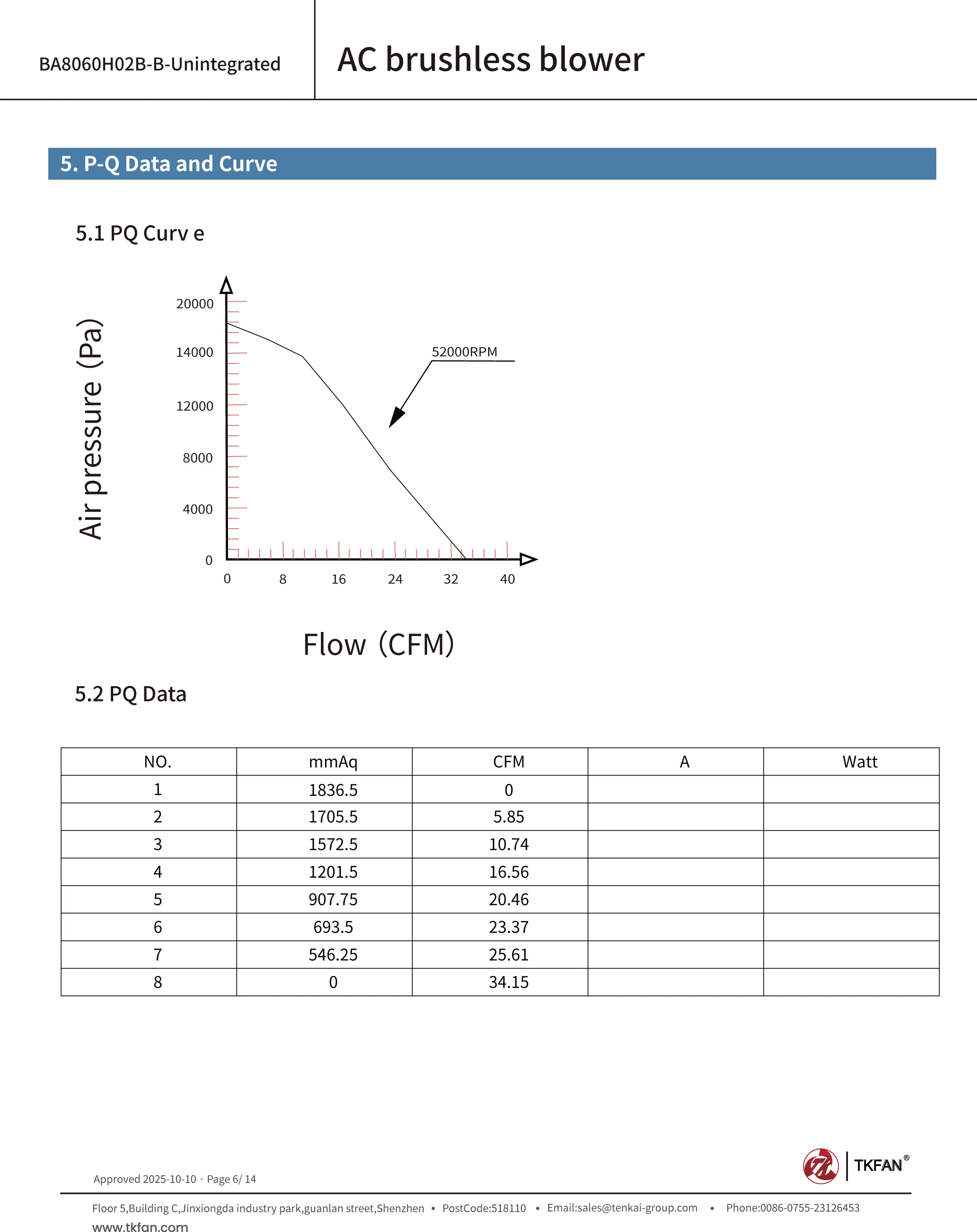

220V AC Air Blower BA8060H02B Industrial Centrifugal Fan P-Q Curve
The performance (P-Q) curve graphically represents the static pressure versus airflow characteristics of the BA8060H02B blower. It empowers thermal and ventilation engineers to accurately evaluate aerodynamic efficiency, predict system impedance behavior, and optimize cooling performance across diverse operating conditions.
