220V AC Air Blower BA18089H02B Industrial Centrifugal Fan
220V AC Air Blower BA18089H02B Industrial Centrifugal Fan
220V
14000rpm/min
Max 240.5cfm11.2kpa
Technical Specifications
220V AC Air Blower BA18089H02B Industrial Centrifugal Fan

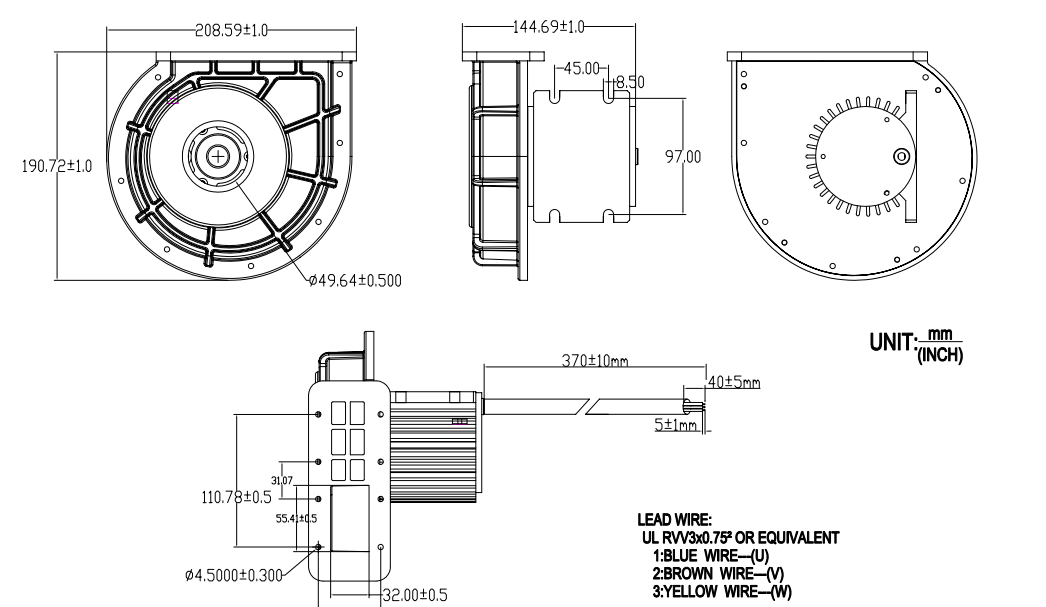

This mechanical dimensions drawing outlines the structural layout and physical form factor of the BA18089H02B high-performance 220V AC industrial centrifugal fan. Key structural benefits include:
- Robust Enclosure: Heavy-duty housing engineered to withstand demanding industrial operating environments.
- Precise Mounting Layout: Standardized flange and mounting hole dimensions for straightforward retrofit and installation.
- Optimized Volute Casing: Designed to maximize dynamic airflow output while keeping pressure losses to an absolute minimum.
- Terminal/Wire Routing: Clearly marked wiring layout tailored for standard 220V AC power systems.
Review this technical drawing to verify space compatibility within your machinery or cabinet cooling setup.
Product Demonstration & Operation Video
Watch this comprehensive video demonstration showcasing the BA18089H02B 220V AC centrifugal blower in actual operation:
- Live Airflow Performance: Observe the high-speed air output and robust performance under live load conditions.
- Acoustic & Stability Test: Notice the low vibration levels and steady aerodynamic performance powered by high-grade motor design.
- Application Suitability: Ideal for ventilation, industrial machinery cooling, fume extraction, and heavy-duty equipment thermal management.
Tip: Play the video to examine real-world operational noise and structural build quality.
