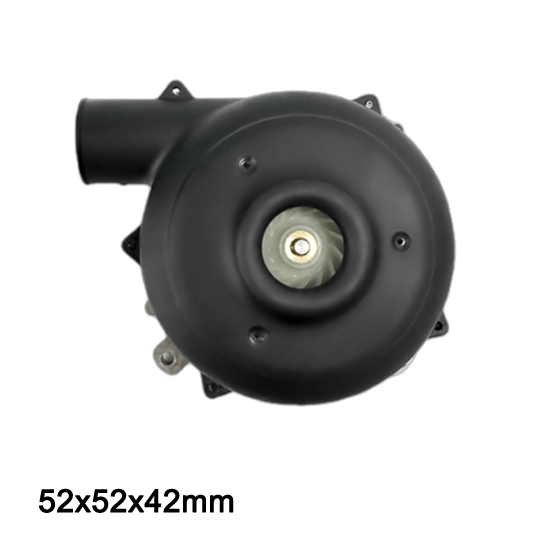

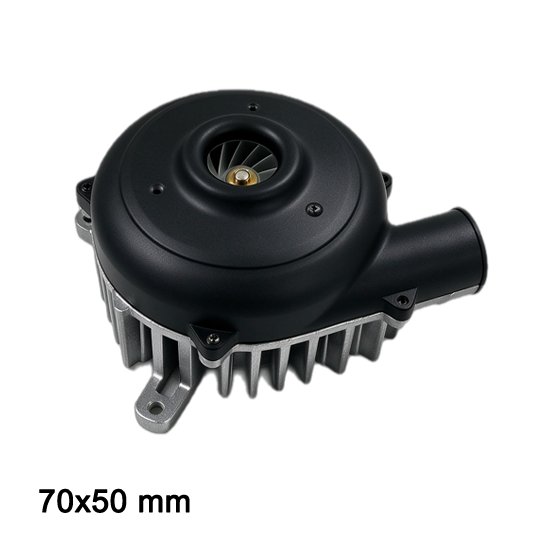

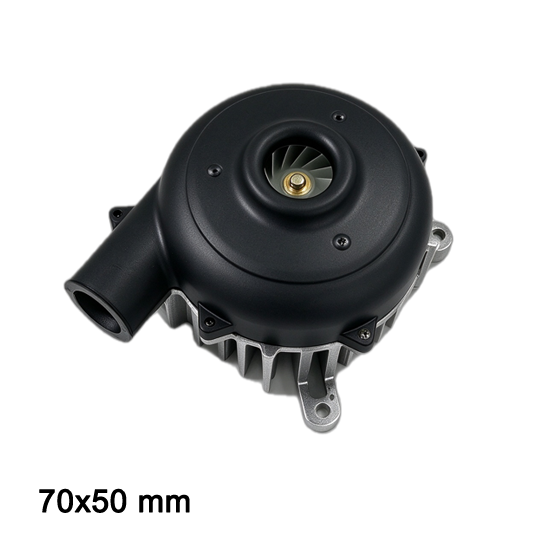

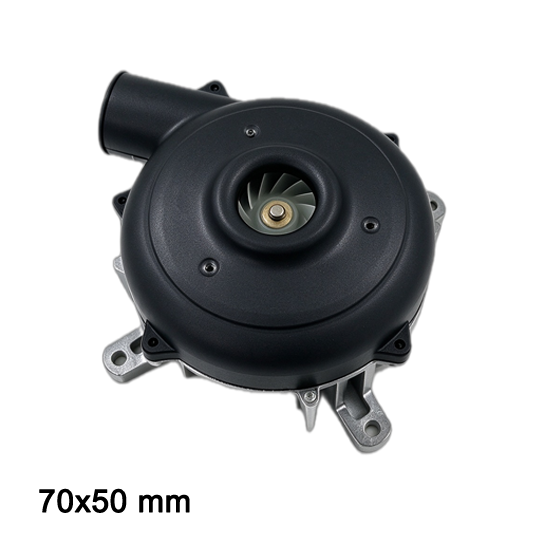

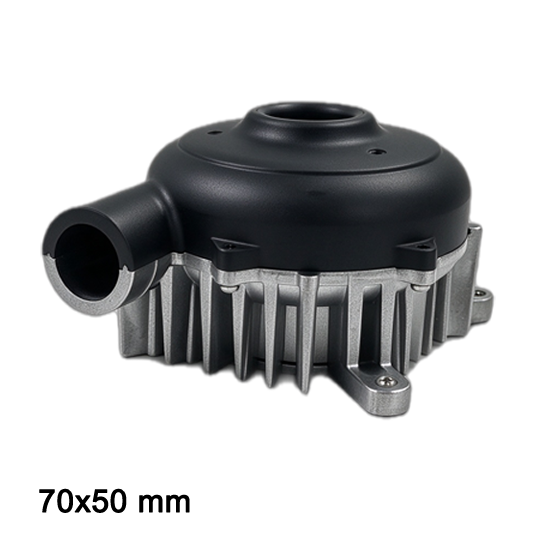

12V Air Blower BA7050H12B-C-Unintegrated
Voltage 12V
40000rpm/min
Max 15.5 cfm,7.9 kpa
Unintegrated Design for Flexible Integration
The BA7050H12B-C-Unintegrated adopts a non-integrated structure, which allows flexible matching with different drive control boards, making it suitable for customized development and original equipment replacement in various industrial scenarios.
12V DC Energy-Saving & High-Efficiency Operation
Powered by 12V DC, this blower features low power consumption and high energy efficiency, which can effectively reduce operational costs while ensuring stable and continuous airflow output for long-term use.
Durable Structure & Reliable Performance
Built with high-quality materials and precision manufacturing processes, it has excellent wear resistance and stability, capable of withstanding harsh industrial environments and supporting 24/7 continuous operation with a long service life.
Optimized Aerodynamic Design for Stable Airflow
Equipped with an optimized impeller and air duct design, it delivers stable airflow and appropriate static pressure, perfectly meeting the ventilation, cooling or air supply needs of industrial equipment.

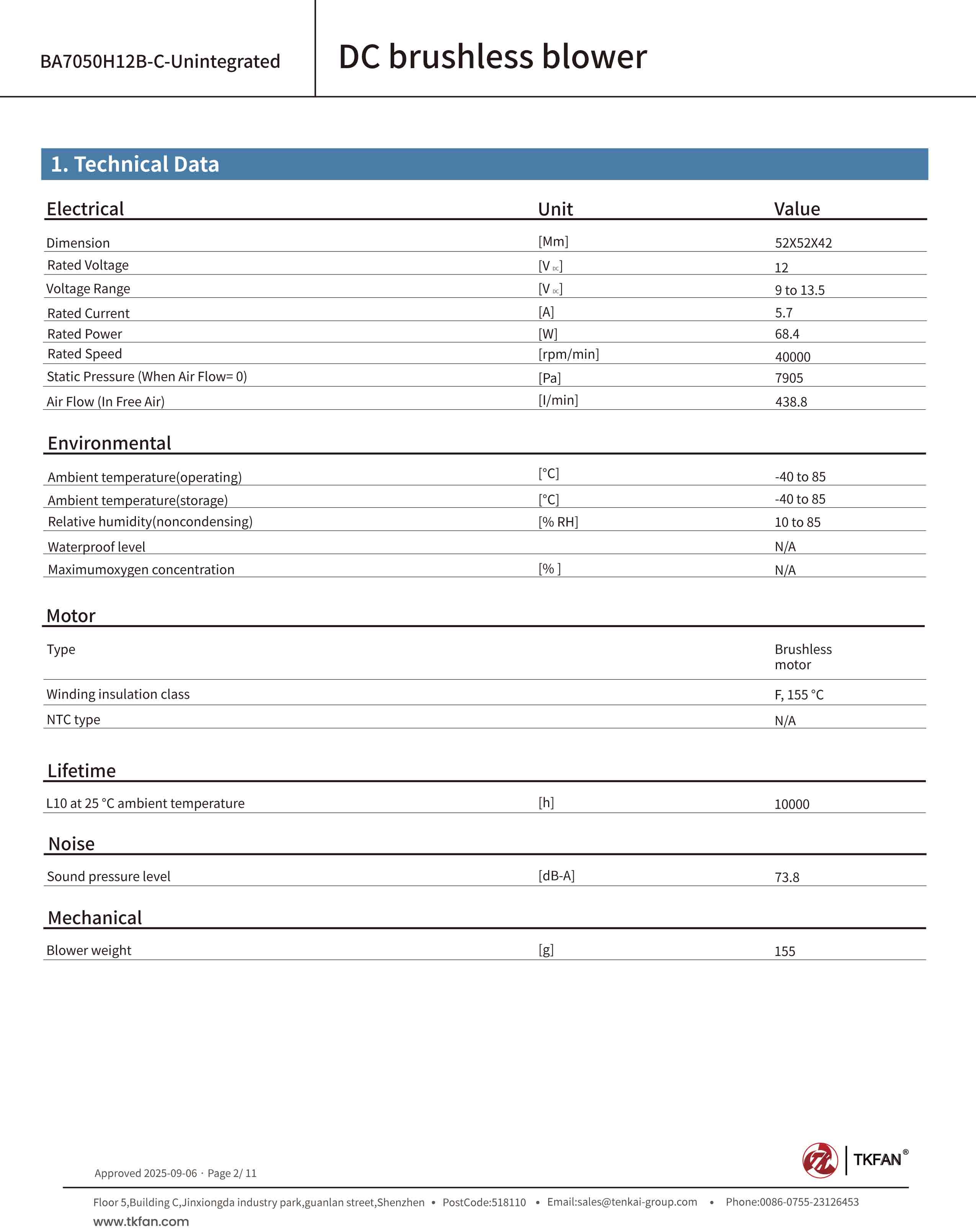

Technical Specifications
 Mechanical Structure Diagram.png "12V Blower BA7050H12B-C (Unintegrated ) Mechanical Structure Diagram.png")

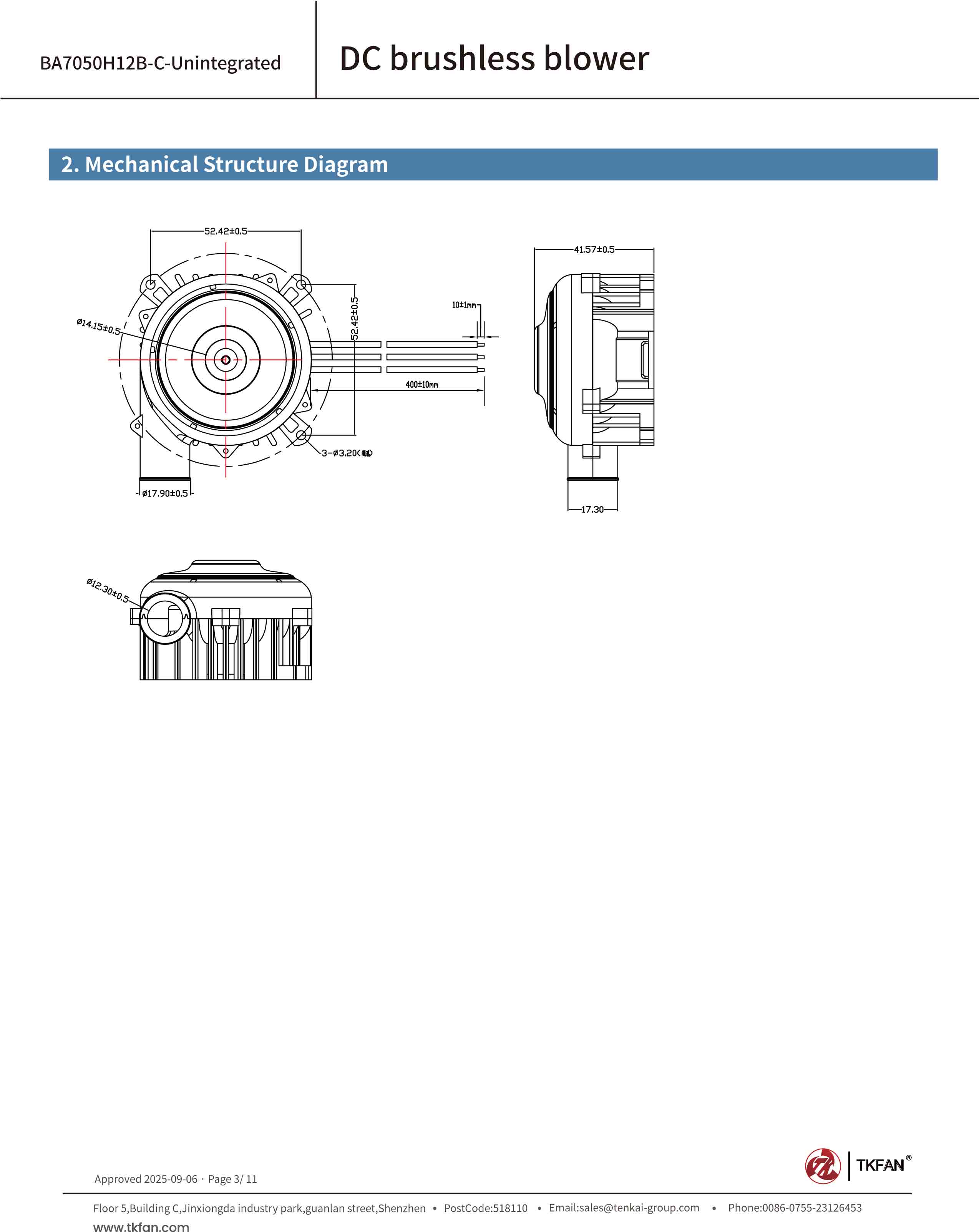

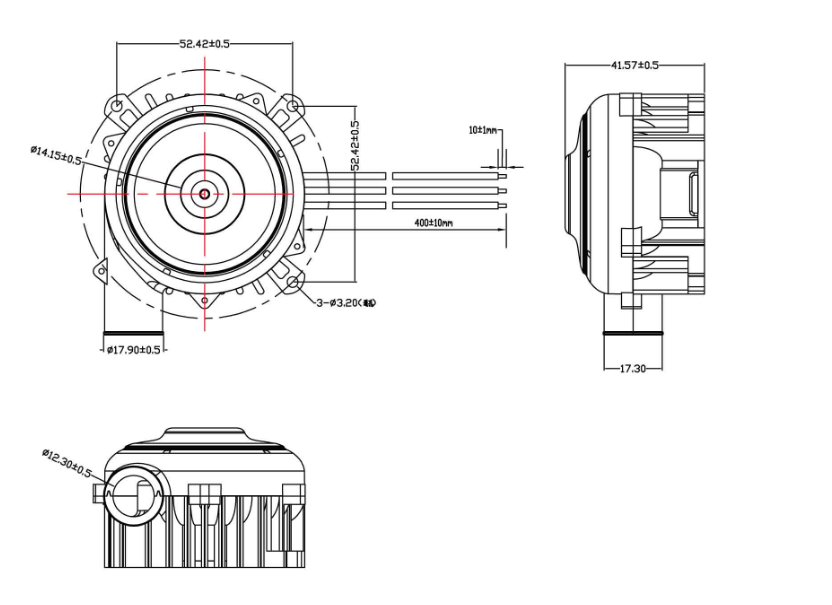

12V Blower BA7050H12B-C (Unintegrated ) Mechanical Structure Diagram
This mechanical structure diagram illustrates the precise dimensions, mounting hole locations, and overall physical profile of the 12V Blower BA7050H12B-C (Unintegrated). Designed with compactness and durability in mind, the structural layout ensures seamless integration into tight spaces while maintaining optimal airflow pathways and robust mechanical stability for various industrial and commercial applications.
 Electrical Connection Diagram.png "12V Blower BA7050H12B-C (Unintegrated ) Electrical Connection Diagram.png")

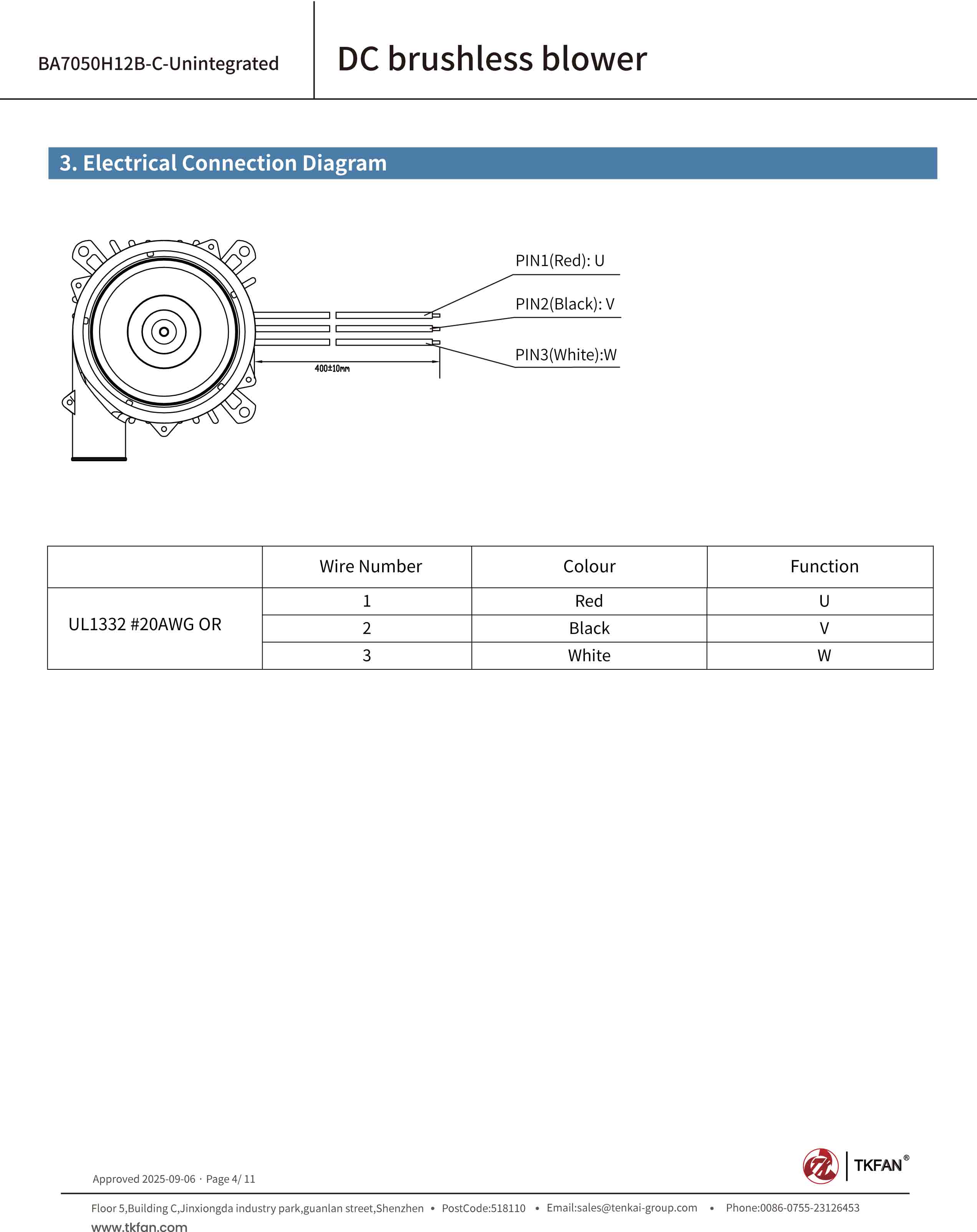

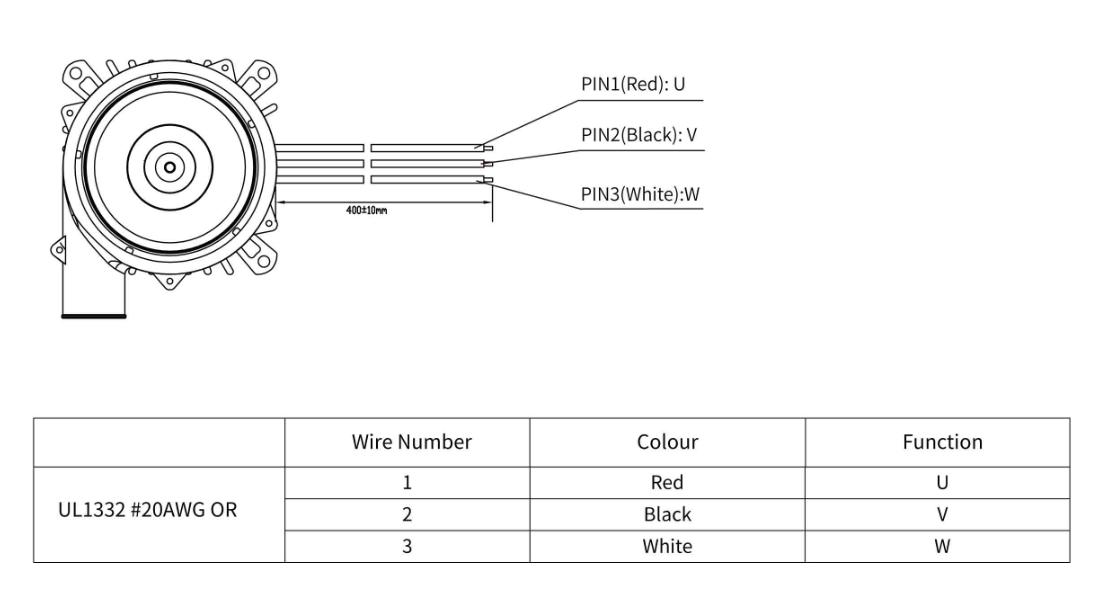

12V Blower BA7050H12B-C (Unintegrated ) Electrical Connection Diagram
The electrical connection diagram provides clear wiring instructions and pin definitions for the unintegrated 12V blower model BA7050H12B-C. It outlines proper power supply connections, control signal interfaces, and grounding recommendations to ensure safe, reliable, and efficient electrical setup, preventing miswiring and protecting internal circuitry during operation.

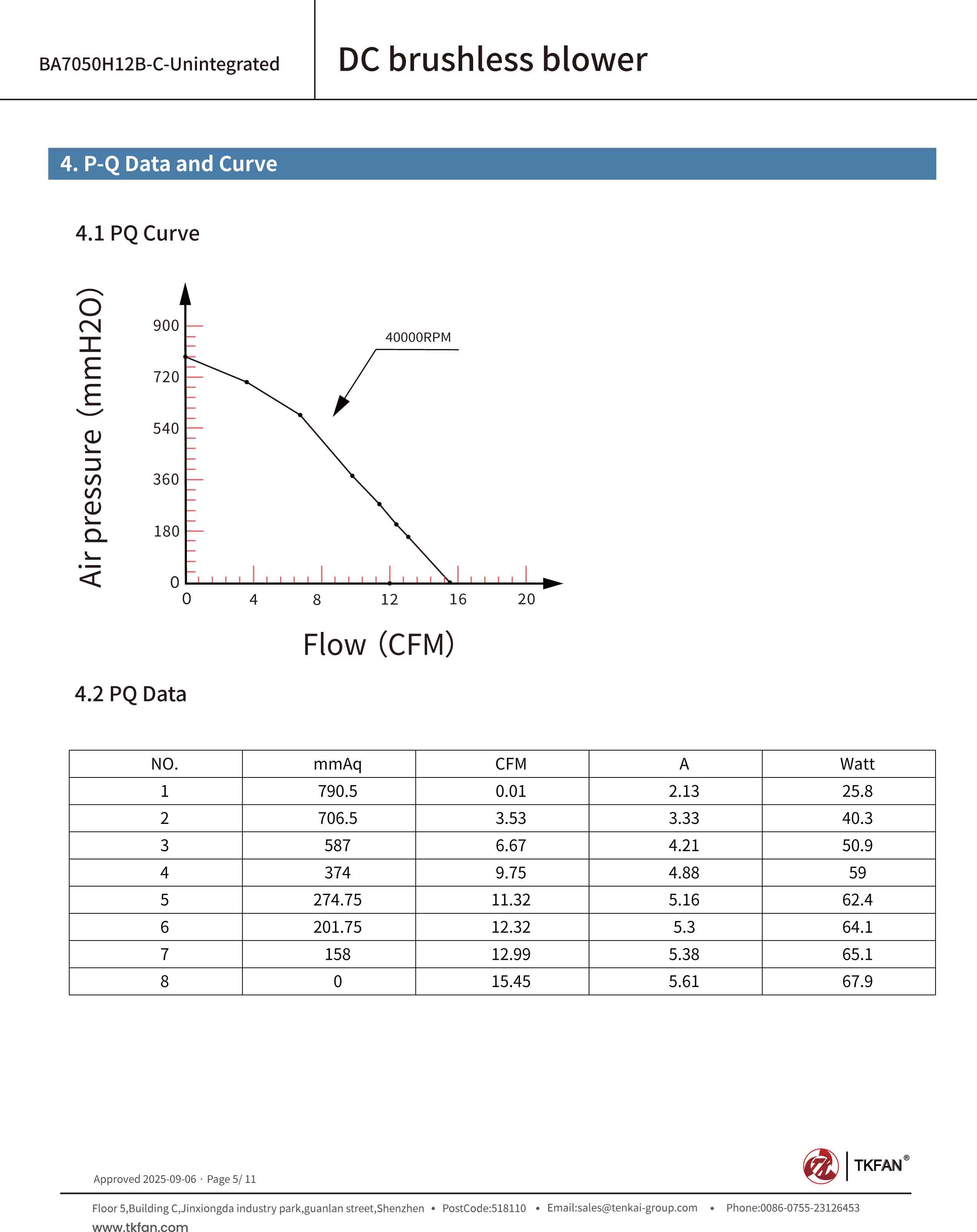

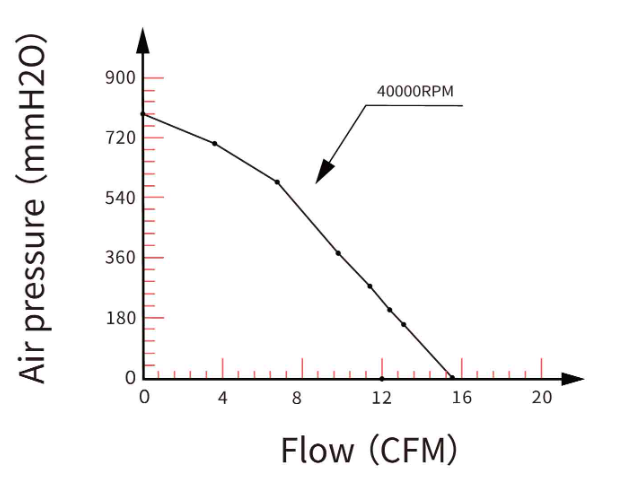

12V Blower BA7050H12B-C (Unintegrated ) P-Q Curve
The Pressure-Flow (P-Q) curve illustrates the comprehensive aerodynamic performance characteristics of the 12V Blower BA7050H12B-C (Unintegrated). It demonstrates the relationship between static pressure and airflow rate across various operational speeds, enabling engineers to accurately evaluate performance metrics, determine optimal operating points, and match the blower's output to specific cooling or ventilation system requirements.
 P-Q Curve.png "12V Blower BA7050H12B-C (Unintegrated ) P-Q Curve.png")
