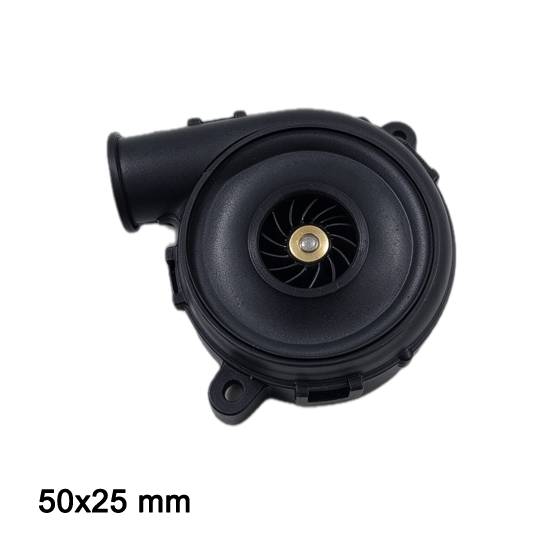

BA5025H12B-A 12V Blower Fan Front View Air Intake 50x25mm.png

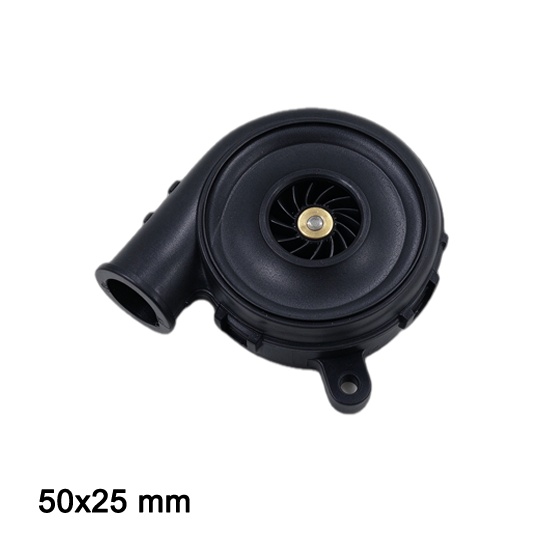

BA5025H12B-A 50x25mm Centrifugal Cooling Fan Air Outlet.png

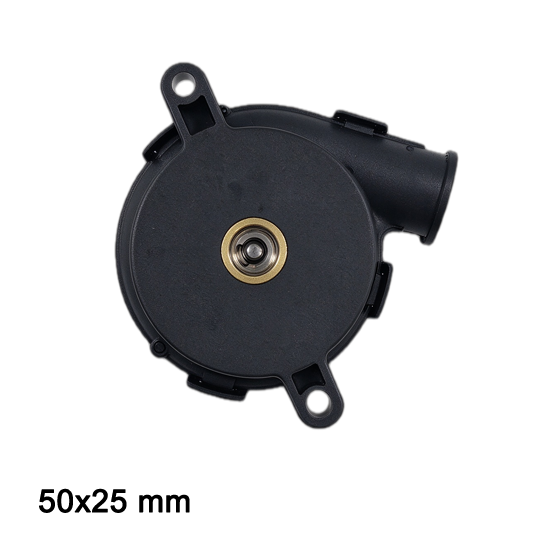

BA5025H12B-A 12V DC Blower Fan Back View Motor Bearing.png

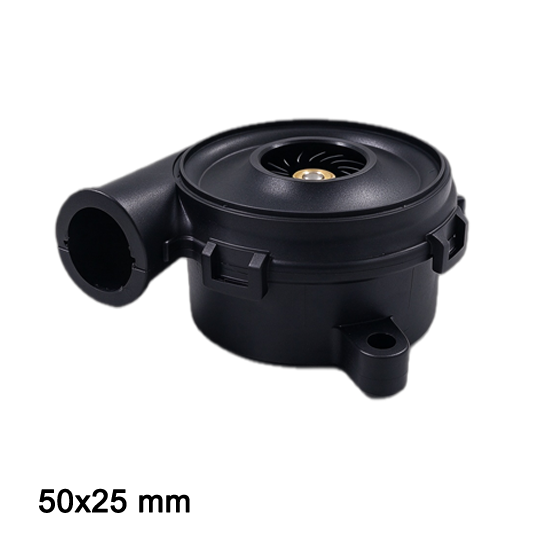

Air Blower 12V BA5025H12B-A .png
BA5025H12B-A 12V Blower Fan Front View Air Intake 50x25mm.png
BA5025H12B-A 50x25mm Centrifugal Cooling Fan Air Outlet.png
BA5025H12B-A 12V DC Blower Fan Back View Motor Bearing.png
Air Blower 12V BA5025H12B-A .png

12V Air Blower BA5025H12B-A

Voltage 12V
37000rpm/min
Max 10.5 cfm,4.9 kpa

Stable 12V DC Operating Voltage

It supports standard 12V DC power input for steady daily operation. The power consumption is controlled at a low level to save energy. Strong voltage tolerance reduces abnormal running risks.

High Air Pressure Efficient Heat Dissipation

Powerful wind pressure forms fast air circulation inside devices. It rapidly takes away excessive heat and lowers internal temperature. Effectively prevent aging and damage caused by overheating.

Durable Brushless Motor Core

Built-in high-performance brushless motor ensures smooth rotation. Low friction wear greatly extend the overall service life. The blower runs quietly without harsh operating noise.

Wide Applicability for Multiple Scenarios

It matches well with projector, power supply and precision instruments. Stable cooling performance adapts different working environments. Reliable quality satisfies diversified industrial use demands.

Technical Specifications

ModelBA5025H12B-A
Size54.5*51*25 mm
Operating Voltage12 VDC
Rated Current2.3 Amp
Rated Speed37000 RPM
Maximum Flow Rate10.5 CFM
Maximum Static Pressure4.9 kPa
structure drawing of 12V Air Blower BA5025H12B-A.png

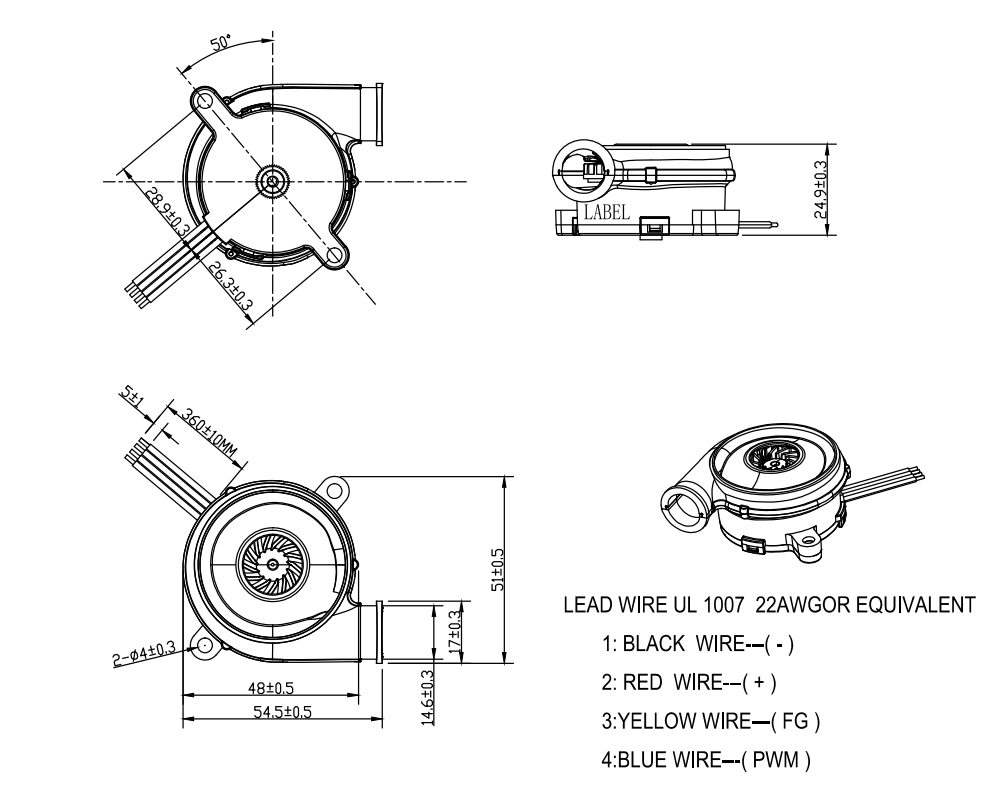

12V Air Blower BA5025H12B-A dimensions drawing

This detailed mechanical dimension drawing outlines the precise physical geometry, mounting layout, and essential spatial clearances of the 12V DC air blower model BA5025H12B-A. Engineered with a compact footprint and integrated driver configuration, it provides engineers with accurate structural specifications to ensure seamless physical installation, secure housing alignment, and optimal space optimization within portable medical devices, analytical instrumentation, and tight electronic cooling compartments.

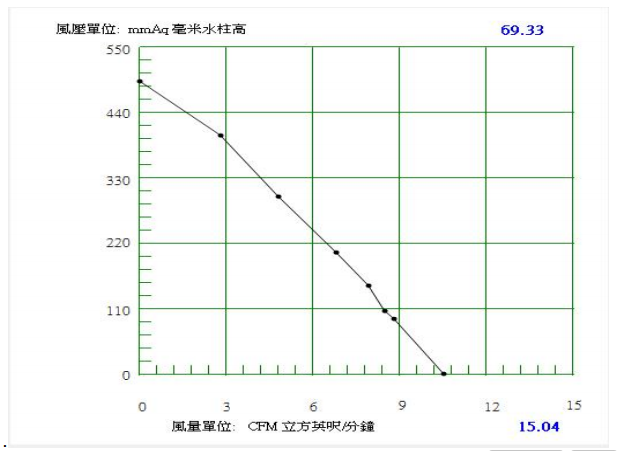

12V Air Blower BA5025H12B-A PQ curve

The Pressure-Flow (P-Q) performance curve characterizes the aerodynamic efficiency, static pressure capabilities, and airflow output dynamics of the BA5025H12B-A 12V centrifugal blower across various operational loads. It clearly illustrates the relationship between static pressure and airflow delivery under different back-pressure resistances, empowering design engineers to accurately assess pneumatic performance, determine optimal operating points, and match the blower's capabilities to specific system airflow and pressure requirements.

PQ curve for 12V Air Blower BA5025H12B-A.png

Product Overview: Demonstration of the BA5025H12B 12V DC air blower featuring an integrated driver, compact design, and high efficiency for versatile industrial and medical cooling applications.
