12V Air Blower BA5010L12B-B
Voltage 12V
3500rpm/min
Max 1.91 cfm,0.03 kpa
Request a Sample
Download Datasheet
Technical Specifications

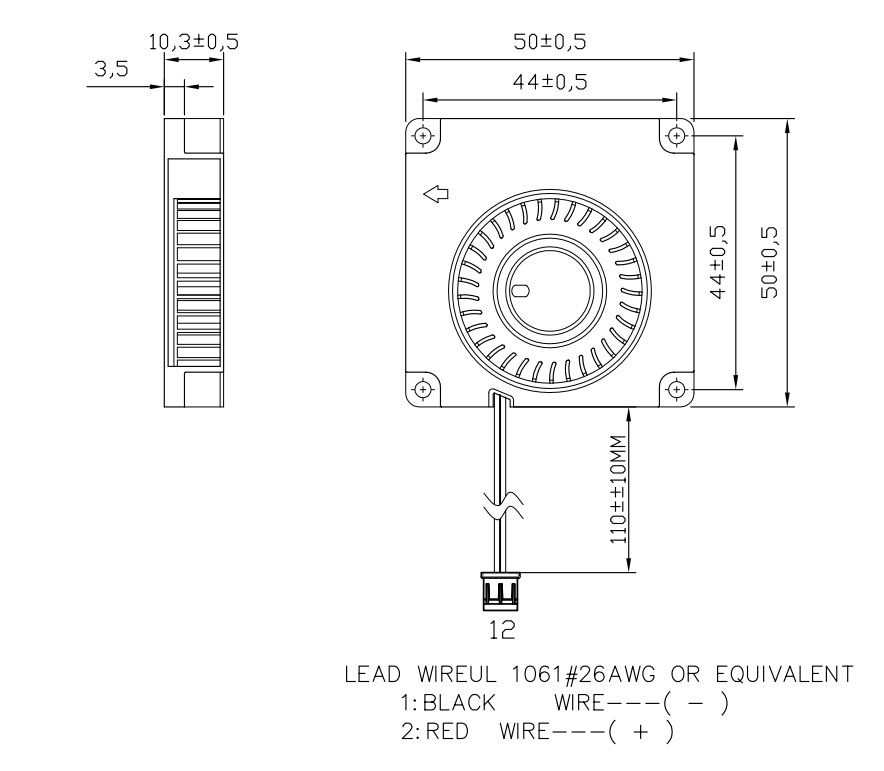

12V Air Blower BA5010L12B-B Dimensions Drawing
Below is the detailed dimensional drawing of the 12V Air Blower BA5010L12B-B. This technical schematic illustrates the precise physical specifications, mounting hole locations, and structural dimensions to assist in your system integration and installation design.
Technical Specifications & Performance Parameters
Explore the detailed performance specifications for the BA5010 series blowers. The table below outlines key operational parameters including rated voltage, operating range, current, power consumption, speed, air flow, static pressure, and noise levels across various standard models.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | |
| BA5010LL05X | BY | 5 | 3.6~6.8 | 0.03 | 0.15 | 2500 | 0.037 | 1.3 | 1.5 | 0.059 | 21.2 |
| BA5010L05X | 5 | 3.6~6.8 | 0.06 | 0.3 | 3500 | 0.051 | 1.8 | 3.4 | 0.134 | 24.6 | |
| BA5010M05X | 5 | 3.6~6.8 | 0.06 | 0.3 | 4000 | 0.057 | 2.0 | 3.6 | 0.142 | 25.2 | |
| BA5010VM05X | 5 | 3.6~6.8 | 0.11 | 0.55 | 4500 | 0.065 | 2.3 | 5.6 | 0.221 | 27.0 | |
| BA5010H05X | 5 | 3.6~6.8 | 0.11 | 0.55 | 5000 | 0.071 | 2.5 | 6.1 | 0.240 | 28.9 | |
| BA5010HH05X | 5 | 3.6~6.8 | 0.14 | 0.7 | 5500 | 0.076 | 2.7 | 7.5 | 0.295 | 30.9 | |
| BA5010VH05X | 5 | 3.6~6.8 | 0.23 | 1.15 | 6000 | 0.083 | 2.9 | 9.4 | 0.370 | 32.1 | |
| BA5010HV05X | 5 | 3.6~6.8 | 0.24 | 1.2 | 6500 | 0.093 | 3.3 | 11.4 | 0.449 | 33.7 | |
| BA5010LL12X | 12 | 7.5~13.5 | 0.02 | 0.24 | 2500 | 0.037 | 1.3 | 1.5 | 0.059 | 21.2 | |
| BA5010L12X | 12 | 7.5~13.5 | 0.03 | 0.36 | 3500 | 0.051 | 1.8 | 3.4 | 0.134 | 24.6 | |
| BA5010M12X | 12 | 7.5~13.5 | 0.04 | 0.48 | 4000 | 0.057 | 2.0 | 3.6 | 0.142 | 25.2 | |
