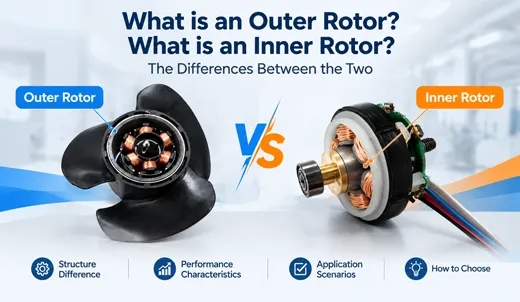

What are external-rotor motors and internal-rotor motors, and what are the differences between them?
In modern motion control and air-moving applications, choosing between brushless DC (BLDC) motor topologies is a foundational engineering decision. Brushless DC electric motors have fundamentally reshaped modern thermal management, HVAC systems, medical devices, automotive sensors, and industrial automation. At the absolute core of BLDC engineering lies a pivotal architectural decision: whether to specify internal-rotor motors (in-runners) or external-rotor motors (out-runners, also referred to as aexternal-rotor motors in specialized structural engineering documentation).
Both topologies eliminate the mechanical brushes and commutators found in legacy brushed DC units, substituting them with electronic switching and permanent magnet rotors. However, their spatial geometry, mass distribution, torque generation mechanisms, acoustic footprints, and thermal pathways are fundamentally distinct. Selecting the wrong motor architecture can lead to suboptimal dynamic performance, acoustic resonance issues, elevated operating temperatures, premature bearing failure, and unnecessary power consumption.
This technical guide evaluates the mechanics, thermal behavior, dynamic response, integration strategies, and practical application parameters of internal-rotor motors and external-rotor motors. It also features real-world implementation insights from TKFAN, a leading global manufacturer specializing in high-performance DC cooling fans, high-pressure blowers, and custom BLDC motor actuation solutions.
1. Understanding Internal-Rotor Motors (In-Runners)
An internal-rotor motor—frequently referred to as an in-runner—features a classical electromagnetic layout where the permanent magnet rotor assembly resides directly at the central axis, rotating entirely within a stationary, outer stator core wrapped with copper windings.
The outer housing of the motor holds the laminated stator steel and copper coils firmly in place. Shaft power is transmitted outward from the center, with impellers, fan blades, or mechanical gears attached directly to an extending output shaft. Because the rotating mass (consisting of the shaft, iron core, and permanent magnets) is kept physically compact and tightly clustered around the central axis of rotation, the moment of inertia is exceptionally small.
Key Takeaway: Low moment of inertia governs this architecture. Because the radius of the spinning mass is minimized, internal-rotor motors exhibit remarkably low rotational inertia.
This low rotational inertia gives internal-rotor motors world-class dynamic responsiveness. They can accelerate, decelerate, and execute high-frequency speed modulation with minimal torque lag. Consequently, in-runner BLDC designs are the preferred standard for high-speed, compact micro-blowers, high-pressure medical turbines, and precision sampling equipment.
In-runners routinely achieve rotational speeds ranging from 15,000 RPM in standard miniature blowers to over 100,000 RPM in highly specialized, custom-engineered medical CPAP and ventilator systems. Engineering teams at TKFAN optimize internal-rotor motor assemblies by employing high-grade NdFeB (Neodymium Iron Boron) magnets, precision dynamic balancing, and real-time electronic drive temperature monitoring to sustain extreme velocities without thermal breakdown.
Primary Structural Characteristics of Internal-Rotor Motors
- Centralized Rotating Assembly: The permanent magnet rotor turns within a surrounding, stationary stator.
- External Mechanical Coupling: Power is delivered via an extending shaft; blades or impellers mount externally to the motor body.
- Ultra-Low Rotational Inertia: Enables rapid dynamic speed changes, fast transient response, and precision closed-loop control.
- High Speed Capacity: Exceptional RPM capability suitable for ultra-high-pressure blower systems.
- Stator-to-Housing Heat Dissipation: Primary heat is generated in the stationary outer stator, transferring heat outward via conduction to the chassis or external housing.

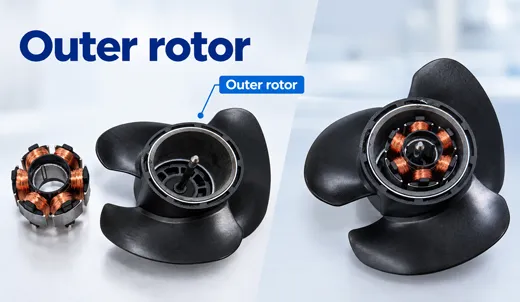

2. Understanding External-Rotor Motors (Out-Runners)
An external-rotor motor—commonly known as an out-runner or aexternal-rotor motors—inverts the classic internal motor geometry. In this design, the electromagnetic stator core and copper windings are stationary at the central axis, fixed around a non-rotating shaft mount. The permanent magnet rotor forms the outer cylindrical shell of the motor, spinning around the central, fixed interior.
In air-moving systems—such as axial cooling fans, duct ventilation fans, and centrifugal blowers—fan blades or impellers can be molded or pressed directly onto the exterior rotor shell. This integrates the drive unit and the air-moving impeller into a single, compact mechanical assembly. This direct integration eliminates external driveshafts and secondary mounting couplers, substantially reducing axial package depth.
Because the magnetic steel shell and heavy permanent magnets spin at a considerable radial distance from the center line, external-rotor motors inherently possess a large moment of inertia. This high inertia acts as an electromechanical flywheel. While it resists instantaneous acceleration, it provides exceptional velocity stability during operational disturbances. If system backpressure fluctuates—such as when an air filter accumulates dust—the flywheel effect of the external rotor prevents abrupt speed drops and dampens acoustic frequency chatter.
Furthermore, because the rotating outer shell of aexternal-rotor motors continuously spins in direct contact with ambient or drawn air, the rotor magnets receive active rotational air-cooling. However, because the heat-generating copper stator windings are enclosed deep within the rotor cup, thermal management requires meticulous internal airflow routing and high-grade insulation materials. TKFAN utilizes advanced sine-wave BLDC drive algorithms, optimized air gaps, and custom bionic blade integration to mitigate internal stator heat build-up in all out-runner product lines.
Primary Structural Characteristics of External-Rotor Motors
- Inverted Rotating Architecture: The outer magnet-lined shell rotates around an inner stationary stator core.
- Direct Impeller Integration: Fan blades integrate directly onto the rotating outer rotor shell, eliminating long driveshafts.
- High Rotational Inertia: Acts as an electromechanical flywheel, maintaining steady RPM under varying static pressure load conditions.
- Compact Axial Depth: Ideal for space-constrained enclosures requiring thin-profile cooling assemblies.
- Direct Rotor Cooling: External rotating shell benefits from ambient convection, keeping permanent magnets within safe operational temperatures.
3. Core Technical Differences: Internal-Rotor vs External-Rotor Motors
Selecting between an internal-rotor motor and an external-rotor motor requires balancing mechanical structure, thermal performance, dynamic behavior, and acoustic characteristics. The table below outlines the primary technical contrasts between these two BLDC architectures.
| Performance Metric | Internal-Rotor Motor (In-Runner) | External-Rotor Motor (Out-Runner / Aexternal-Rotor) |
|---|---|---|
| Mechanical Layout | Rotor spins inside stationary outer stator; power delivered via extending shaft. | Stator fixed at center; outer magnet shell spins around interior stator core. |
| Moment of Inertia | Very Low (Mass concentrated close to central axis). | High (Mass distributed at a wide rotational radius). |
| Dynamic Speed Response | Rapid acceleration/deceleration; instantaneous pressure and flow adjustments. | Slower transient response; superior steady-state velocity stability under varying resistance. |
| Maximum Velocity (RPM) | Extremely High (15,000 RPM to 100,000+ RPM in specialized micro-blowers). | Moderate to High (Limited by centrifugal stresses on the outer rotating shell). |
| Low-Speed Torque Output | Lower relative torque per volume at low RPM; excels in ultra-high-speed regimes. | Higher Torque Density at low-to-medium RPM due to larger radius moment arm. |
| Thermal Management Pathway | Stator heat dissipates via static outer housing; internal rotor relies on conduction. | Rotor magnets cooled directly by air; internal stationary stator heat requires engineered ventilation. |
| Axial Profile & Integration | Longer axial length; impeller mounts on extending shaft outside motor body. | Ultra-Compact Axial Depth; fan blades mount directly onto rotating rotor cup. |
| Acoustic Behavior | Requires sine-wave drive tuning to dampen commutation harmonics at high RPM. | Inherent flywheel effect smooths torque ripple, offering stable acoustics in steady state. |
| Typical TKFAN Solutions | Medical CPAP blowers, high-pressure samplers, ADAS sensor cleaning units. | Cabinet cooling fans, inline duct ventilation, heat pumps, HVAC blowers. |
4. Impact on System-Level Performance
The choice of BLDC motor topology directly affects overall aerodynamic, acoustic, and thermal performance across the entire system. System designers must evaluate how motor mechanics interact with system backpressure, air density, operational duty cycles, and noise limits.
P-Q Curve and Operational Stability
The Pressure-Quantity (P-Q) curve describes how a fan or blower behaves as system resistance (static pressure) changes. Internal-rotor motors are optimal for applications requiring active, real-time operating point movement along the P-Q curve. For instance, in medical ventilators or automotive LiDAR cleaning systems, airflow demand switches dynamically within milliseconds. The low-inertia in-runner tracks these commands accurately via advanced closed-loop vector control.
Conversely, external-rotor motors excel in applications with predictable, steady-state P-Q conditions. In a server cabinet or HVAC heat exchanger, air filter loading increases system resistance gradually over months. The high inertia of aexternal-rotor motors stabilizes impeller rotation against turbulence and backpressure variations, ensuring smooth continuous airflow without rapid speed hunting or acoustic modulation.
Acoustic and Vibration Signatures
Noise generation in BLDC fans stems from aerodynamic turbulence, mechanical balance, and electromagnetic torque ripple. External-rotor construction dampens high-frequency switching vibration thanks to the mass inertia of the outer magnet cup, providing a quiet, smooth acoustic profile ideal for residential and office environments. Internal-rotor units spinning at high speeds require sophisticated Field-Oriented Control (FOC) sine-wave driving to eliminate high-pitched switching harmonics, a technology engineered directly into TKFAN medical-grade motor drives.
5. Application Field Guide: Matching Motor to Industry Needs
To help engineers and procurement specialists select the correct BLDC motor configuration, TKFAN has mapped real-world industrial usage scenarios to the ideal motor architecture:
Ideal Applications for Internal-Rotor Motors
- Medical Respiratory Equipment (CPAP & ICU Ventilators): Demands instantaneous pressure acceleration from zero to peak within milliseconds upon patient inhalation.
- Automotive ADAS & LiDAR Sensor Cleaning: Requires rapid high-pressure air bursts to clear rain, mud, and debris from optical surfaces.
- Precision Air Sampling & Airborne Particle Counters: Needs exact closed-loop flow control through variable-resistance sampling filters.
- High-Pressure Micro-Blowers: Suitable for compact electronics, desoldering stations, and inflatable packaging systems where space is tight and static pressure requirements are high.
Ideal Applications for External-Rotor Motors
- Telecom & Server Cabinet Cooling: Requires continuous 24/7/365 thermal dissipation with high airflow and shallow axial installation depth.
- Fresh Air Energy Recovery & HVAC Duct Ventilation: Demands low acoustic signatures, high energy efficiency, and stable air delivery against filter accumulation.
- Home Appliance Thermal Modules: Used in ovens, air fryers, and refrigerators requiring thin-profile, integrated motor-impeller modules.
- PAPR (Powered Air-Purifying Respirators): Benefits from steady, uninterrupted airflow delivery for worker safety over extended work shifts.
6. TKFAN Custom Engineering and Manufacturing Excellence
Navigating the trade-offs between internal-rotor motors and external-rotor motors requires deeply experienced manufacturing partners. TKFAN brings over 15 years of dedicated BLDC motor and aerodynamic research, providing custom OEM/ODM solutions tailored to exact client requirements.
TKFAN services cover the complete product development life cycle:
- Custom Voltage Configurations: 12V, 24V, 48V DC, and high-voltage EC solutions.
- Aerodynamic Impeller Tuning: Custom-designed axial, backward-curved, and forward-curved impellers engineered alongside the motor magnetic circuit.
- Environmental Ingress Protection: Custom IP55 to IP68 water/dustproofing treatments for harsh outdoor or automotive deployment.
- Integrated Smart Drives: FOC sine-wave control boards with PWM speed inputs, FG tachometer output, and automatic over-temperature protection.
Engineers and procurement teams can access full data sheets, dynamic 3D CAD models, and test reports by visiting https://www.tkfan.com.
7. Top 10 Technical FAQs: BLDC Motors & Air Moving Technology
Q1: Can both internal-rotor and external-rotor motors be used in centrifugal blowers?
Yes. Both configurations are widely deployed in centrifugal blowers. Internal-rotor motors are preferred for high-pressure, rapid dynamic response blowers (such as medical ventilators). External-rotor motors are used in thin-profile ventilation systems where continuous, quiet, steady-state airflow is required.
Q2: Why do external-rotor motors provide higher torque at lower speeds?
Torque is proportional to force multiplied by radius. Because the permanent magnets in an external-rotor motor are located further from the central axis of rotation, the larger rotational radius provides a greater mechanical leverage arm, producing higher torque at equivalent input power levels.
Q3: Are aexternal-rotor motors and external-rotor motors the same thing?
Yes, "aexternal-rotor" is an engineering alternative term used interchangeably with external-rotor or out-runner BLDC motor architectures in specialized structural and electrical technical literature.
Q4: How does dynamic balancing affect high-speed internal-rotor motors?
At speeds exceeding 15,000 to 100,000 RPM, even microscopic mass imbalances generate exponential centrifugal forces, leading to severe bearing wear, acoustic noise, and thermal failure. TKFAN uses two-plane dynamic balancing equipment to ensure low vibration and high reliability in high-speed in-runners.
Q5: Which motor topology is more energy-efficient for 24/7 continuous operation?
External-rotor motors generally offer higher energy efficiency in steady-state ventilation applications due to their direct-drive, integrated impeller structure, which eliminates mechanical transmission losses and reduces axial windage drag.
Q6: What causes thermal demagnetization in BLDC motors, and how is it prevented?
Thermal demagnetization occurs when permanent magnets (such as Neodymium grades) exceed their maximum operating temperature limit, permanently losing magnetic flux density. TKFAN prevents this by using high Curie-temperature magnet grades (e.g., SH or UH series), optimizing thermal dissipation channels, and incorporating automatic drive thermal foldback mechanisms.
Q7: Can TKFAN external-rotor fans operate in wet or corrosive outdoor environments?
Yes. TKFAN provides specialized environmental protection options, including vacuum conformal coating, fully potted stators, and IP68-rated sealings that allow external-rotor fans to operate reliably in high humidity, salt spray, and outdoor telecom cabinets.
Q8: How does FOC (Field-Oriented Control) improve internal-rotor motor performance?
Field-Oriented Control (FOC) applies smooth, continuous sinusoidal current vectors to the stator windings rather than sharp trapezoidal block steps. This eliminates commutation torque ripple, drastically lowers acoustic noise, and improves operational energy efficiency in high-speed in-runner motors.
Q9: Why are internal-rotor motors generally narrower in diameter than external-rotor motors?
Because the rotating mass in an in-runner is located at the innermost core, the overall outer diameter is constrained primarily by the thin stationary stator ring, enabling a slender, pencil-like profile ideal for tight radial installations.
Q10: How do I request custom P-Q curve testing or motor samples from TKFAN?
You can easily request custom performance samples, P-Q air chamber test curves, and technical consultation directly through the engineering portal at https://www.tkfan.com or by clicking the request button below.
