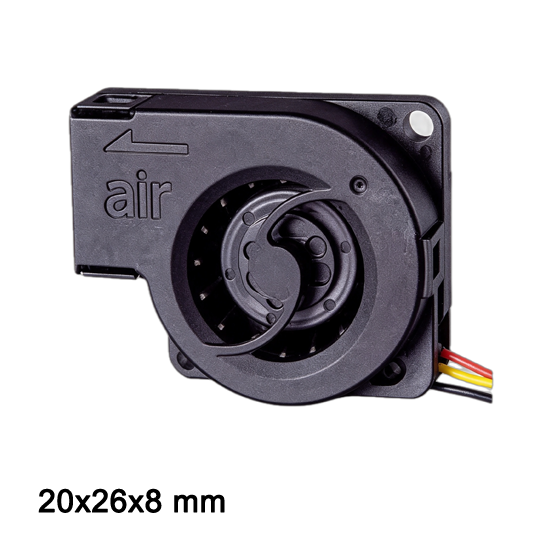

Micro blower BA2008L05X-A
Voltage 5V
9000rpm/min
Max 0.57 cfm,0.04 kpa
Request a Sample
Technical Specifications
Micro blower BA2008-A Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect micro blower for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | |
| BA2008L33X | AY | 3.3 | 2~6 | 0.03 | 0.1 | 7000 | 0.011 | 0.38 | 2.14 | 0.084 | <25 |
| BA2008L05X | 5 | 2~6 | 0.075 | 0.38 | 9000 | 0.016 | 0.57 | 4.73 | 0.186 | <35 | |
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
