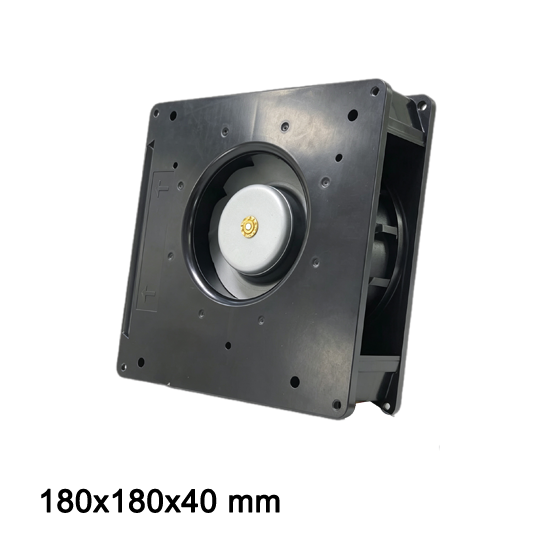

12V Air Blower BA18040H12B-A231114 (Replacement for ebmpapst RG 125-19/12N & Perfect Fry 2DT951-C)
12V Air Blower BA18040H12B-A231114 (Replacement for ebmpapst RG 125-19/12N & Perfect Fry 2DT951-C)
Voltage 12V
2500rpm/min
Max51cfm,0.2kpa
Technical Specifications
Direct Replacement Blower for ebmpapst RG 125-19/12N & Perfect Fry 2DT951-C
The BA18040H12B-A231114 is a high-performance, cost-effective direct replacement for the ebmpapst RG 125-19/12N centrifugal blower. Designed with identical electrical parameters, airflow performance, and physical dimensions, it offers seamless plug-and-play installation for maintenance and equipment repair.
Application & Commercial Kitchen Equipment Compatibility:
This 12V DC air blower is widely used in commercial food service equipment, specifically serving as the replacement blower motor inside the Perfect Fry 2DT951-C assembly (Blower Kit with dampener & hardware) for Middleby / Perfect Fry Ventless Automatic Fryers.
- Compatible Perfect Fryer Models: PFA-375, PFA-570, PFA-7200
- Function: Provides high static pressure exhaust and cooling for ventless filtration systems.
- Note: Ideal choice for technicians and distributors seeking a reliable 2DT951-C replacement fan.

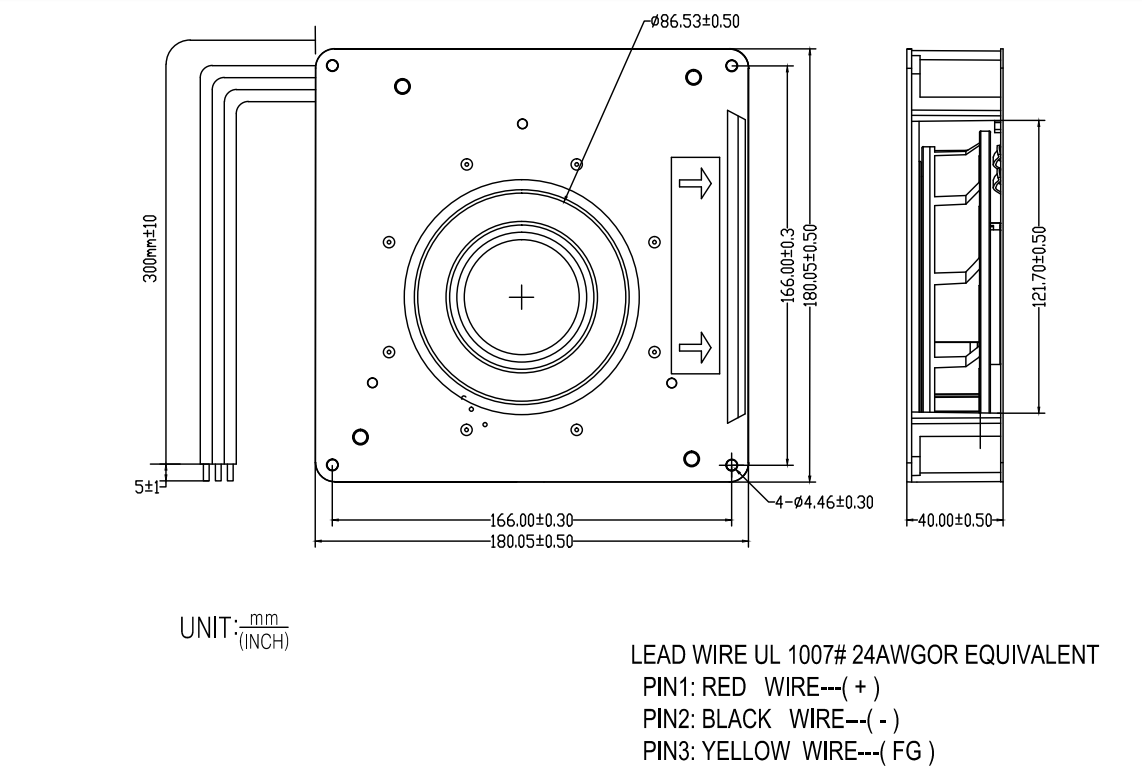

12V Air Blower BA18040H12B-A231114 Dimensions Drawing
The engineering drawing shows all precise dimensions, mounting hole locations, airflow direction, and lead wire specifications for the blower. Fully compatible with ebmpapst RG 125-19/12N mounting points.
• Precision-engineered mounting holes for secure installation.
• Standard high-temperature resistant lead wires.
• Clear markings for airflow direction and impeller rotation.

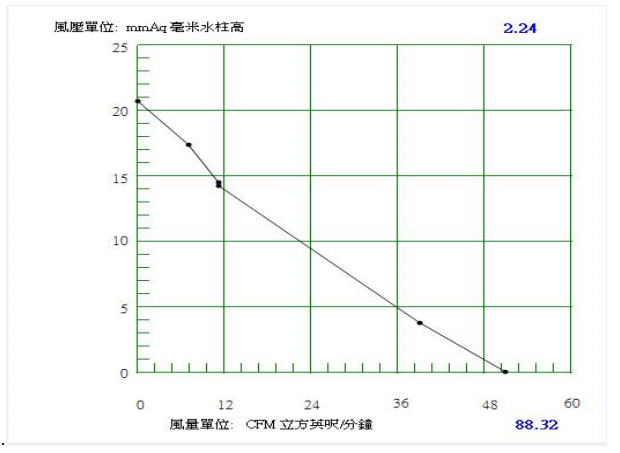

12V Air Blower BA18040H12B-A231114 P-Q Curve
Tested under standard aerodynamic test chambers, the P-Q performance curve reflects the airflow performance across various static pressure resistance conditions.
The blower delivers stable air volume and high static pressure, making it ideal for high-resistance systems such as fryers with carbon filters and exhaust ductwork.
Note: All test parameters are obtained based on standard laboratory testing conditions for model BA18040H12B-A231114.
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
