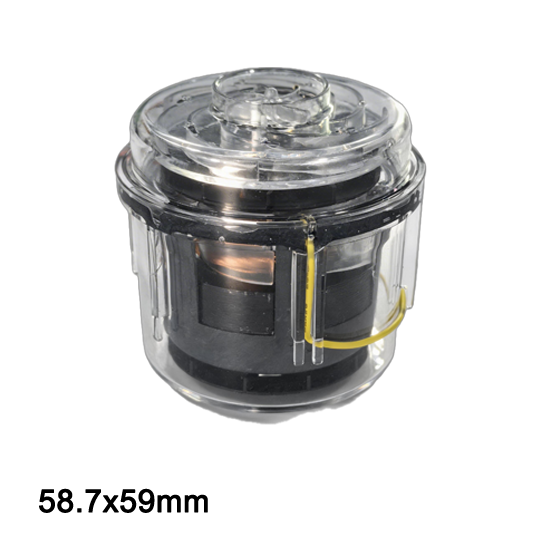

24V Cpap air blower BA5060H24B-A

Voltage 24V
31000rpm/min
Max 14 cfm,8.4 kpa

Request a Sample

Premium Quality Blower

Adopts high-performance impeller and stable motor structure, providing strong and consistent airflow to ensure stable pressure output for CPAP devices.

Ultra-low Noise Design

Optimized aerodynamic structure and precision balancing effectively reduce vibration and wind noise, creating a quiet breathing environment for comfortable sleep all night.

Perfect for CPAP Applications

Compact size, stable pressure, and low vibration make it ideal for CPAP, ventilator, and other respiratory equipment.

Safe & Energy Efficient

Low power consumption, low heat, and reliable operation, meeting the safety requirements of medical auxiliary equipment.

Technical Specifications

ModelBA5060H24B-A
Size58.7*59 mm
Rated voltage24 VDC
Rated Current4.31 Amp
Rated Speed31000 RPM
Maximum Flow Rate14.0 CFM
Maximum Static Pressure8.4 Kpa

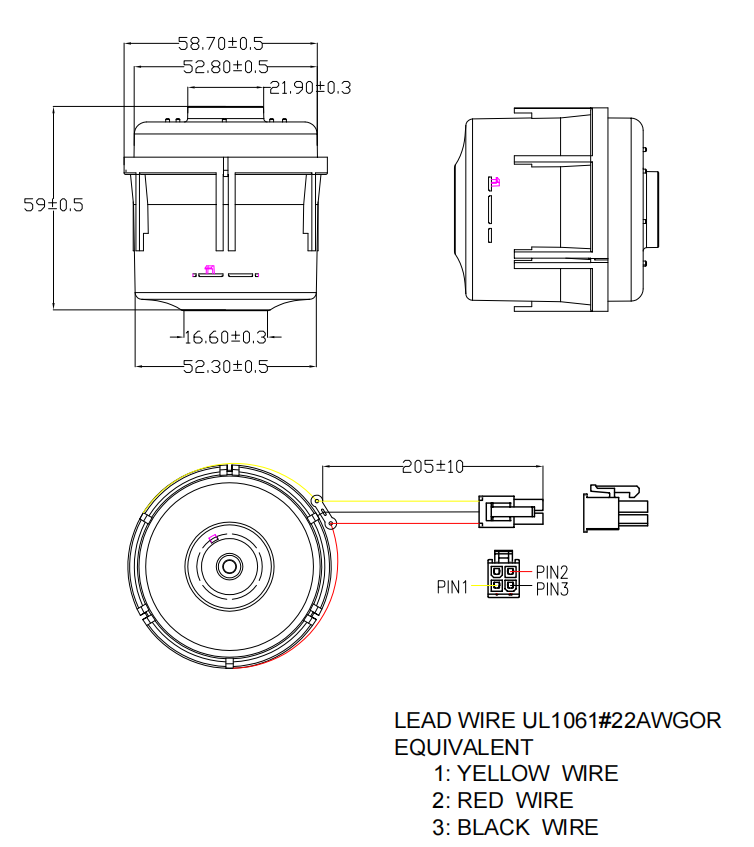

structure drawing of BA5060H24B-A

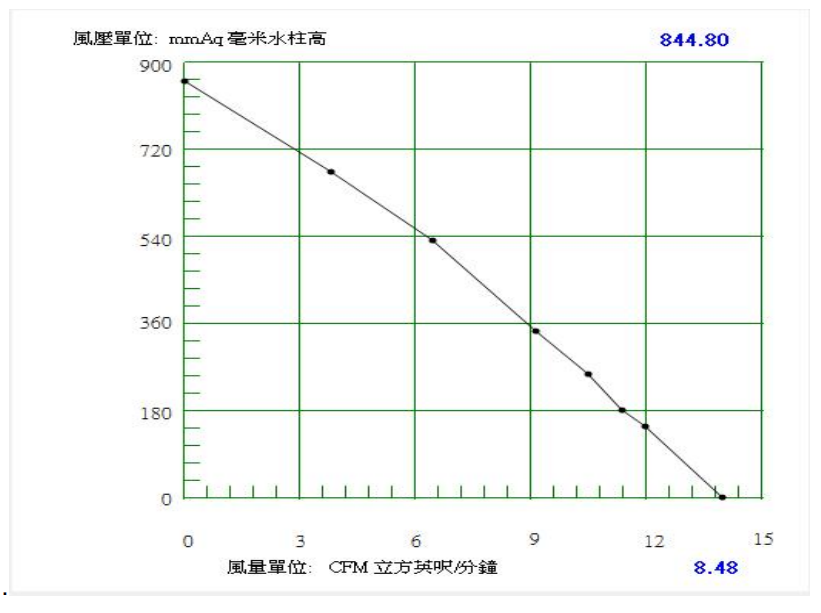

PQ curve for BA5060H24B-A

Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
