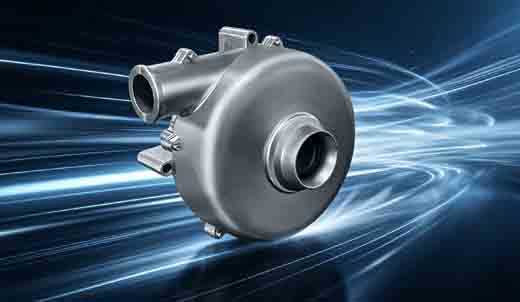

Compact High-Pressure Blower for Kitchen Fryers
With the continuous upgrading and iteration of commercial kitchen equipment and food processing machinery, compact high-pressure blowers have become an indispensable core air-supply component for devices such as kitchen fryers, air cushion machines, automated stir-fry machines, and medical cabinets. The BA8060H24B-B compact high-pressure blower—introduced by TKFAN specifically for kitchen fryers—features a compact footprint, powerful air pressure, and support for PWM speed control. It also serves as a popular choice for air cushion machines; offering multi-device compatibility, it strikes an optimal balance between practicality and cost-effectiveness, making it highly favored by manufacturers across various equipment sectors.
I. Compact Dimensions: Ideal for Embedded Installation in Kitchen Fryers
As a compact high-pressure blower designed specifically for small-scale equipment, the BA8060H24B-B features a streamlined overall structure and precise, uniform dimensions. It requires no large, dedicated installation space, allowing it to be easily embedded within the internal chassis of kitchen fryers. Furthermore, it can be directly integrated as a dedicated air-supply component for air cushion machines. Its adaptable design makes it compatible with the structural layouts of a wide range of devices—equally suitable for retrofitting existing equipment or for integration into brand-new machinery. Key Dimensional Parameters (Precise Measured Values):
Overall Diameter: 97mm (Precisely measured with calipers; compact dimensions suitable for installation in small-scale equipment)
Body Thickness: 72mm (Compact design; does not occupy internal space within kitchen deep fryers)
Air Outlet Inner Diameter: 21.7mm (Compatible with deep fryer air supply ducts; ensures smooth airflow output)
Air Inlet Inner Diameter: 23.6mm (Ensures ample air intake and stable air pressure; also suitable for the inflation requirements of air cushion machines)
Core Performance: High-Pressure & Energy-Efficient—Optimized for Key Operating Conditions in Kitchen Deep Fryers
The BA8060H24B-B Compact High-Pressure Blower is specifically designed for ventilation, pressurized air supply, and grease fume extraction in kitchen deep fryers. It also accommodates other applications, such as providing inflation air for air cushion machines. Featuring robust and reliable performance with outstanding energy efficiency, this unit effectively reduces equipment energy consumption costs over the long term.
Core Performance Parameters (Measured Standards):
Rated Operating Voltage: 24V (Stable power supply; compatible with standard voltages for commercial kitchen equipment)
Rated Power: Approx. 216W (Energy-efficient and low-consumption; reduces energy usage by approximately 15% compared to similar compact high-pressure blowers)
Ultra-High Speed: 52,000 RPM (High-speed operation generates powerful airflow to meet the air pressure demands of deep fryers)
Max Airflow: 34 CFM (Ample air supply ensures effective internal air circulation within deep fryers and supports efficient inflation for air cushion machines)
Max Static Pressure: 18 kPa (Stable high-pressure output effectively extracts grease fumes and assists in temperature control within deep fryers)
Special Note: This compact high-pressure blower supports voltage customization. 12V and 220V versions can be custom-ordered to meet specific requirements, offering flexible compatibility with the power supply schemes of various equipment—such as kitchen deep fryers and air cushion machines—without the need for additional modifications, thereby reducing integration costs.
II. External Driver + Intelligent Control: Convenient Operation and Enhanced Stability
The BA8060H24B-B compact high-pressure blower features an external driver design, utilizing a split-structure configuration where the blower and driver are separate units. This design ensures clear wiring and convenient maintenance, resulting in superior operational stability. It is ideally suited for the long-term, continuous operating conditions typical of commercial kitchen deep fryers, while also meeting the intermittent operational demands required for compact high-pressure blowers used in air cushion machines.
Blower Side (3 leads, ordered by connector pinout): Black (U), Red (V), White (W)—featuring standardized wiring that minimizes the risk of connection errors.
Driver Side (4 leads): Red (Positive +), Black (Negative -), Blue (PWM Speed Control), Yellow (FG Speed Feedback).
Advantages of Intelligent Control (Tailored to meet smart equipment requirements):
PWM Stepless Speed Control: Supports standard 5V/25kHz PWM signal input, allowing for precise adjustment of the blower's speed based on varying operating conditions (such as frying temperature and smoke density) within a kitchen deep fryer. This ensures precise airflow control, leading to energy savings and reduced power consumption; it also effectively accommodates the varying inflation pressure requirements of air cushion machines.
FG Speed Feedback: The yellow FG lead outputs a square-wave signal proportional to the blower's rotational speed. A host controller can monitor this signal frequency in real-time to accurately read the blower's actual RPM. This facilitates intelligent equipment monitoring and automated fault self-diagnosis, thereby reducing maintenance costs and enhancing the overall level of intelligence within the host device.
III. Versatile Application Across Multiple Scenarios: Balancing Practicality with Universal Compatibility
This compact high-pressure blower serves not only as a dedicated component for commercial kitchen deep fryers but, thanks to its compact dimensions, powerful air pressure, and flexible control capabilities, is also widely adaptable to a diverse range of applications. Boasting exceptional versatility, it stands as a standard model—and a popular choice—among the compact high-pressure blowers currently available on the market for use in air cushion machines. Key Application Scenarios:
Kitchen Equipment: Commercial deep fryers, automated stir-fry machines (air supply, ventilation, fume extraction/diversion)
Air Cushion Equipment: Various small-scale air cushion machines (inflation/air supply, stable air pressure)
Medical Equipment: Medical cabinets/enclosures (ventilation and air exchange to ensure a clean environment)
Other Scenarios: Automated air supply systems, small-scale high-pressure air delivery equipment, etc.
IV. TKFAN Quality Assurance & One-Stop Support Services
TKFAN has dedicated years to the R&D and manufacturing of small-scale high-pressure blowers, establishing deep expertise in the field of equipment integration. The BA8060H24B-B—our flagship model—is produced under rigorous process controls; its core components are crafted from premium materials, ensuring exceptional wear resistance, durability, superior dynamic balance, and low operational noise levels. This makes it ideally suited for the long-term, continuous operation of equipment such as kitchen deep fryers and air cushion machines, offering a low failure rate and an extended service life.
We provide comprehensive, personalized services: in addition to voltage customization, we can tailor interface specifications, lead wire lengths, control methods, and other parameters to meet specific client requirements. We offer a one-stop solution to fulfill the integration needs of manufacturers in the kitchen equipment, air cushion machine, and medical device sectors, thereby helping our clients enhance the competitive edge of their products.
The TKFAN BA8060H224B-B—a small-scale high-pressure blower designed for kitchen deep fryers—strikes a perfect balance between high pressure, energy efficiency, compactness, and intelligent functionality. It serves as an ideal component for kitchen deep fryers as well as a premium high-pressure blower solution for air cushion machines. Versatile enough to adapt to multiple application scenarios and fully customizable, this product is ready to meet your needs. We warmly welcome inquiries and opportunities for collaboration from clients across all industries!
Product Performance Demo Video: A Visual Insight into Capabilities
