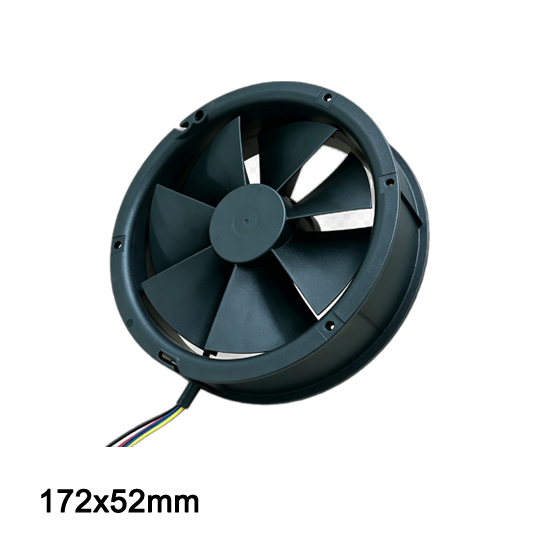

Reversiable dc fan DA17251L12B-A

Voltage 12V
2150rpm/min

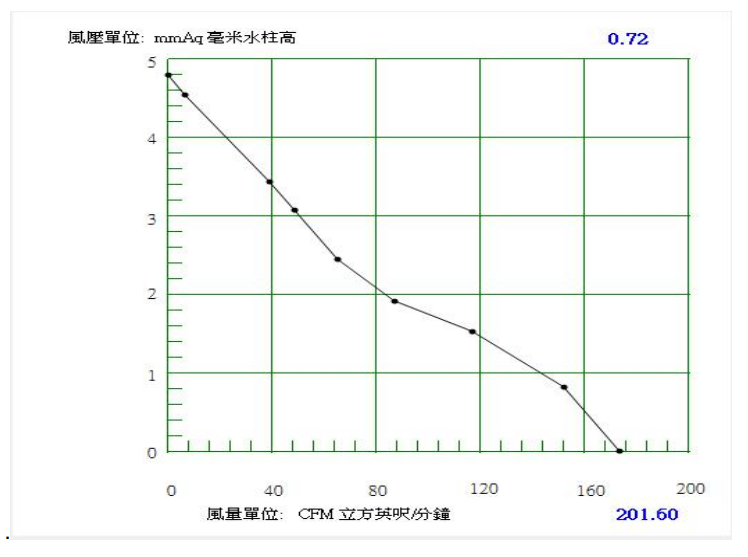

Max 173.2 cfm,0.05 kpa

Request a Sample

DA17251L12B-A Reversible DC Fan | Strong Bi-Directional Airflow

Features powerful bidirectional reversible airflow and high static pressure, ideal for automotive sensor cleaning and cooling systems.

DA17251L12B-A Reversible DC Fan | Stable 12V DC Operation

Reliable 12V rated voltage with low power consumption, supports stable continuous operation in vehicle harsh environments.

DA17251L12B-A Reversible DC Fan | Long Lifespan Ball Bearing Design

Adopts high-grade ball bearing structure with excellent vibration resistance and ultra-long service working life.

DA17251L12B-A Reversible DC Fan | Optimized Low Noise Performance

Precise internal airflow structure optimization achieves quiet operation while maintaining strong wind output capacity.

Technical Specifications

ModelDA17251L12B-A

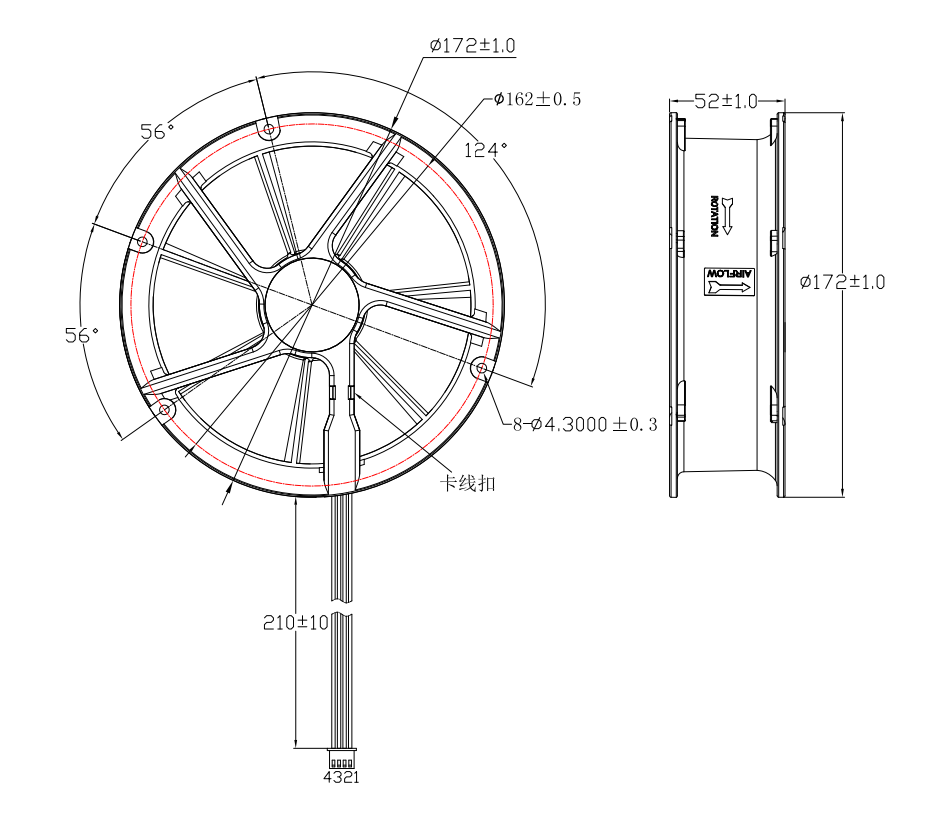

Size172*52mm
Operating Voltage12 VDC
Rated Current0.58 Amp
Rated Speed2150 RPM
Maximum Flow Rate173.2 CFM
Maximum Static Pressure0.05 kPa




Video Showcase


Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
