DA14038H12B-B reversiable dc fan

Voltage 12V
140*38mm
2800rpm/min
Reversible axial flow cooling circular fan

Request a Sample

DA14038H12B-B Reversible DC Fan | Powerful Bi-Directional Airflow

Adopts bidirectional reversible airflow design with high static pressure, perfectly suitable for automotive sensor cleaning systems.

DA14038H12B-B Reversible DC Fan | Stable 12V DC Power Supply

Reliable 12V operating voltage with low power loss, ensures steady continuous operation under vehicle operating conditions.

DA14038H12B-B Reversible DC Fan | High Durability Ball Bearing Structure

Premium dual ball bearing with strong vibration resistance and extended service life for harsh automotive environments.

DA14038H12B-B Reversible DC Fan | Excellent Sealing & Dustproof Performance

Superior airtight sealing design, effective against dust, moisture and foreign debris for long-term stable operation.

Technical Specifications

ModelDA14038H12B-B

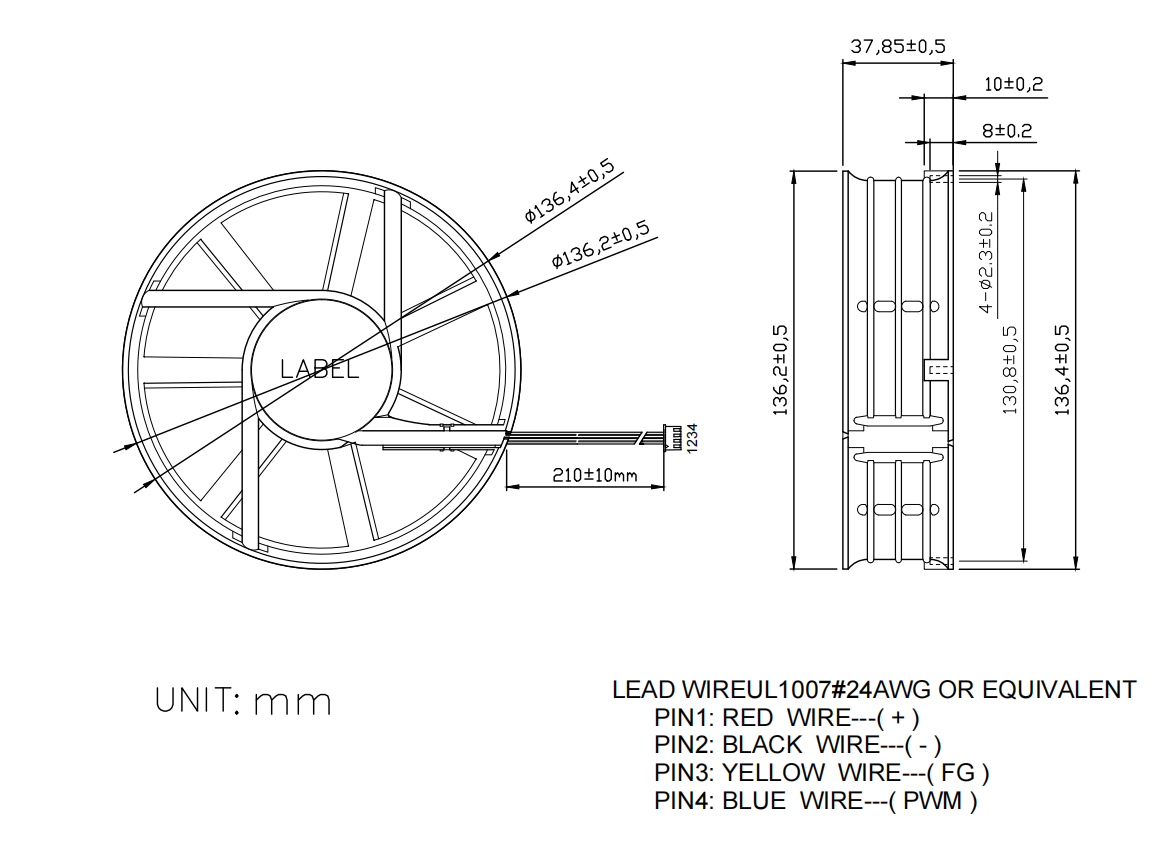

Size140*38mm
Operating Voltage12 VDC
Rated Current0.5 Amp
Rated Speed2800 RPM
Maximum Flow Rate148.1 CFM

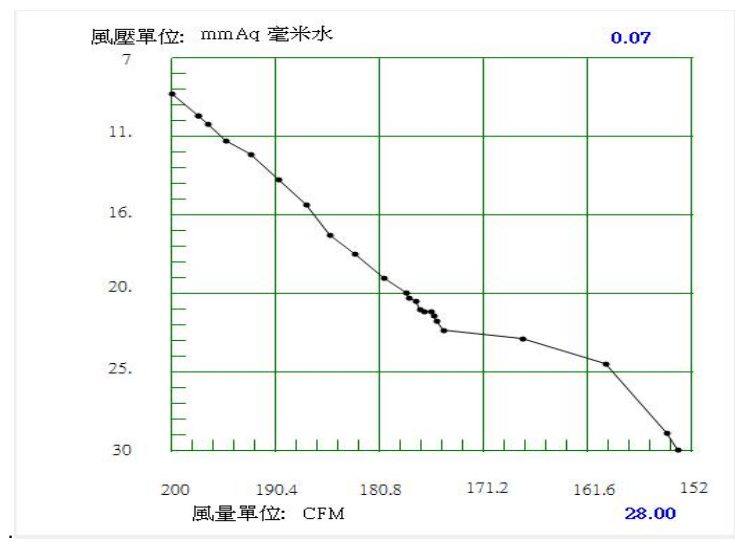

Maximum Static Pressure6.3 mmH2O



Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
