DA13628H12B-A reversiable dc fan

Voltage 12V
136*132*28mm
3100rpm/min
Reversible axial flow cooling circular fan

Request a Sample

DA13628H12B-A Reversible DC Fan | Bi-Directional Stable Airflow

Dual-direction wind supply design, consistent air pressure and airflow for automotive sensor cleaning systems.

DA13628H12B-A Reversible DC Fan | 12V Wide Voltage Operation

Reliable 12V DC power supply with low power consumption and stable continuous operation in vehicle environments.

DA13628H12B-A Reversible DC Fan | High Durability Long Service Life

Premium ball bearing structure, high vibration resistance and ultra-long working lifespan for harsh working conditions.

DA13628H12B-A Reversible DC Fan | Excellent Dustproof & Waterproof Performance

High IP grade sealing protection, effectively resists dust, moisture and corrosion for outdoor automotive applications.

Technical Specifications

ModelDA13628H12B-A
Size136*132*28mm
Operating Voltage12 VDC
Rated Current0.12 Amp
Rated Speed3100 RPM

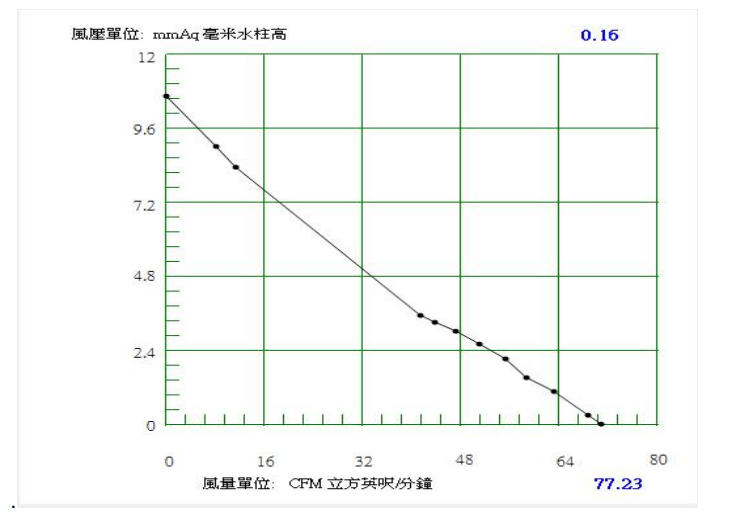

Maximum Flow Rate70.9 CFM
Maximum Static Pressure10.6 mmH2O
